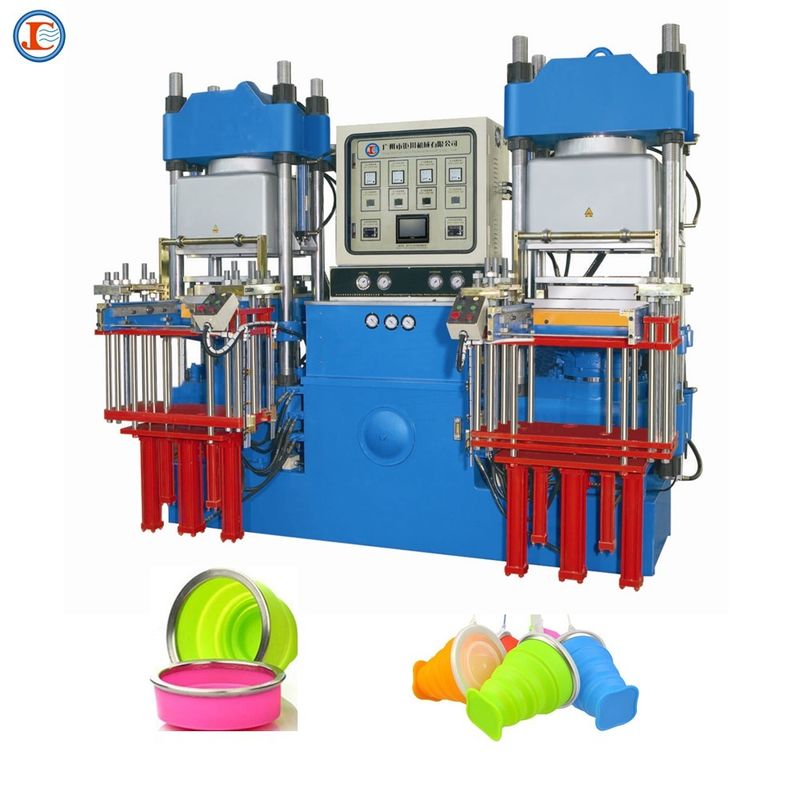

Rubber injection machine with Vacuum Compression 300 ton for rubber accessories
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | ISO9001 |
| Model Number: | JC-HF1 |
Payment & Shipping Terms:
| Price: | $28,000.00 - $36,000.00/sets |
|---|---|
| Packaging Details: | N/A |
| Supply Ability: | 1000 Set/Sets per Month injection machine |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Type: | Plate Vulcanizing Machine | Automatic: | Yes |
| Plastic Type: | Other | Injection Weight: | 7.8ton |
| Injection Rate: | Adjustable | Opening Stroke: | 300mm |
| Power: | 69KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Distance Of Tie Bar(mm): | 785*380 | Plunger Stroke(mm): | 300 |
| Upper Platen Size (mm): | 680*680 | Lower Platen Size(mm): | 700*800 |
| Port: | Guangzhou | ||
Product Description
Rubber injection machine with Vacuum Compression 300 ton for rubber accessories
Specific Characteristic:
- Vacuum capacity: able to achieve high degree of vacuum. A standard vacuum method is used to make consistently high quality products.
- Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
- Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.

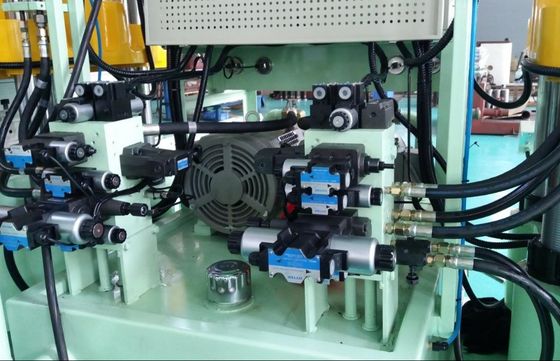

- Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
- Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.
2RT Machine motion flow:
1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.
Technical parameter:
Model | Unit | 300VF |
Clamping Force | Ton | 300 |
Upper Platen Size | mm | 680*680 |
Lower Platen Size | mm | 700*800 |
Plunger stroke | mm | 300 |
Distance of Thermo-plate | mm | 300 |
Distance of Tie bar | mm | 785*380 |
Die sinking type | 2RT-3RT-4RT-Track | |
Max Operating Pressure | Mpa | 20 |
Motor Power | hp | 10*2 |
Electric Heating Power | Kw | 24*2 |
Vacuum Pump Power | Kw | 3*2 |
Total Power | Kw | 69 |
Gross weight | Ton | 15.45 |
Dimension | mm | L3360*W2970*H2850 |

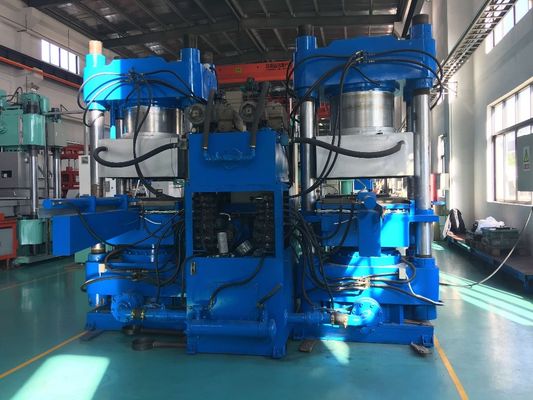

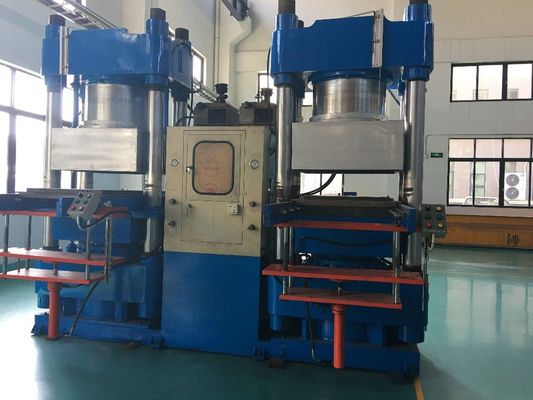

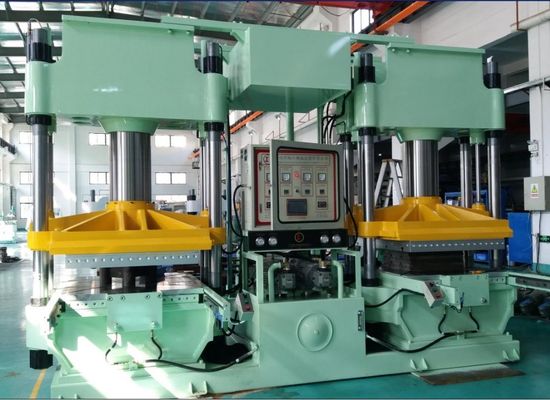

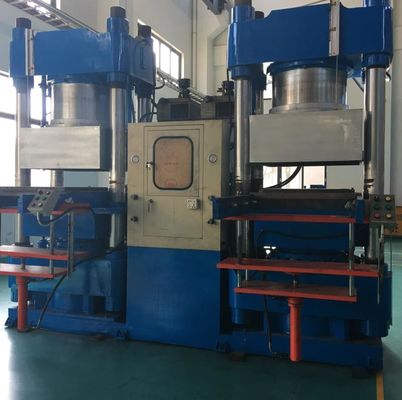

Product show:
Related product:
| |
|
Shipping and packing
Company information
Guangzhou JuChuan Machinery Co.,Ltd was established in 1997. We are mainly specializing in producing silicone/rubber injection molding machines, Vacuum compression molding machines, plate vulcanizing machine, “all-in-out” ,liquid silicone injection machine, ”first in first out” ,”first in last out”, vertical and horizontal silicone/rubber injection machine for 20 years.
We have a special company patent: Anti-collision Molding System prevent mold damage occurring form misalignment.
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
