Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case

Product Details:

Place of Origin: Guangdong, China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $14,000-$42000/sets >=1 sets
Packaging Details: shrink film paking
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 3 Years
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump Machine Type: Plate Vulcanizing Press
Voltage: 380v Weight: 11000
Warranty: 1 Year Power (kW): 51.6
Key Selling Points: Long Service Life Showroom Location: None
Applicable Industries: Manufacturing Plant Marketing Type: Ordinary Product
Port: Guangzhou

Product Description

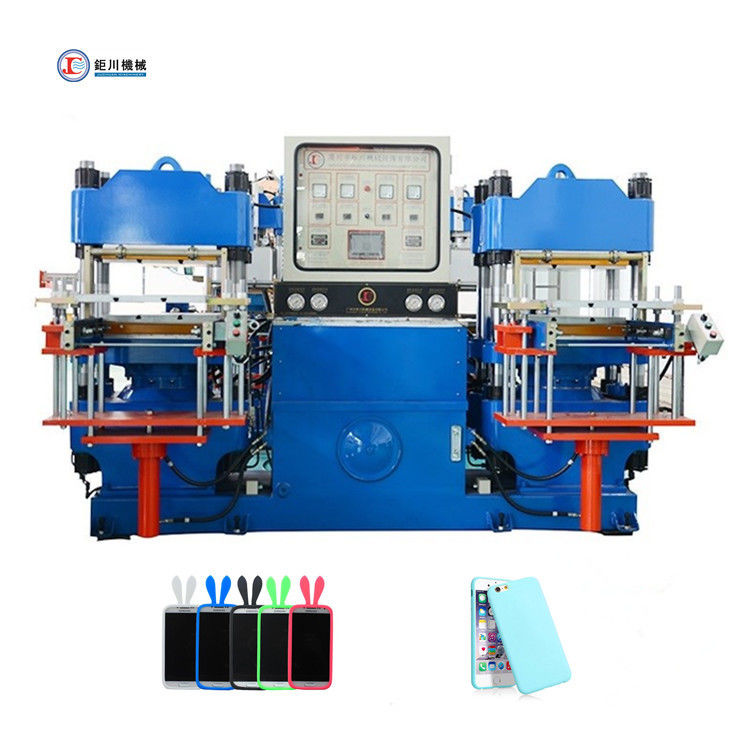

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 0



Machine Features

1. Adaptable with different demolding methods like 2RT/3RT/4RT.

2. Accurate mold-in and mold-out position to ensure no damage to the molding.

3. Dual motor design for sale and independent working of the twin station.





How to operate this machine?

Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product

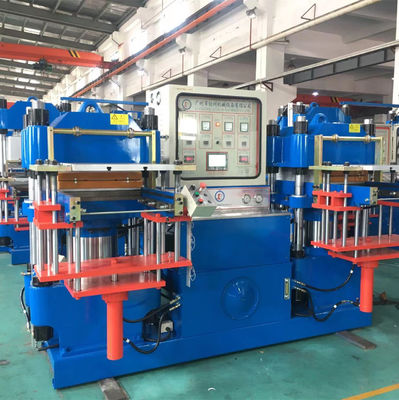

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 1

Technical parameter

Model 100HF 200HF 250HF 300HF 350HF 400HF 500HF 1200HF
Clamp Force(Ton) 100 200 250 300 350 400 500 1200
Platen Size (mm) 400*460 550*560 650*600 700*800 750*750 850*850 1000*1000 1600*1200
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ480 Φ500 Φ560 Customized
Plunger Stroke (mm) 200 250 250 300 300 300 350 350
Heating Plates Distance (mm) 200 - 300 250 - 350 250 - 350 300 - 400 300 - 400 300 - 400 350 - 450 350 - 550
Tie Bar Distance (mm) 490*230 650*320 745*310 785*380 / 940*450 1105*475 Six Tie Bars
Mold Opening Type 2RT- 3RT - 4RT - Track - Suspension
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 26.4*2 36 126
Total Power (KW) 25.4 42 45.6 63 70 74.8 47 144.5
Gross Weight (Ton) 5 7.8 11 15 / 17 13.5 28.5
Machine Size L*W*H (mm) 2500*2080*1950 2930*2350*2050 3190*2780*2230 3360*2970*2250 Customized 3660*3050*2350 1460*3600*2380 2350*5400*2950

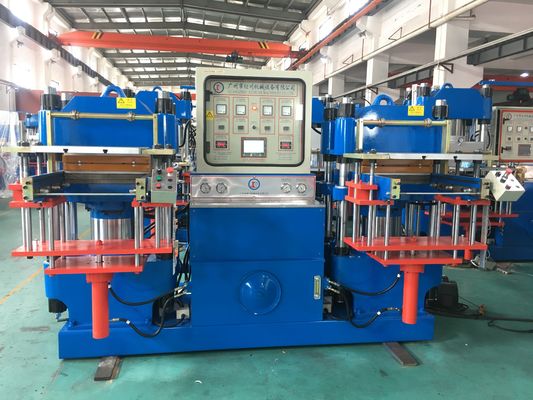

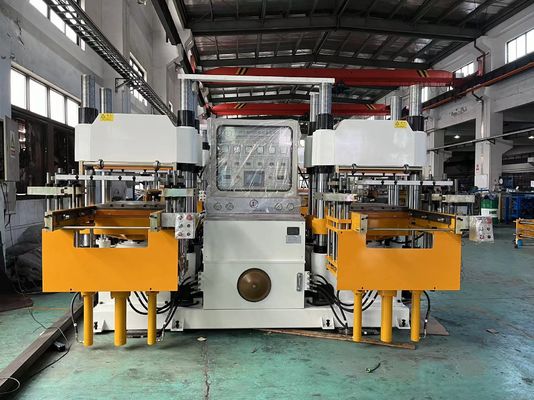

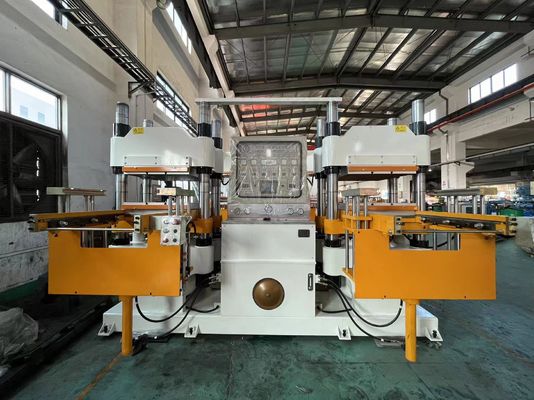

Machine Detials

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 2



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 3



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 4





Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 5





Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 6



Related product



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 7 Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 8 Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 9




Application Products



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 10



Company information



Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 11





Our Main Products

Vertical Solid Silicone Injection Molding machine



Vertical Rubber Injection Molding machine



Horizontal Silicone Injection Molding machine



Horizontal Rubber Injection Molding machine



Liquid Silicone Injection Molding machine



Vacuum compression Molding machine



Hydraulic Vulcanizing Hot Press machine



Brake Pads Brake Lining Hot Press Machine



Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 12Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 13



Trade show

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 14

Vulcanizing Curing Press Machine Silicone Product Making Machine To Make Silicone Phone Case 15

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
