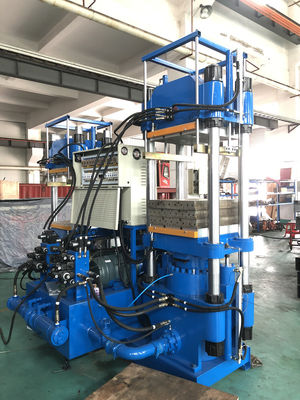

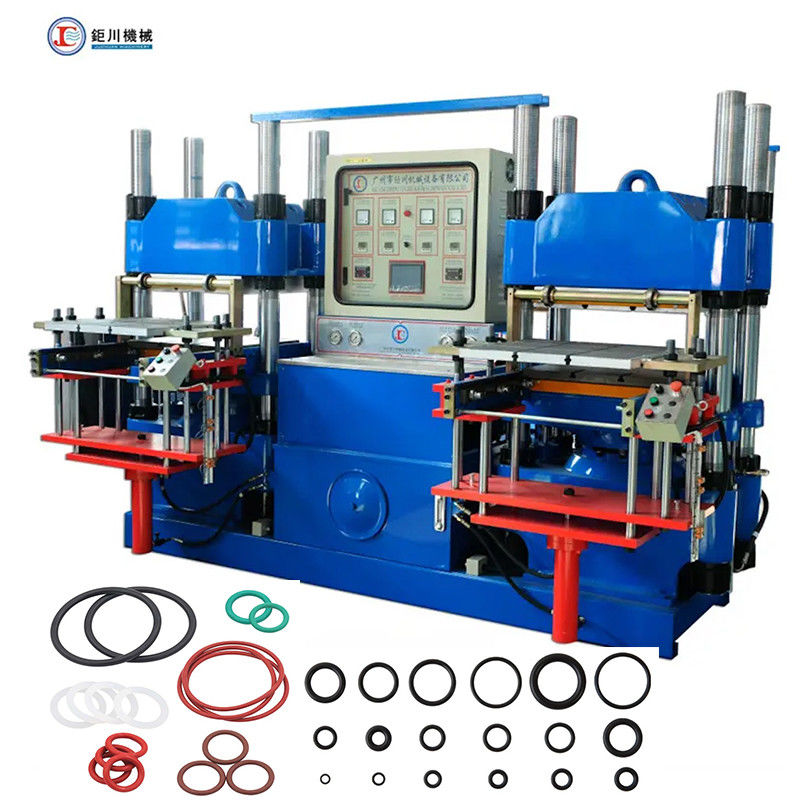

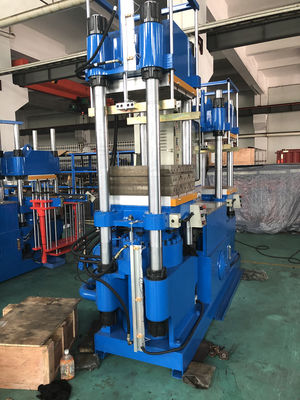

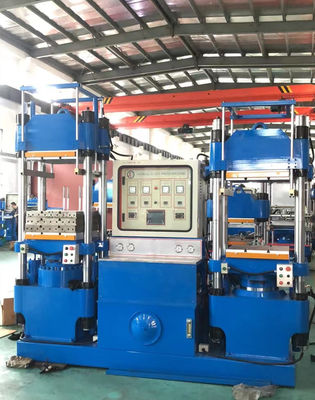

Small Rubber Press Sealing Circle Molding Rubber O Ring Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 15000 - 38000/set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 1200 | Platen Size(mm): | 400*460 - 1600*2200 |
|---|---|---|---|
| Plunger Stroke(mm): | 200 - 350 | Heating Plates Distance(mm): | 200 - 550 |
| Tie Bar Distance(mm): | 490*230 - 1105*475 | Mold Opening Type: | 2RT-3RT-4RT-Track-Suspension |
| Max. Operating Pressure(MPa): | 20 | Weight: | 11000 |
| Warranty: | 1 Year | Power (kW): | 51.6 |
| Key Selling Points: | Long Service Life | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Marketing Type: | Ordinary Product |
| Port: | Guangzhou | ||
Product Description
Small Rubber Press Sealing Circle Molding Rubber O Ring Making Machine
Product Description:
Technical parameter:
|
Model |
Unit |
100HF |
160HF |
200HF |
250HF |
|
Clamping Force |
Ton |
100 |
160 |
200 |
250 |
|
Operation table size |
mm |
400*460 |
500*520 |
550*560 |
650*600 |
|
Plunger stroke |
mm |
200 |
250 |
250 |
250 |
|
Distance of |
mm |
200~300 |
250~350 |
250~350 |
250~350 |
|
Thermo-plate |
|||||
|
Distance of Tie bar |
mm |
490*230 |
590*270 |
640*310 |
745*310 |
|
Die sinking type |
Track-Suspension-2RT-3RT-4RT |
||||
|
Max Operating |
Mpa |
20 |
20 |
20 |
20 |
|
Pressure |
|||||
|
Motor Power |
hp |
7.5*2(5.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
|
Electric Heating |
Kw |
7.2*2 |
11.7*2 |
13.5*2 |
15.3*2 |
|
Power |
|||||
|
Total Power |
Kw |
25.4 |
38.4 |
42 |
45.6 |
|
Gross weight |
Ton |
5 |
6 |
7.8 |
11 |
|
Dimension(L*W*H) |
mm |
2500*2080*1950 |
2800*2260*1900 |
2930*2350*2050 |
3190*2780*2230 |
Related product:
|
|
|
Shipping and packing
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
