Hydraulic Hot Press Machine Rubber Product Making Machinery Oil Seal Making Machine For Making Rubber O Ring
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $14,000.00 - $46,800.00/sets |
| Packaging Details: | shrink film paking |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 380v | Weight: | 11000 |
| Warranty: | 1 Year | Power (kW): | 51.6 |
| Key Selling Points: | Long Service Life | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Marketing Type: | Ordinary Product |
| Port: | Guangzhou | ||
Product Description

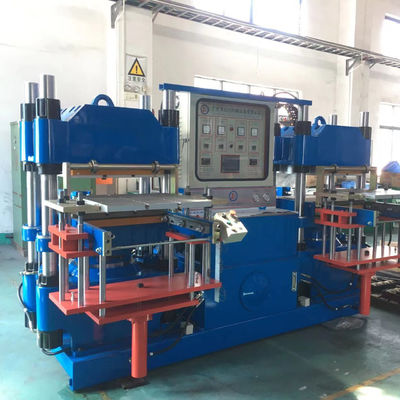

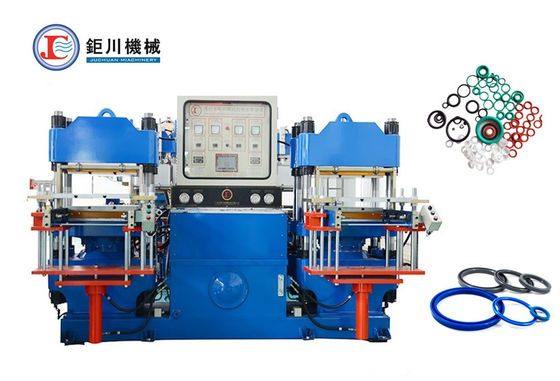

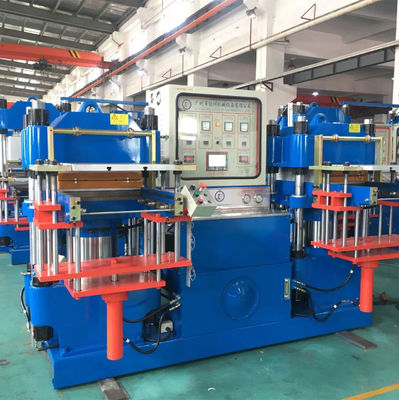

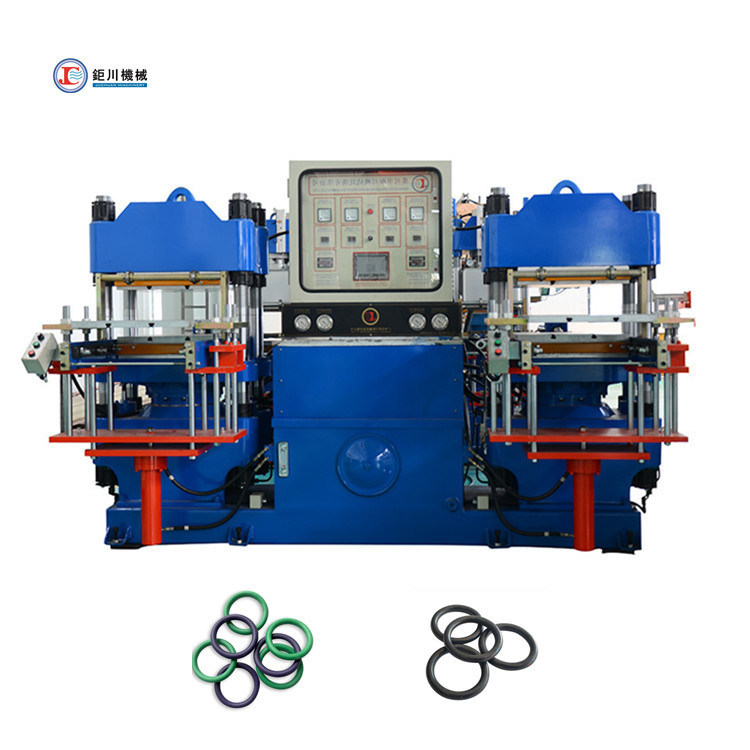

Hydraulic Hot Press Machine Rubber Product Making Machinery
Oil Seal Making Machine For Making Rubber O Ring

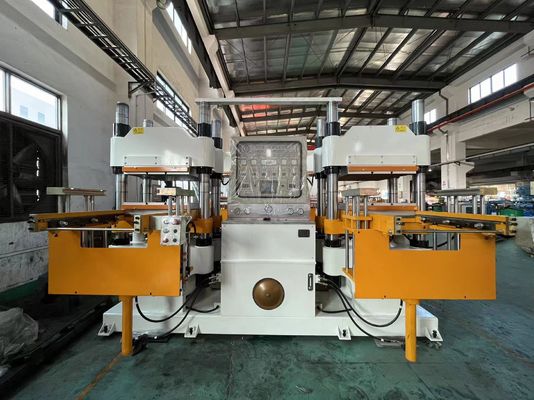

HF Series Vulcanizing Molding Machine For Two Sides Operation
Machine Feature
1.Able to assemble / install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries.
3.Multi-pillar plate vulcanizing machine.
4.Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
| Model | Unit | 100HF | 160HF | 200HF | 250HF | 300HF | 400HF | 500HF | 1200HF |
| Clamping Force | Ton | 100 | 160 | 200 | 250 | 300 | 400 | 500 | 1200 |
| Operation table size | mm | 400*460 | 500*520 | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 | 1600*2200 |
| Plunger stroke | mm | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 |
|
Distance of Thermo-plate |
mm | 200~300 | 250~350 | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 | 350~550 |
| Distance of Tie bar | mm | 490*230 | 590*270 | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 | 6 posts |
| Die sinking type | Track-Suspension-2RT-3RT-4RT | ||||||||
|
Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2(5.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) | 25(18.5kw) |
|
Electric Heating Power |
Kw | 7.2*2 | 11.7*2 | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power | Kw | 25.4 | 38.4 | 42 | 45.6 | 63 | 74.8 | 47 | 144.5 |
| Gross weight | Ton | 5 | 6 | 7.8 | 11 | 15 | 17 | 13.5 | 28.5 |
| Dimension(L*W*H) | mm |
2500*2080 *1950 |
2800*2260 *1900 |
2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
3660*3050 *2350 |
1460*3600 *2380 |
2350*5400 *2950 |
|
|
|
If you have any queries and suggestions, please feel free to let us know.
