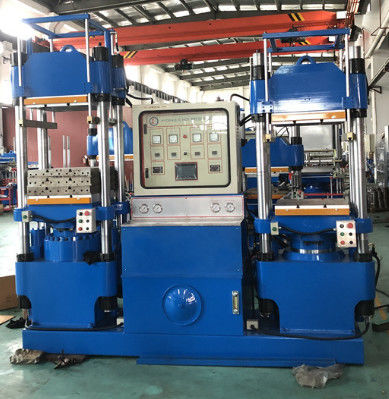

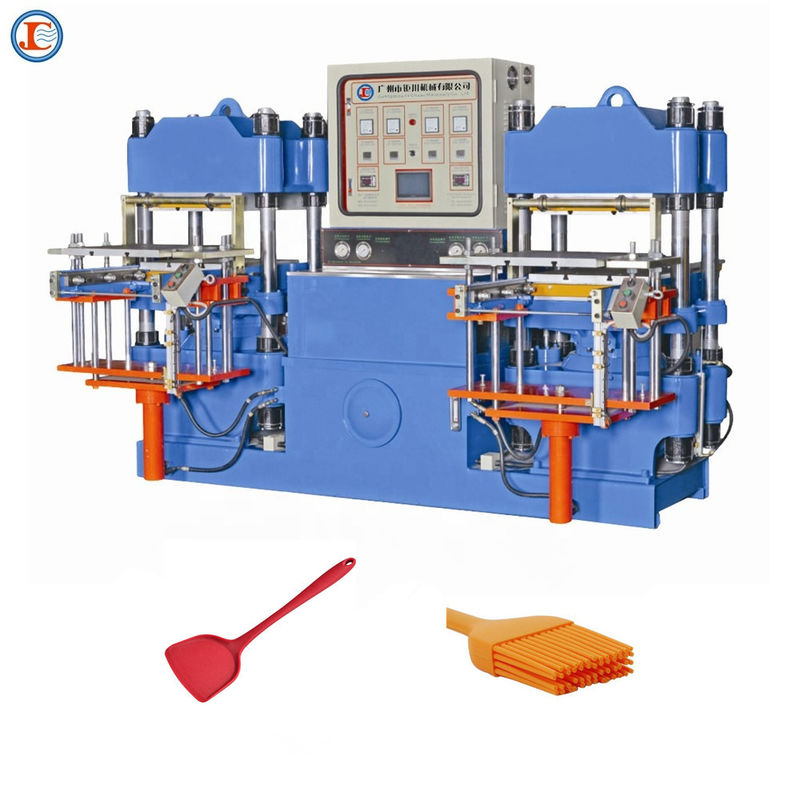

Flat Vulcanizing Press Machine For Silicone Kitchenware/Silicone Spatula
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $14,000.00 - $46,800.00/sets |
| Packaging Details: | shrink film paking |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 380v | Weight: | 11000 |
| Warranty: | 1 Year | Power (kW): | 51.6 |
| Key Selling Points: | Long Service Life | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Ordinary Product | Port: | Guangzhou |
Product Description
Flat Vulcanizing Press Machine For Silicone Kitchenware/Silicone Spatula

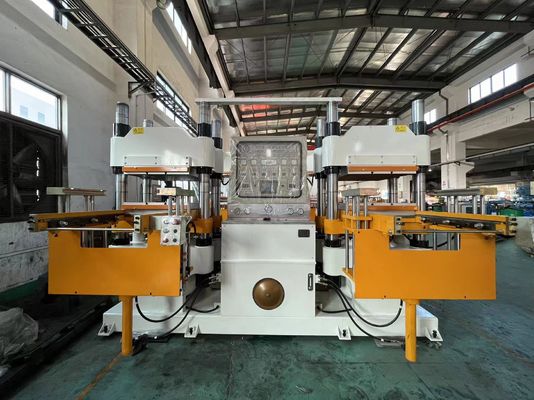

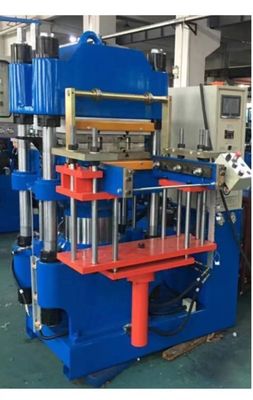

HF Series Vulcanizing Molding Machine For Two Sides Operation
Feature
1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries.
3. Multi-pillar plate vulcanizing machine.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
| Model | Unit | 100HF | 160HF | 200HF | 250HF | 300HF | 400HF | 500HF | 1200HF |
| Clamping Force | Ton | 100 | 160 | 200 | 250 | 300 | 400 | 500 | 1200 |
| Operation table size | mm | 400*460 | 500*520 | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 | 1600*2200 |
| Plunger stroke | mm | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 |
|
Distance of Thermo-plate |
mm | 200~300 | 250~350 | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 | 350~550 |
| Distance of Tie bar | mm | 490*230 | 590*270 | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 | 6 posts |
| Die sinking type | Track-Suspension-2RT-3RT-4RT | ||||||||
|
Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2(5.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) | 25(18.5kw) |
|
Electric Heating Power |
Kw | 7.2*2 | 11.7*2 | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power | Kw | 25.4 | 38.4 | 42 | 45.6 | 63 | 74.8 | 47 | 144.5 |
| Gross weight | Ton | 5 | 6 | 7.8 | 11 | 15 | 17 | 13.5 | 28.5 |
| Dimension(L*W*H) | mm |
2500*2080 *1950 |
2800*2260 *1900 |
2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
3660*3050 *2350 |
1460*3600 *2380 |
2350*5400 *2950 |
Our Main Products
Vertical Solid Silicone Injection Molding machine
Vertical Rubber Injection Molding machine
Horizontal Silicone Injection Molding machine
Horizontal Rubber Injection Molding machine
Liquid Silicone Injection Molding machine
Vacuum compression Molding machine
Hydraulic Vulcanizing Hot Press machine
Brake Pads Brake Lining Hot Press Machine
|
|
|
If you have any queries and suggestions, please feel free to let us know.
