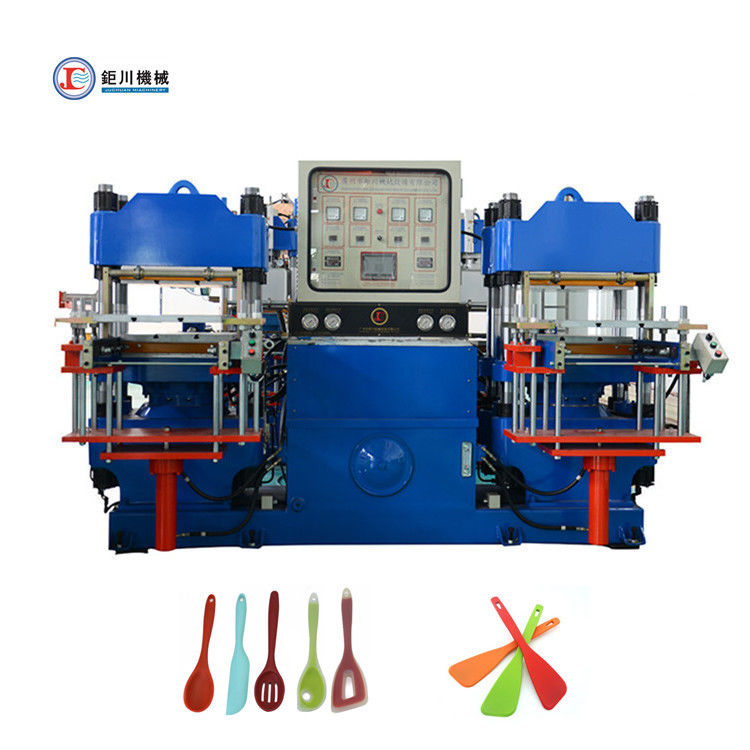

Rubber Silicone Molding Plate Vulcanizing Machine For Making Silicone Kitchenware/Silicone Scraper
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $14,000.00 - $46,800.00/sets |
| Packaging Details: | shrink film paking |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 380v | Weight: | 11000 |
| Warranty: | 1 Year | Power (kW): | 51.6 |
| Key Selling Points: | Long Service Life | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Ordinary Product | Port: | Guangzhou |
Product Description
Rubber Silicone Molding Plate Vulcanizing Machine For Making Silicone Kitchenware/Silicone Scraper
Product Description:
Technical parameter:
|
Model |
Unit |
100HF |
160HF |
200HF |
250HF |
|
Clamping Force |
Ton |
100 |
160 |
200 |
250 |
|
Operation table size |
mm |
400*460 |
500*520 |
550*560 |
650*600 |
|
Plunger stroke |
mm |
200 |
250 |
250 |
250 |
|
Distance of |
mm |
200~300 |
250~350 |
250~350 |
250~350 |
|
Thermo-plate |
|||||
|
Distance of Tie bar |
mm |
490*230 |
590*270 |
640*310 |
745*310 |
|
Die sinking type |
Track-Suspension-2RT-3RT-4RT |
||||
|
Max Operating |
Mpa |
20 |
20 |
20 |
20 |
|
Pressure |
|||||
|
Motor Power |
hp |
7.5*2(5.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
|
Electric Heating |
Kw |
7.2*2 |
11.7*2 |
13.5*2 |
15.3*2 |
|
Power |
|||||
|
Total Power |
Kw |
25.4 |
38.4 |
42 |
45.6 |
|
Gross weight |
Ton |
5 |
6 |
7.8 |
11 |
|
Dimension(L*W*H) |
mm |
2500*2080*1950 |
2800*2260*1900 |
2930*2350*2050 |
3190*2780*2230 |

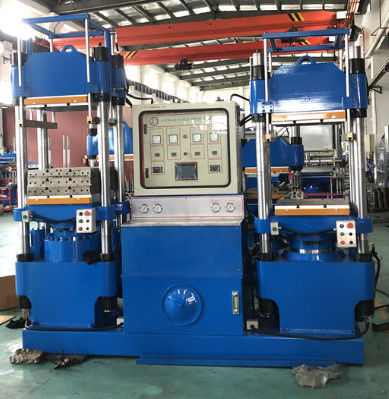

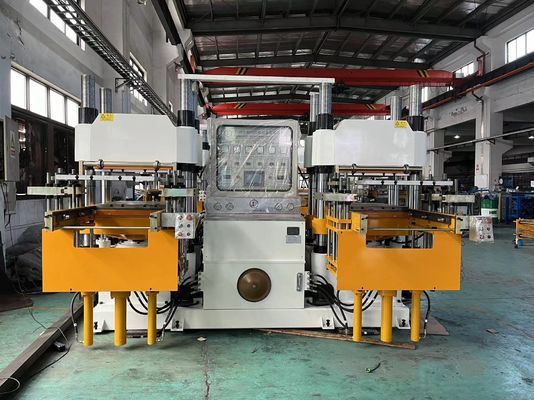

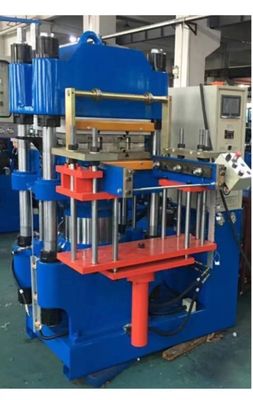

Product show:
Shipping and packing
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Our customers:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
