Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber

Product Details:

Place of Origin: Guangdong, China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $14,000.00 - $48,000.00/sets
Packaging Details: shrink film paking
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 3 Years
Core Components: PLC, Motor, Pump Machine Type: Plate Vulcanizing Press
Voltage: 380v Dimension(L*W*H): 2930*2500*2350mm
Weight: 7800 Warranty: 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Manufacturing Plant
After-sales Service Provided: Engineers Available To Service Machinery Overseas Distance Of Tie Bar(mm): 785*380
Plunger Stroke(mm): 300 Upper Platen Size (mm): 680*680
Lower Platen Size(mm): 700*800 Injection Rate: Adjustable
Injection Weight: 7.8ton Power(W): 69KW
Power: 46kw Marketing Type: New Product 2020
Port: Guangzhou

Product Description

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber



HF Series Vulcanizing Molding Machine For Two Sides Operation



Machine Feature

1.Able to assemble / install separate Ejection mechanism that suitable for bigger size molding part

2.Efficient production of rubber part for railway, mining, shipbuilding industries.

3.Multi-pillar plate vulcanizing machine.

4.Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).



Model Unit 100HF 160HF 200HF 250HF 300HF 400HF 500HF 1200HF
Clamping Force Ton 100 160 200 250 300 400 500 1200
Operation table size mm 400*460 500*520 550*560 650*600 700*800 850*850 1000*1000 1600*2200
Plunger stroke mm 200 250 250 250 300 300 350 350

Distance of

Thermo-plate

mm 200~300 250~350 250~350 250~350 300~400 300~400 350~450 350~550
Distance of Tie bar mm 490*230 590*270 640*310 745*310 785*380 940*450 1105*475 6 posts
Die sinking type Track-Suspension-2RT-3RT-4RT

Max Operating

Pressure

Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5*2(5.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 15*2(11kw*2) 15(11kw) 25(18.5kw)

Electric Heating

Power

Kw 7.2*2 11.7*2 13.5*2 15.3*2 24*2 26.4*2 36 126
Total Power Kw 25.4 38.4 42 45.6 63 74.8 47 144.5
Gross weight Ton 5 6 7.8 11 15 17 13.5 28.5
Dimension(L*W*H) mm

2500*2080

*1950

2800*2260

*1900

2930*2350

*2050

3190*2780

*2230

3360*2970

*2250

3660*3050

*2350

1460*3600

*2380

2350*5400

*2950

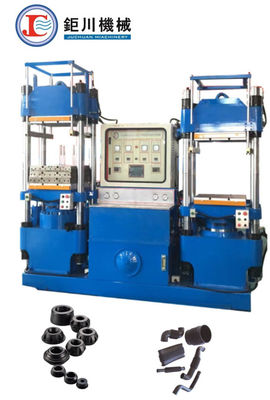

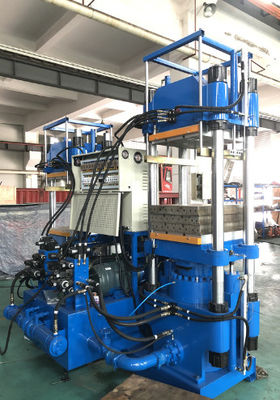

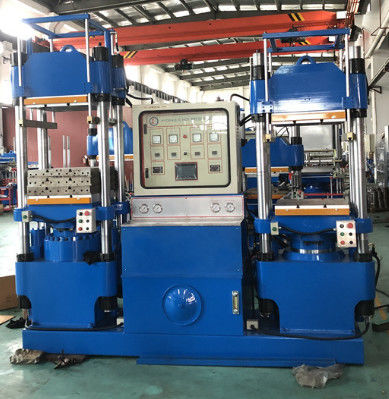

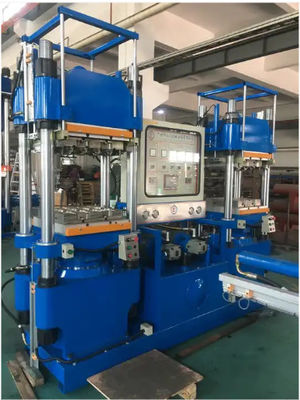

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 0Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 1Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 2

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 3

Application

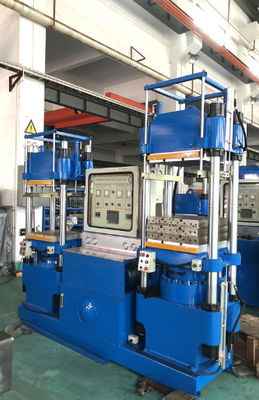

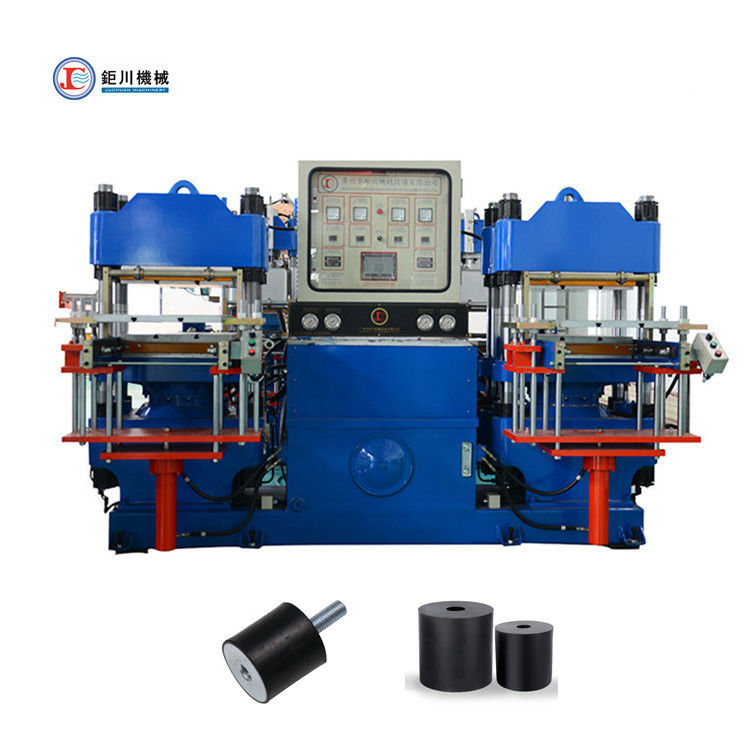

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 4Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 5



Product Features

Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 6Rubber Processors Machinery 200 Ton Vulcanizing Hot Press Machine For Rubber Shock Absorber 7
