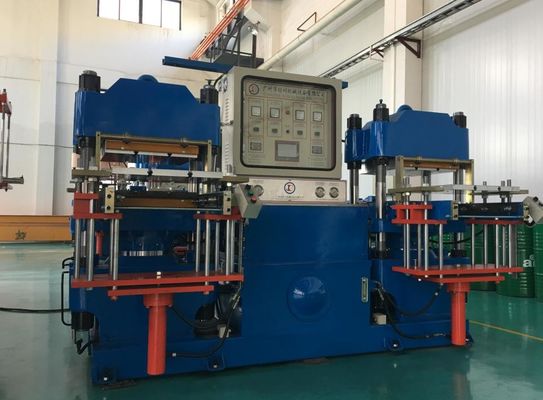

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat

Product Details:

Place of Origin: Guangdong, China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $16,000.00 - $48,000.00/sets
Packaging Details: shrink film paking
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Pump Machine Type: Plate Vulcanizing Press
Voltage: 380v Dimension(L*W*H): 2930*2500*2350mm
Weight: 7.8ton Warranty: 1 Year
Key Selling Points: Easy To Operate Showroom Location: None
Applicable Industries: Manufacturing Plant After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support
Distance Of Tie Bar(mm): 785*380 Plunger Stroke(mm): 300
Upper Platen Size (mm): 680*680 Lower Platen Size(mm): 700*800
Injection Rate: Adjustable Injection Weight: 7.8ton
Power(W): 69KW Power: 46kw
Marketing Type: New Product 2020 After Warranty Service: Video Technical Support, Online Support
Local Service Location: None Port: Guangzhou

Product Description

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat



Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 0



 Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 1

  Specific Characteristic:

  1.  Twin work position design, are required with independent oil circuit, dual oil pump, double motor.
  2. Vacuum pumping device draws out air in die cavity to avoid trapped gas, short injection, shorten forming period and improve product quality.
  3.  Suitable for rubber parts with complicated structure and difficult exhaust.
  4. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
  5.  Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
  6. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
  7. Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.



2RT Machine motion flow:

1.    Setup the mold (initial status)

2.    Supply the material and start the process(close the mold)

3.    Load the mold

4.    The main ram goes up to the predetermined position ready for entering a state of vacuum

5.    Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.

6.    The main ram goes up. Increase the pressure to expel bubbles out.

7.    After the state of vacuum exist mo more, lift the vacuum hood and curing.

8.    After curing, lower the main ram.

9.    Unload the mold, open the mold.

10.  Take out the final product and put new material in.





Technical parameter

Model

Unit

100VF

200VF

250VF

300VF

Clamping Force

Ton

100

200

250

300

Upper Platen Size

mm

380*400

510*510

600*600

680*680

Lower Platen Size

mm

400*460

550*560

650*600

700*800

 Plunger stroke

mm

200

250

250

300

Distance of Thermo-plate

mm

200

250

250

300

Distance of Tie bar

mm

490*230

640*310

745*310

785*380

Die sinking type

     2RT-3RT-4RT-Track



Max Operating Pressure

Mpa

20

20

20

20

Motor Power

hp

7.5*2

10*2

10*2

10*2

Electric Heating Power

Kw

7.2*2

13.5*2

15.3*2

24*2

Vacuum Pump Power

Kw

3

3

3*2

3*2

Total Power

Kw

28.4

45

51.6

69

Gross weight

Ton

5

7.8

11

15.45

Dimension

mm

L2500*W2150*H2080

L2930*W2500*H2350

L3190*W2930*H2495

L3360*W2970*H2850







What products our machines can produce?

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 2Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 3







Our Main Products

Vertical Solid Silicone Injection Molding machine



Vertical Rubber Injection Molding machine



Horizontal Silicone Injection Molding machine



Horizontal Rubber Injection Molding machine



Liquid Silicone Injection Molding machine



Vacuum compression Molding machine



Hydraulic Vulcanizing Hot Press machine



Brake Pads Brake Lining Hot Press Machine

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 4



Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 5



Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.





Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 6





Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 7





Thailand exhibition show:

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 8



Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

Price Machinery Kitchenware Silicone Mold Making Machine For Insulation Mat 9
