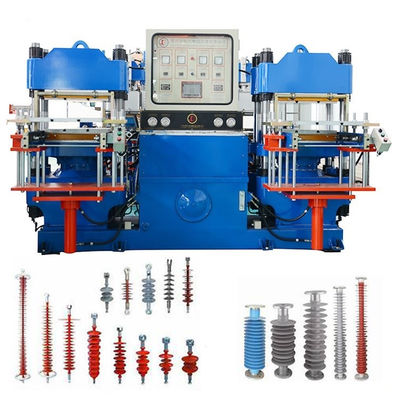

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator

Product Details:

Place of Origin: China
Brand Name: JUCHUAN
Certification: SGS CE ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $20,000.00 - $46,800.00/sets
Packaging Details: shrink film packing
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Unit/Month
Get Best Price Contact Now

Detail Information

Condition: New Machine Type: Plate Vulcanizing Press
Voltage: 220/380v Dimension(L*W*H): 2930*2350*2050mm
Weight: 7.8ton Warranty: 1 Year
Key Selling Points: Easy To Operate Showroom Location: None
Applicable Industries: Manufacturing Plant After Warranty Service: Video Technical Support, Online Support
Local Service Location: None After-sales Service Provided: Engineers Available To Service Machinery Overseas
Injection Pressure(kgf/xm2): 2000 Plunger Stroke(mm): 400~700
Heater Capacity(kw): 30.3~150 Gross Weight(Ton): 7.3~650
Model: HI-FL Power(W): 42kw
Port: Guangzhou Clamp Force: 50-1000
Plunger Stroke: 200-350 Mold Opening Type: 2RT3RT4RT
Gross Weight: 5-28.5
High Light:

Silicon Insulator Hydraulic Vulcanizing Machine

,

Silicon Insulator Hydraulic Press Moulding Machine

,

42kw Hydraulic Press Moulding Machine

Product Description

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine

for making Silicon Insulator



China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 0

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 1





How to operate this machine?

Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product.

Product Detailed

 China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 2China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 3China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 4China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 5China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 6

Technical parameter

Model 100HF 200HF 250HF 300HF 350HF 400HF 500HF 1200HF
Clamp Force(Ton) 100 200 250 300 350 400 500 1200
Platen Size (mm) 400*460 550*560 650*600 700*800 750*750 850*850 1000*1000 1600*1200
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ480 Φ500 Φ560 Customized
Plunger Stroke (mm) 200 250 250 300 300 300 350 350
Heating Plates Distance (mm) 200 - 300 250 - 350 250 - 350 300 - 400 300 - 400 300 - 400 350 - 450 350 - 550
Tie Bar Distance (mm) 490*230 650*320 745*310 785*380 / 940*450 1105*475 Six Tie Bars
Mold Opening Type 2RT- 3RT - 4RT - Track - Suspension
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 26.4*2 36 126
Total Power (KW) 25.4 42 45.6 63 70 74.8 47 144.5
Gross Weight (Ton) 5 7.8 11 15 / 17 13.5 28.5
Machine Size L*W*H (mm) 2500*2080*1950 2930*2350*2050 3190*2780*2230 3360*2970*2250 Customized 3660*3050*2350 1460*3600*2380 2350*5400*2950





Application Products

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 7China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 8







Our Main Products



Silicone rubber injection molding machine



Vertical hydraulic rubber injection machine



Horizontal silicone rubber injection machine



Liquid silicone injection molding machine



Vacuum compression machine



Silicone rubber hot press machine

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 9

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 10





Company Information



* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 11





China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 12





Exhibition show

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 13



Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

China Factory Price 42kw Hydraulic Press Moulding Machine Hydraulic Vulcanizing Machine for making Silicon Insulator 14
