Product Details:

Place of Origin: Guangdong, China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $15,000.00 - $26,800.00/sets
Packaging Details: Fixed with hard straps
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Condition: New Machine Type: Plate Vulcanizing Press
Voltage: 380v Dimension(L*W*H): 2930*2350*2050mm
Weight: 7.8ton Warranty: 1 Year
Key Selling Points: Competitive Price Applicable Industries: Manufacturing Plant
After-sales Service Provided: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas After Warranty Service: Video Technical Support, Online Support
Clamp Force(Ton): 100~1200 Plunger Stroke(mm): 200~350
Gross Weight(Ton): 5~28.5 Power(W): 42kw
Port: Guangzhou

Product Description

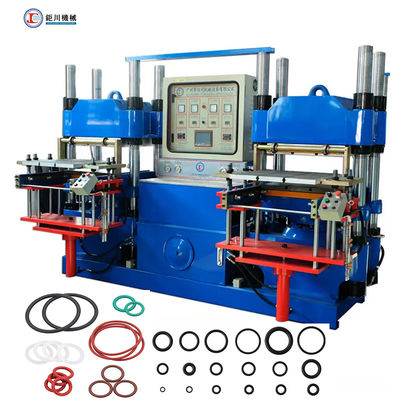

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine

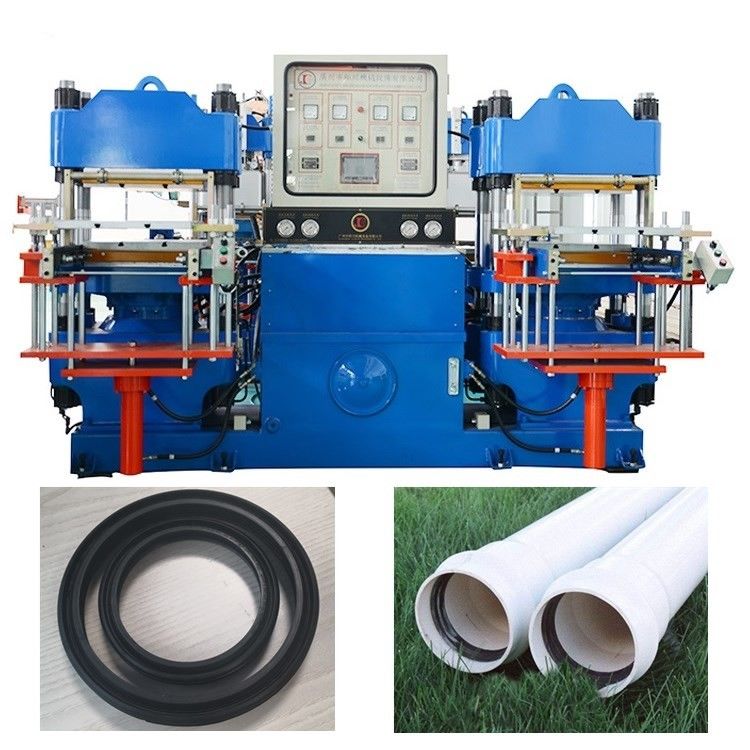

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 0



Machine Features

1. Adaptable with different demolding methods like 2RT/3RT/4RT.

2. Accurate mold-in and mold-out position to ensure no damage to the molding.

3. Dual motor design for sale and independent working of the twin station.





How to operate this machine?

Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product

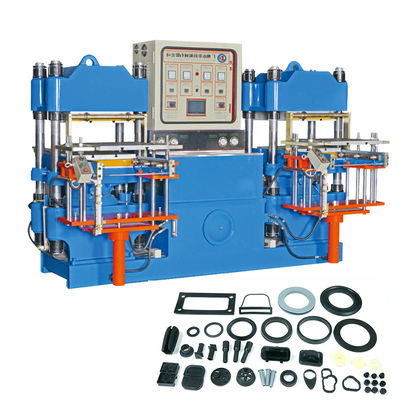

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 1

Technical parameter

Model 100HF 200HF 250HF 300HF 350HF 400HF 500HF 1200HF
Clamp Force(Ton) 100 200 250 300 350 400 500 1200
Platen Size (mm) 400*460 550*560 650*600 700*800 750*750 850*850 1000*1000 1600*1200
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ480 Φ500 Φ560 Customized
Plunger Stroke (mm) 200 250 250 300 300 300 350 350
Heating Plates Distance (mm) 200 - 300 250 - 350 250 - 350 300 - 400 300 - 400 300 - 400 350 - 450 350 - 550
Tie Bar Distance (mm) 490*230 650*320 745*310 785*380 / 940*450 1105*475 Six Tie Bars
Mold Opening Type 2RT- 3RT - 4RT - Track - Suspension
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 26.4*2 36 126
Total Power (KW) 25.4 42 45.6 63 70 74.8 47 144.5
Gross Weight (Ton) 5 7.8 11 15 / 17 13.5 28.5
Machine Size L*W*H (mm) 2500*2080*1950 2930*2350*2050 3190*2780*2230 3360*2970*2250 Customized 3660*3050*2350 1460*3600*2380 2350*5400*2950



Machine Detials

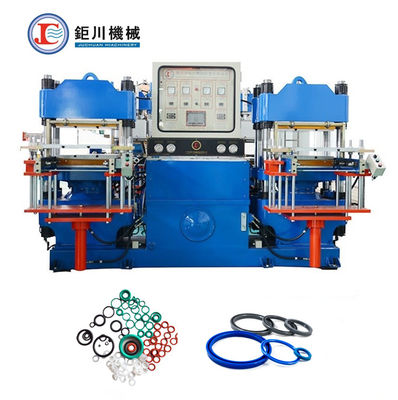

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 2

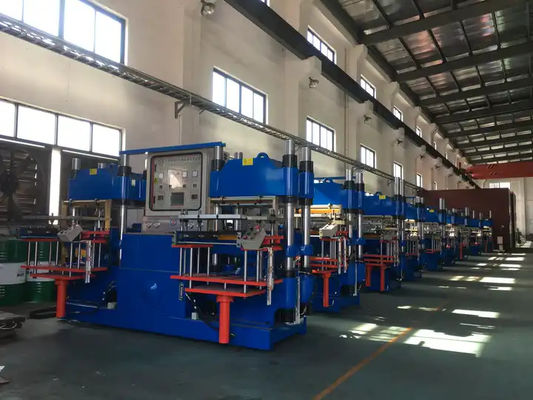

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 3



China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 4





China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 5





China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 6



Related product



China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 7 China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 8 China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 9




Application Products

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 10

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 11

Company information



* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.



China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 12





Our Main Products

Vertical Solid Silicone Injection Molding machine



Vertical Rubber Injection Molding machine



Horizontal Silicone Injection Molding machine



Horizontal Rubber Injection Molding machine



Liquid Silicone Injection Molding machine



Vacuum compression Molding machine



Hydraulic Vulcanizing Hot Press machine



Brake Pads Brake Lining Hot Press Machine



China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 13China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 14



Trade show

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 15

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 16

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

China Factory Price Pressure Pipes And Fittings Rubber Seal Making Machine EPDM Seal Ring/Vulcanizing Hot Press Machine 17
