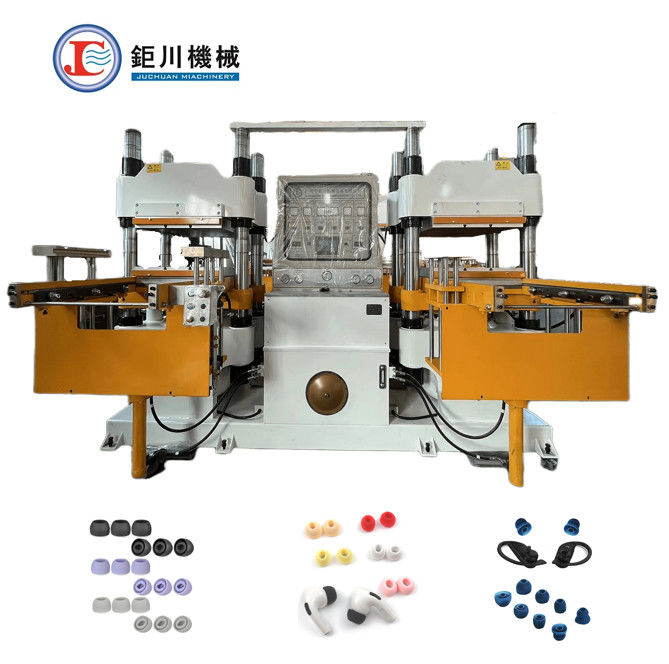

China Factory Price Energy-Saving Hydraulic Vulcanizing Hot Press Machine for silicone earplug
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $15,000.00 - $40,000.00/sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Injection Rate (g/s): | 100 | Machine Type: | Hydraulic |
| Injection Weight (g): | 200 | Screw Diameter (mm): | 40 |
| Distance Between Tie Bars: | TBD | Weight (KG): | 7500 |
| Type: | Plate Vulcanizing Machine | Power (kW): | 15 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Automatic: | Yes |
| After-sales Service Provided: | Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas | Opening Stroke: | 2RT 3RT 4RT |
| Clamping Force (kN): | 200 | Gross Weight(Ton): | 5~28.5 |
| Plunger Stroke(mm): | 200~350 | Port: | Guangzhou |
Product Description
China Factory Price Energy-Saving Hydraulic Vulcanizing Hot Press Machine for silicone earplug

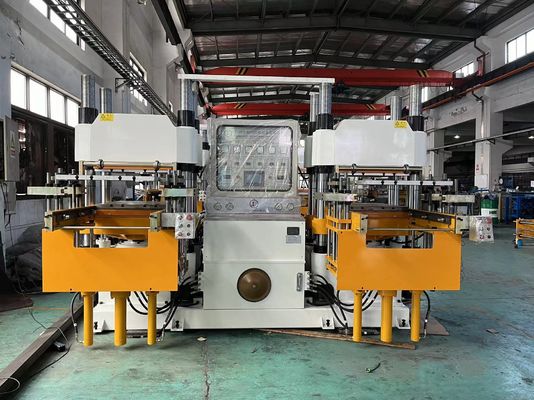

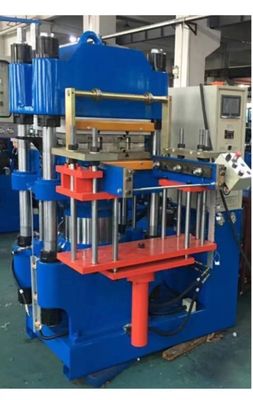

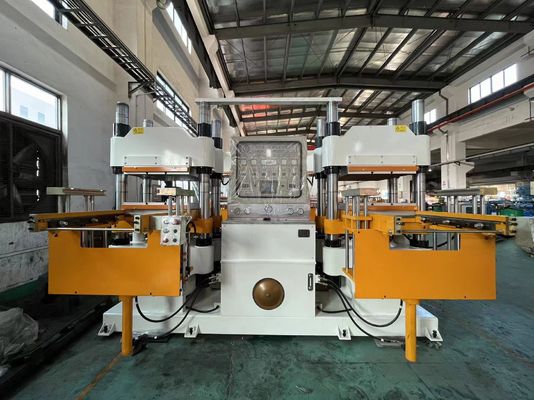

HF Series Vulcanizing Molding Machine For Two Sides Operation
Machine Feature
1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries.
3. Multi-pillar plate vulcanizing machine.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
| Model | Unit | 100HF | 160HF | 200HF | 250HF | 300HF | 400HF | 500HF | 1200HF |
| Clamping Force | Ton | 100 | 160 | 200 | 250 | 300 | 400 | 500 | 1200 |
|
Operation table size |
mm | 400*460 | 500*520 | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 | 1600*2200 |
| Plunger stroke | mm | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 |
|
Distance of Thermo-plate |
mm | 200~300 | 250~350 | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 | 350~550 |
| Distance of Tie bar | mm | 490*230 | 590*270 | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 | 6 posts |
| Die sinking type | Track-Suspension-2RT-3RT-4RT | ||||||||
|
Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2(5.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) | 25(18.5kw) |
|
Electric Heating Power |
Kw | 7.2*2 | 11.7*2 | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power | Kw | 25.4 | 38.4 | 42 | 45.6 | 63 | 74.8 | 47 | 144.5 |
| Gross weight | Ton | 5 | 6 | 7.8 | 11 | 15 | 17 | 13.5 | 28.5 |
| Dimension(L*W*H) | mm |
2500*2080 *1950 |
2800*2260 *1900 |
2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
3660*3050 *2350 |
1460*3600 *2380 |
2350*5400 *2950 |
|
|
|
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
