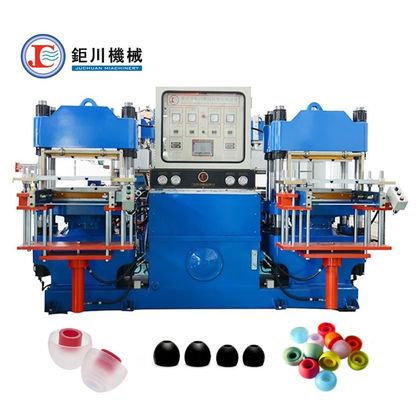

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine

Product Details:

Place of Origin: Guangdong, China
Brand Name: JuChuan
Certification: ISO9001:2015
Model Number: JC-HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $16,800.00 - $40,000.00/sets
Packaging Details: Fixed with hard straps
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Condition: New Style: VERTICAL
Injection Rate (g/s): 100 Machine Type: Hydraulic
Injection Weight (g): 200 Screw Diameter (mm): 30
Distance Between Tie Bars: TBD Weight (KG): 6000
Type: Plate Vulcanizing Machine Power (kW): 15
Warranty: 1 Year Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant Automatic: Yes
After-sales Service Provided: Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas Plastic Type: Other
Clamping Force (kN): 200 Gross Weight(Ton): 5~28.5
Plunger Stroke(mm): 200~350 Port: Guangzhou

Product Description

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine

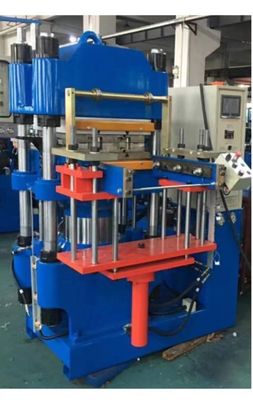

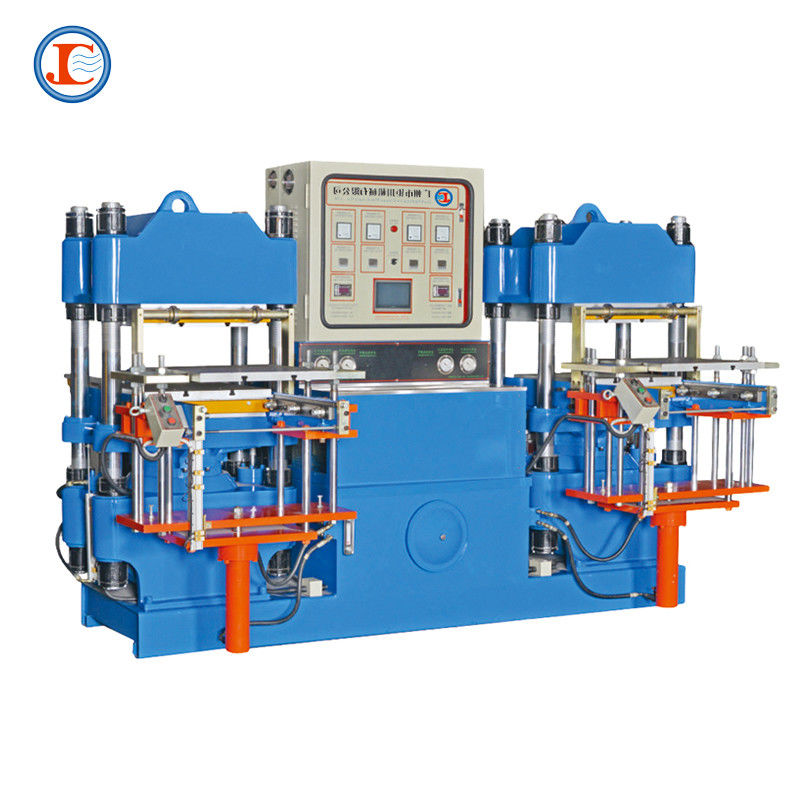

HF Series Vulcanizing Molding Machine For Two Sides Operation



Machine Feature

1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part

2.Efficient production of rubber part for railway, mining, shipbuilding industries.

3. Multi-pillar plate vulcanizing machine.

4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).



 Model Unit 100HF  160HF  200HF  250HF  300HF  400HF  500HF 1200HF
 Clamping Force Ton 100 160 200 250 300 400 500 1200

 Operation table size

mm 400*460 500*520 550*560 650*600 700*800 850*850 1000*1000 1600*2200
 Plunger stroke  mm 200 250 250 250 300 300 350 350

 Distance of

 Thermo-plate

mm 200~300 250~350 250~350 250~350 300~400 300~400 350~450 350~550
 Distance of Tie bar  mm 490*230 590*270 640*310 745*310 785*380 940*450 1105*475 6 posts
 Die sinking type Track-Suspension-2RT-3RT-4RT

 Max Operating

 Pressure

Mpa 20 20 20 20 20 20 20 20
 Motor Power hp 7.5*2(5.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 15*2(11kw*2) 15(11kw) 25(18.5kw)

 Electric Heating

 Power

Kw 7.2*2 11.7*2 13.5*2 15.3*2 24*2 26.4*2 36 126
 Total Power Kw 25.4 38.4 42 45.6 63 74.8 47 144.5
 Gross weight Ton 5 6 7.8 11 15 17 13.5 28.5
 Dimension(L*W*H) mm

2500*2080

*1950

2800*2260

*1900

2930*2350

*2050

3190*2780

*2230

3360*2970

*2250

3660*3050

*2350

1460*3600

*2380

2350*5400

*2950



China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 0China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 1China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 2

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 3China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 4

Application Products

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 5







Our Main Products



Silicone rubber injection molding machine



Vertical hydraulic rubber injection machine



Horizontal silicone rubber injection machine



Liquid silicone injection molding machine



Vacuum compression machine



Silicone rubber hot press machine

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 6

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 7





Company Information



Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 8





China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 9





Exhibition show

China Factory Easy to Operate Ear Plug Hydraulic Vulcanizing Hot Press Making Machine 10



Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
