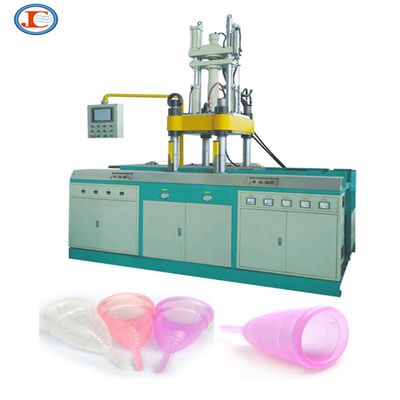

LSR Injection Molding Machine Silicone Menstrual Cup Making Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Price: | $39,000.00 - $45,000.00/sets |
|---|---|
| Packaging Details: | N/A |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Type: | LSR Injection Molding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Biggest Injection Rate: | 180~210cc/s | Injection Pressure(kfg/cm2): | 750 |
| Injection Volume(cc): | 300~500 | Screw Diameter(mm): | 45,50,55 |
| Motor Capacity(kw): | 11~20 | Gross Weight(Ton): | 6.3~11 |
| Model: | JC-LV | Opening Stroke: | 300~350mm |
| Injection Rate: | 30g/s | Injection Weight: | 300~500cc |
| Power(W): | 11~20Kw | Automatic: | Yes |
| Plastic Type: | Other | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Platen Size: | 300-700 | Plunger Stroke: | 300-500 |
| Mold Opening Type: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| Injection Pressure: | 1800 | Opening Mold: | 2RT3RT4RT |
| High Light: | silicone menstrual cup LSR Injection Molding Machine,menstrual cup making LSR machine,silicone menstrual cup making machine |
||
Product Description
liquid silicone injection machine factory for lsr machine menstrual cups
LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO |
| Clamping Force | Ton | 100 | 200 |
| Injection Capacity | cc | 180 | 180 |
| Injection pressure | kgf/cm² | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 |
| Operate table size | mm | 600*550 | 600*650 |
| Min. Mold Thickness | mm | 120-220 | 130 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 |
| Die sinking type | mm | 300 | 350 |
| Screw diameter | mm | 45 | 50 |
| Screw speed | r/p | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) |
| Gross weight | Ton | 6.3 | 7.6 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 |
|
|
|
Shipping and packing
Company information
Guangzhou JuChuan Machinery Co.,Ltd was established in 1997. We are mainly specializing in producing silicone/rubber injection molding machines, Vacuum compression molding machines, plate vulcanizing machine, “all-in-out” ,liquid silicone injection machine, ”first in first out” ,”first in last out”, vertical and horizontal silicone/rubber injection machine for 20 years.
We have a special company patent: Anti-collision Molding System prevent mold damage occurring form misalignment.
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
