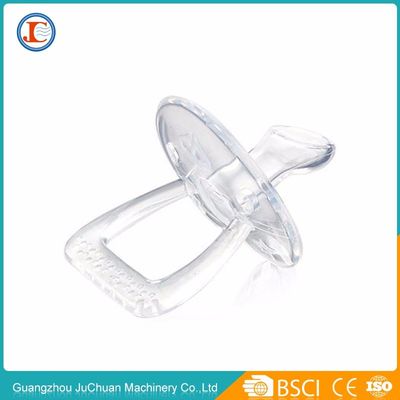

Liquid Silicone LSR Injection Molding Machine For Baby Nipple 1000 kN
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Price: | $45,000.00/sets >=1 sets |
|---|---|
| Packaging Details: | Fixed with hard straps. |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Liquid Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 300 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 300 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Diameter (mm): | 30 Mm |
| Weight (KG): | 6300 | Type: | LSR Injection Molding Machine |
| Open Stroke(mm): | 300 Mm | Power (kW): | 11 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Rate: | 30g/s | Opening Stroke: | 300~350mm |
| Injection Weight: | 300~500cc | Biggest Injection Rate: | 180~210cc/s |
| Injection Pressure(kfg/cm2): | 750 | Injection Volume(cc): | 300~500 |
| Screw Diameter(mm): | 45,50,55 | Motor Capacity(kw): | 11~20 |
| Gross Weight(Ton): | 6.3~11 | Plastic Type: | Other |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Russia, South Africa |
| Clamping Force (kN): | 1000 KN | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Platen Size: | 300-700 | Plunger Stroke: | 300-500 |
| Mold Opening Type: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| Injection Pressure: | 1800 | Opening Mold: | 2RT3RT4RT |
| High Light: | Baby Nipple LSR Injection Molding Machine,liquid silicone injection molding machine 1000 kN,Baby Nipple liquid silicone injection molding machine |
||
Product Description
Factory Price Energy-Saving Injection Molding Lsr Machine For Baby Nipple
LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
|
|
|
