50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory

Product Details:

Place of Origin: Guangdong, China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-VI-AO

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $25000-$40,000.00/sets >=1 sets
Packaging Details: Fixed with hard straps.
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Condition: New Style: VERTICAL
Mold Height(mm): 100 - 250 Mm Ejector Number: 3
Ejector Stroke(mm): 100 Mm Ejector Force(kN): 1000 KN
Theoretical Shot Volume(cm³): 100 Cm³ Injection Rate (g/s): 100 G/s
Machine Type: Hydraulic Injection Weight (g): 100 G
Screw Speed (rpm): 100 - 200 Rpm Screw Diameter (mm): 30 Mm
Screw L/D Ratio: 20 Distance Between Tie Bars: 400
Weight (KG): 8000kg Type: Silicone/Rubber Injection Machine
Open Stroke(mm): 200 Mm Power (kW): 40kW
Warranty: 1 Year Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Pump, PLC Automatic: Yes
After-sales Service Provided: Engineers Available To Service Machinery Overseas Injection Rate: Adjustable
Injection Weight: 500~10000cc Clamp Force(Ton): 50~1000
Injection Volume(cc): 500~10000 Injection Pressure(kgf/xm2): 1800
Platen Size(mm): 300*300~1200*1200 Plunge Stroke(mm): 300~500
Plastic Type: Other Marketing Type: Ordinary Product
Port: Guangzhou
High Light:

1000 kN Silicone Rubber Injection Molding Machine

,

Desktop Silicone Rubber Injection Molding Machine 8000kg

,

1000 kN Desktop Injection Molding Machine

Product Description

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory

Product Description

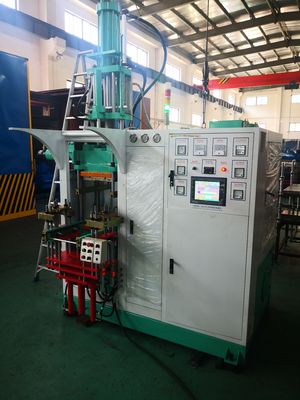

VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injection  Machine

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10  times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic



Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke  mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate  mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar  mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

 Pressure

Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25

Electric Heating Power

Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000



 50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 050ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 150ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 2

Application

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 3

Product Features

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 450ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 5



Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.



50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 6







Our Main Products



Silicone rubber injection molding machine



Vertical hydraulic rubber injection machine



Horizontal silicone rubber injection machine



Liquid silicone injection molding machine



Vacuum compression machine



Silicone rubber hot press machine



50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 7

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 8



Trade Show

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 9

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 10



Our service



1. Free technology training: you can come for inspection and training for free.



2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.



3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)



4. Online remote control for software problems, whatspp or wechat for video checking.

50ton - 1000ton Auto Rubber Bushing Rubber Injection Molding Machine from China Factory 11
