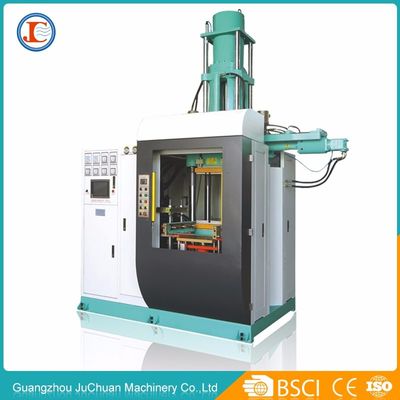

Hydraulic Rubber Moulding Press Machine 2000kN For Automotive Parts
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001 |
| Model Number: | VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $40,000.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Rubber/silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 100 |
| Mold Height(mm): | 100 - 250 Mm | Ejector Number: | 3 |
| Ejector Stroke(mm): | 100 Mm | Ejector Force(kN): | 1000 KN |
| Theoretical Shot Volume(cm³): | 100 Cm³ | Injection Rate (g/s): | 100 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 100 G |
| Screw Speed (rpm): | 100 - 200 | Screw Diameter (mm): | 30 Mm |
| Screw L/D Ratio: | 20 | Distance Between Tie Bars: | 400 |
| Weight (KG): | 8000 | Type: | Silicone/Rubber Injection Machine |
| Open Stroke(mm): | 200 Mm | Power (kW): | 40 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Rate: | Adjustable | Injection Weight: | 500~10000cc |
| Clamp Force(Ton): | 50~1000 | Injection Volume(cc): | 500~10000 |
| Injection Pressure(kgf/xm2): | 1800 | Platen Size(mm): | 300*300~1200*1200 |
| Plunge Stroke(mm): | 300~500 | Heater Capacity(kw): | 8.4~42 |
| Plastic Type: | Other | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Russia, South Africa | Clamping Force (kN): | 2000kN |
| Port: | Guangzhou | ||
| High Light: | rubber moulding press machine 2000kN,hydraulic rubber moulding press machine,hydraulic rubber moulding machine 2000kN |
||
Product Description
High Efficiency Auto Rubber Car Parts Making Machine/Injection Molding Machine Spare Parts
VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine
Feature:
• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products
• All-in-out structure, sprueless injection without material loss controllable injecting material temperature
• Excellent for high precision molding part
• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g
• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
• Servo-Controlled system -Up to 40% energy saving
• Proportional backpressure controlling characteristic
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
|
Electric Heating Power |
Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2000*1500 *H2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
|
|
|
