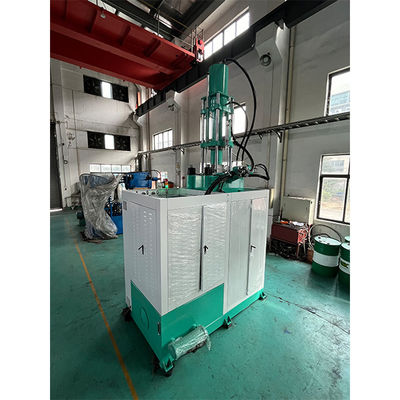

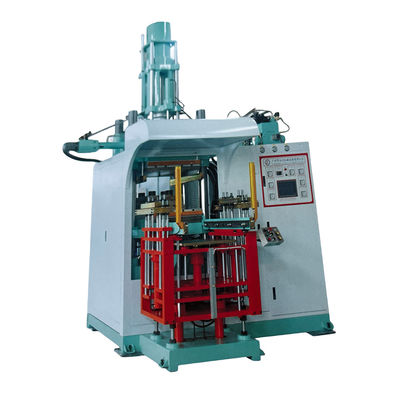

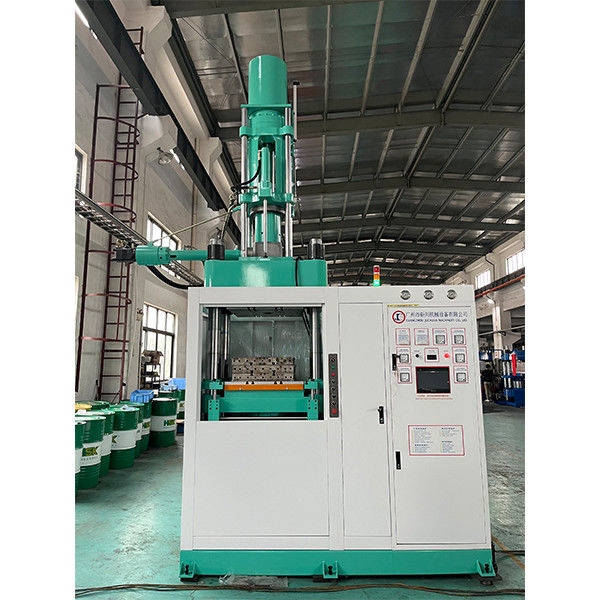

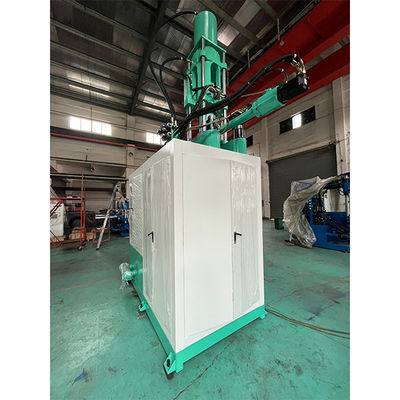

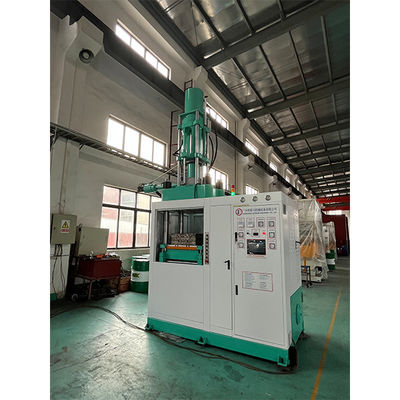

High-Accuracy Vertical Rubber Injection Molding Machine For Making Rubber Products
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-45000/set |
| Packaging Details: | container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 100-400ton | Injection Volume: | 1000-4000cc |
|---|---|---|---|
| Injection Pressure: | 2000kgf/cm2 | Plunger Stroke: | 350-400(500)mm |
| Opening Mold: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | Gross Weight: | 6.4-12ton |
| Total Power: | 17.5-35ton | Motor Power: | 7.5-11KW |
| Heating Power: | 10-24KW | Platen Size: | 400*400mm - 800*1000mm |
| Machine Size L*W*H: | 2400*1650*3200 - 3700*3800*4950 | Min. Mold Thickness: | 50-100mm |
| Tie Bar Distance: | 515*230-820*395mm | ||
| High Light: | High-Accuracy Rubber Injection Molding Machine,Vertical Rubber Injection Molding Machine |
||
Product Description
Visible Feeding System:
- To avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing.
- can efficiently get control of the raw material Plasticizing status, can make adjustment in time.
- High Precision injection molding technicals applies to all complicated rubber parts injection molding.
Excellent Plasticizing Effects:
- Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, easy for cleaning. And easy to switch the different colors of raw material.
High Temperature Ranges:
- Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
Save Raw Rubber Material:
- Can handle with the raw rubber material as hardness as 85°,can improve coefficient of utilization of raw material.
Specific Charateristics:
- Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.
- All-in-out structure, sprueless injection without material loss controlable injecting material temperature.
- Excellent for high precision molding part
- 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g
- Anti-collision molding system prevent mold damage occurring from misalignment(patented)
- Servo-controlled system up to 40% energy saving
- Proportional backpressure controlling characteristic
Machines Main Features:
This machine owns the function of automatic injection rubber and vulcanizing. After setting your vulcanization time, vulcanization temperature, exhausting times in this PLC cabinet, the machine will automatically close the mold, and vulcanization. After reaching time of vulcanization, the machine will automatically open the mold.
- This machine owns function of automatic push and pull the mold in and out. After mold opening, the automatic adjustable rail device will push the bottom mold out.
- The machine will automatically knock the mold. After pushing the bottom mold out, the machine will knock the bottom bold. This is named 2 RT.
- This ejection device also can be designed for 3 RT and 4 RT. 3 RT means your mold is three pieces, 4RT means your mold is 4 pieces.
- This machine is one unit structure. For traditional type machine, the principle machine and hydraulic station is divided into 2 parts. While for our new structure, it is one unit.
- The PLC cabinet, LED screen, and other main electrical spare part is from Japan or Germany.
- All hydraulic station spare part is from Parker Brand of USA.
- For sealing, our company adopts the sealing from the NOK brand, it is from Japan.
- For heating plate, cylinder, piston and other metal spare parts, all are processed in the CNC machine center, ensuring it has high accuracy and good quality.
Main Technical Parameters:
| Model | 100VI-FL | 200VI-FL | 300VI-FL | 400VI-FL |
| Clamp Force(Ton) | 100 | 200 | 300 | 400 |
| Injection Volume(cc) | 1000 | 2000 | 3000 | 4000 |
| Injection Pressure(kgf/cm²) | 2000 | 2000 | 2000 | 2000 |
| Platen Size(mm) | 400*400 | 550*560 | 700*700 | 700*700 (800*1000) |
| Plunger Diameter(mm) | Φ250 | Φ360 | Φ450 | Φ500 |
| Min. Mold Thickness(mm) | 50 | 100 | 100 | 100 |
| Plunger Stroke(mm) | 350 | 400 | 400(600) | 400(500) |
| Heating Plates Distance(mm) | 400-500 | 500-600 | 500-600 | 500-600 |
| Tie Bar Distance(mm) | 515*230 | 640*310 | 820*395 | 820*395 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||
| Max. Operating Pressure | 20 | 20 | 20 | 20 |
| Motor Power(KW) | 7.5 | 11 | 11 | 11 |
| Heating Power(KW) | 10 | 15.3 | 24 | 24 |
| Total Power(KW) | 17.5 | 26.3 | 35 | 35 |
| Gross Weight(Ton) | 6.4 | 7.8 | 9.6 | 12 |
| Machine Size L*W*H(mm) | 2400*1650*3200 | 2600*2000*4000 | 2750*2265*4200 | 2750*2265*4200/ 3700*3800*4950 |

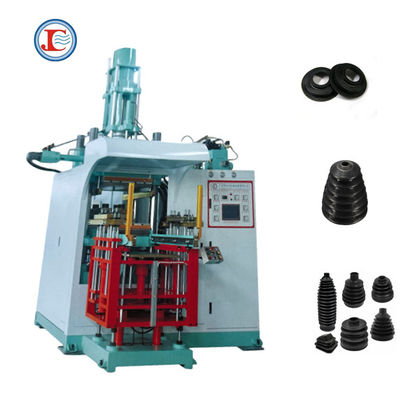

Application Products
|
|
|
Shipping and packing
Company information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
