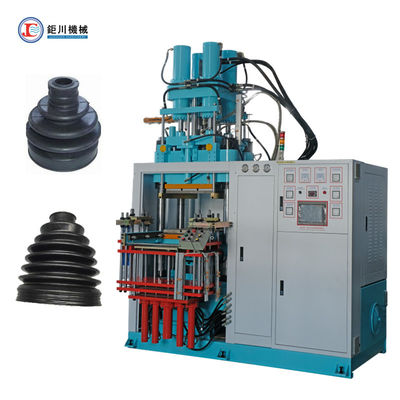

High quality Green color Rubber Silicone injection machine for making auto parts
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | ISO9001-2015 |
| Model Number: | JC-VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 33200/set |
| Packaging Details: | container |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 800 | Injection Volume(cc): | 1000 - 10000 |
|---|---|---|---|
| Injection Pressure(kgf/cm2): | 1800 | Min. Mold Thickness(mm): | 50 - 610 |
| Plunger Stroke(mm): | 350 - 1000 | Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure(MPa): | 20 | Motor Power(KW): | 10 - 29.75 |
| Heating Power(KW): | 17.5 - 47 | Gross Weight(Ton): | 6.5 - 40 |
| High Light: | 3000cc Silicone Rubber Injection Molding Machine,3000cc silicone bracelet maker machine,Rubber Injection silicone bracelet maker machine |
||
Product Description
| Clamp Force: | 300 Ton | Injection Volume: | 3000cc |
|---|---|---|---|
| Injection Pressure: | 1800kgf/cm² | Plates Size: | 700*700mm |
| Min Mold Thichness: | 100mm | Plunger Stroke: | 400mm |
| Heating Plates Distance: | 5400-600mm | Tie Bar Distance: | 820*395mm |
| High Light: |
hydraulic oil press machine,silicone bracelet maker machine |
||
Main Technical Parameters:
| Model | Unit | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| injection volume | cc | 2000 | 3000 | 4000 | 6000 |
| injection pressure | kgf/cm2 | 1800 | 1800 | 1800 | 1800 |
| Platen Size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min Mold thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500-600 | 500-600 | 500-600 | 600-700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*390 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Track | ||||
| Max Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | KW | 11 | 11 | 11 | 15 |
| Electric Heating Power | KW | 15.3 | 24 | 24 | 29.75 |
| Total Capacity | KW | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 8 | 9.5 | 11 | 14.5 |
| Dimension | mm | 2930*2500*2350 | 3360*2970*2850 | 3650*3050*2900 | 3190*2930*2495 |
Application Products
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Assembled Machines:
