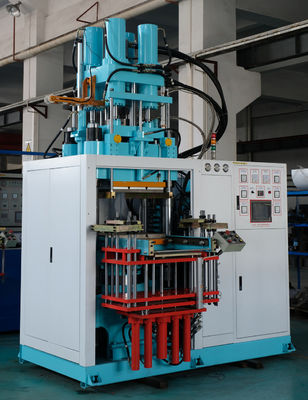

China Factory Direct Sale VI-FO Series Vertical Rubber Injection Molding Machine for making auto parts car parts
Product Details:
| Place of Origin: | China Guangzhou |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 25000 - 48000/set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Clamp Force: | 100ton-800ton | Gross Weight: | 6.5ton-40ton |
|---|---|---|---|
| Injection Volume: | 1000cc-8000cc | Injection Pressure: | 1800kgf/cm2 |
| Platen Size: | 400*400mm - 1000*1000mm | Max Opertaing Pressure: | 20MPa |
| Mold Opening Type: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | Motor Power: | 7.5KW - 22+11KW |
| Heating Power: | 10KW-29.75KW / Steam Or Oil Heating | Total Power: | 17.5ton-47ton |
| Min. Mold Thickness: | 50mm-610mm | ||
| High Light: | 4rt silicone injection molding machine,wire harness silicone injection molding machine,wire harness rubber injection molding machine |
||
Product Description
China Factory Direct Sale VI-FO Series Vertical Rubber Injection Molding Machine for making auto parts car parts
Machine Features:
* This machine is suitable for making car rubber shock absorber, dust cover and hhoses, and some complex structure rubber products.
* Accurate and consistent hydraulic system.
* Special injetion sealing ring structure design, make sure no rubber material overflow.
* Fist in first out injection structure and four cylinders balance injection design.
Technical Parameters:
| Model | 100VI-FO | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO | 800VI-FO |
| Clamp Force(ton) | 100 | 200 | 300 | 400 | 600 | 800 |
| Injection Volume(cc) | 1000 | 2000 | 3000(4000) | 4000 | 6000 | 8000(10000) |
| Injection Pressure(kgf/cm2) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Platen Size(mm) | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 |
| Plunger Diameter(mm) | Φ250 | Φ360 | Φ450 | Φ500 | Customized | Customized |
| Min. Mold Thickness(mm) | 50 | 100 | 100 | 100 | 100 | 100 |
| Plunger Stroke(mm) | 350 | 400 | 400(600) | 400 | 500 | 1000 |
| Heating Plates Distance(mm) | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 1600 |
| Tie Bar Distance(mm) | 515*230 | 640*310 | 820*395 | 820*390 | 970*500 | 1240*590 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||||
| Max. Operating Pressure(MPa) | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power(KW) | 7.5 | 11 | 11 | 11 | 15 | 22+11 |
| Heating Power(KW) | 10 | 15.3 | 24 | 24 | 29.5 | Steam or Oil Heating |
| Total Power(KW) | 17.5 | 26.3 | 35 | 35 | 44.75 | 47 |
| Gross Weight(Ton) | 6.5 | 8 | 9.5 | 11 | 14.5 | 40 |
| Machine Size L*W*H(mm) | 1600*2100 *2800 | 1800*2550 *3100 | 2000*2700 *(3200-3400) | 2000*2700 3200 | 2200*2800 *3500 | 5120*2600 *6600 |
Application Products:
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
