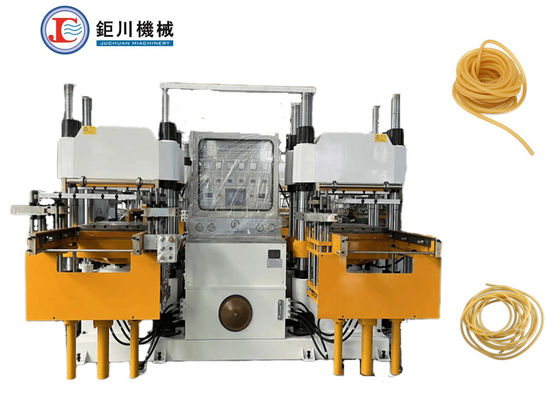

250 Ton Hydraulic Rubber Molding Machine Medical Disposables Rubber Vulcanizing Machine
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | SGS CE ISO9001 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | SD 21400/set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Color: | Blue Or As Your Choice | Clamp Force(Ton): | 100 - 800 |
|---|---|---|---|
| Plunger Stroke: | 200 - 350 | Heating Plates Distance(mm): | 200 - 350 |
| Tie Bar Distance(mm): | 490*230 - 1840*570 | Mold Opening Type: | 2RT-3RT-4RT-Track-Suspension |
| Total Power(KW): | 25.4 - 144.5 | Gross Weight(Ton): | 5 -28.5 |
| High Light: | 250 Ton Hydraulic Rubber Molding Machine,vulcanizing Rubber Medical Disposables Molding Machine,Medical Disposables rubber vulcanizing machine |
||
Product Description
| Clamp Force: | 250 Ton | Plate Size: | 650x600mm |
|---|---|---|---|
| Plunger Stroke: | 250mm | Heating Plate Distance: | 250-350mm |
| Tie Bar Distance: | 745*310 | Gross Weight: | 11 Ton |
| High Light: |
hydraulic vulcanizing machine,rubber vulcanizing equipment |
||
The introduction of 2RT demolding :
- 2RT machine is multi-functional, because it is suitable to be used for top opening double or triple mold plates.
- High force employs dual pressure and each oil system is designed separately. It is consistent, quite and low frequency of malfunctions, two shafts can be operated simultaneous.
- Slow moving speed is available for alignment safer and more accurate.
- Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage
- The speed to open and close the mold is adjustable; it is very accurate and reliable.
Specific Characteristic:
- Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
- Efficient production of rubber part for railway, mining, shipbuilding industries
- Multi-pillar plate vulcanizing machine.
- Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
Machine motions flow:
- Setup the mold(initial status)
- Supply the materials and start the process(close the mold)
- Load the mold
- The main ran goes up rapidly to a predetermined position,
- The main ram goes up slowly, increase the pressure for molding. Expel bubbles out and curing.
- The main ram goes down rapidly.
- Unload the mold at a determined position.
- Open mold and take out the final products.
Main Technical Parameters:
| Model | Unit | 200HF | 250HF | 300HF | 400HF | 500HF |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 500 |
| Operation table size | mm | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 250 | 250 | 300 | 300 | 350 |
| Distance of Thermo-plate |
mm | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 |
| Distance of Tie bar | mm | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 |
| Die sinking type | Track-Suspension-2RT-3RT-4RT | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) |
| Electric Heating Power |
Kw | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 |
| Total Power | Kw | 42 | 45.6 | 63 | 74.8 | 47 |
| Gross weight | Ton | 7.8 | 11 | 15 | 17 | 13.5 |
| Dimension(L*W*H) | mm | 2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
3660*3050 *2350 |
1460*3600 *2380 |
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products:
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Our Factory:
Assembled Machines:
More about us
Our Main Products
Vertical Solid Silicone Injection Molding machine
Vertical Rubber Injection Molding machine
Horizontal Silicone Injection Molding machine
Horizontal Rubber Injection Molding machine
Liquid Silicone Injection Molding machine
Vacuum compression Molding machine
Hydraulic Vulcanizing Hot Press machine
Brake Pads Brake Lining Hot Press Machine
Trade Show
Our Service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
