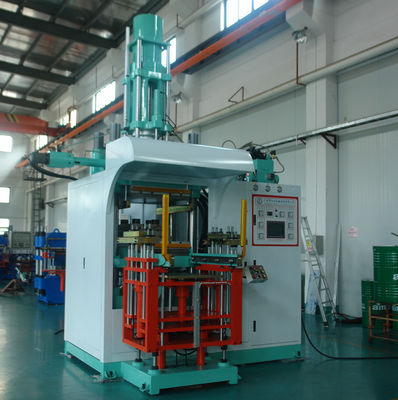

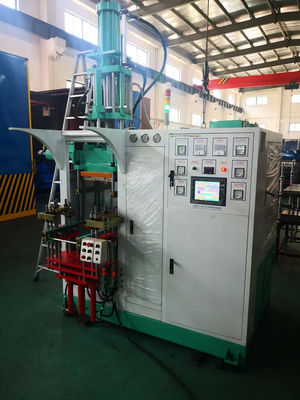

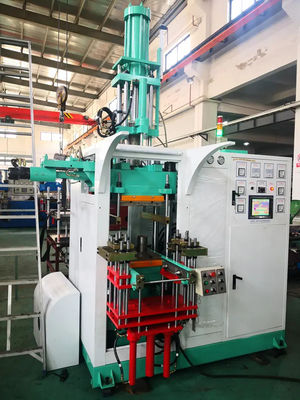

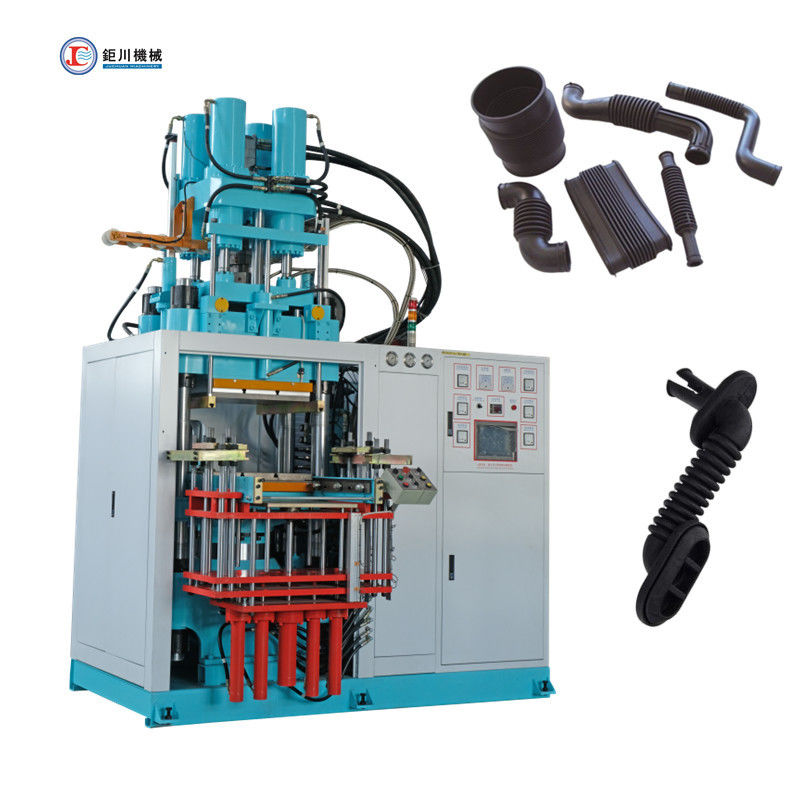

Auto Parts Rubber Injection Molding Maing Machine For Making Rubber Wire Harness Bellows

Auto Parts Making Rubber Injection Molding Machine For Making Rubber Wire Harness Bellows

Machine Type:

• Rubber molding machine, hydraulic molding machine, transfer rubber press, hydraulic injection
• 1000Ton clamp force with large production capacity and high quality.
• All-in-out structure, sprueless injection without material lass controlable injecting material temperature.
• Stable working performance, can normally runing for over 5 years without any mechinery problems
• Low working noises, can bring a quiet working environment

Applications :

• "all-in-out" series silicone rubber injection molding machine is advanced rubber molding technology, it's structure is compact with wide applicability, high efficiency and high quanlity.

• Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, and need high precision injection.

Own Patented "all-in-out" Technology:

1. Visible Feeding System:

• Avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing,
• Efficiently get control of the raw material Plasticizing status, can make adjustment in time.

2. Excellent Plasticizing Effects:

• Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, save much more raw material when plasticizing.
• Easy to switch the different colors of raw material,easy for cleaning.

3. High Temperature Ranges:

• Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
• Good Plasticizing effects can ensure a good injection products.

4. Save Raw Rubber Material:

• Can handle with the raw rubber material as hardness as 85°.
• Improve coefficient of utilization of raw material.

5. all material in, and all out:

• ​All-in-out structure, sprueless injection without material loss controlable injecting material temperature
• Excellent for high precision molding parts

Specific Charateristics:

1. Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.

2. All-in-out structure, sprueless injection without material loss controlable injecting material temperature.

3. Excellent for high precision molding part

4. 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g

5. Anti-collision molding system prevent mold damage occurring from misalignment(patented)

6. Servo-controlled system up to 40% energy saving

7. Proportional backpressure controlling characteristic

Intellectual Property Rights:

• "all-in-out" injection structure technology

• Anti-collision molding system

• Energy saving for 40%

Main Technical Parameters:
