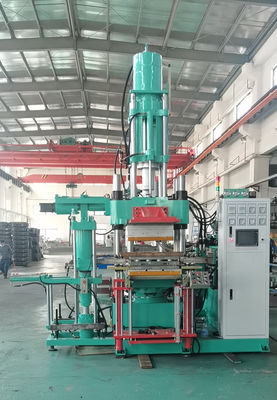

Easy Clear Injection Syringe 200 Ton Automatic Silicone Injection Machine

Easy Clear Injection Syringe 200 Ton Automatic Silicone Injection Machine

Product Details:

Place of Origin: Guangdong China
Brand Name: JUCHUAN
Certification: SGS CE ISO9001:2015
Model Number: JC-VI-AO

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-40000one set
Packaging Details: Fixed with hard straps
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force(Ton): 50-400 Injection Volume(cc): 500-4000
Injection Pressure(kgf/cm2): 1800 Platen Size(mm): 300*300-700*700
Plunger Diameter(mm): 250-500 Or Customized Min. Mold Thickness(mm): 50-100
Plunger Stroke(mm): 300-500 Heating Plates Distance(mm): 350-600
Tie Bar Distance(mm): 400*140-820*395 Mold Opening Type: 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure: 20 Motor Power(KW): 5.5-11
Heating Power(KW): 8.4-24 Total Power(KW): 13.9 - 35
Gross Weight(Ton): 5.5-10 Machine Size L*W*H(mm): 2000*1500*2800 - 2750*2265*4200
High Light:

Automatic Silicone Injection Machine FIFO

,

AC380V Automatic Silicone Injection Machine

,

Silicone Injection Machine FIFO

Product Description

Easy Clear Injection Syringe 200 Ton Automatic Silicone Injection Machine

Detailed Product Description
Plate Size: 550x560mm Clamp Force: 200 Ton
Applications:: Automotive Rubber Parts Injection Structure: All-in-all-out Injection Structure
Technoloyu: Complete Intellectual Property Rights Material Apply: Silicone Or Rubber
Voltage: AC380V Material: Solid Silicone
High Light:

hydraulic power press machine

,

hydraulic oil press machine







Main Problems of Rubber Injection Molding Machine:

  1. First, most of them use a lower system pressure of 21/22 MPA. The model with a nominal capacity of 300 tons can only provide a clamping force of 2600KN, which is insufficient. And the corresponding pumps and valves are cheaper brands such as Japan or Taiwan, which are prone to oil leakage and damage, and the service life is not long. Split valves, pipes, etc. are also used for hydraulic pipelines, which are prone to failure and difficult to maintain.
  2. Second, the design of the fuselage structure is unreasonable. The mold opening space is insufficient, and the mold must be removed before the mold can be opened externally; the design of the guide post is unreasonable, the lock nut is easy to loosen, and the hot plate is unbalanced, which is likely to cause flash and cakes.
  3. Third, the backward advanced late injection unit. Each mold needs to inject about 20-30g of rubber first, and the temperature of the plasticizing cylinder is low. Cleaning and replacing the rubber material is very cumbersome and requires disassembly. In actual use, the most fatal weakness of existing domestic machines is instability, and various unimaginable problems often occur, affecting customer use and production. In addition, the related supporting molds and cold runners have insufficient capabilities, mainly due to the relatively original mold structure and concept, low processing and manufacturing accuracy, and unreasonable surface treatment or simply not to do so.

Rubber Injection Machine Development Trendency:

  • The concept of rubber injection equipment was proposed in the mid-1940s; in the early 1970s, cold-feed injection of rubber injection equipment began to be practically applied in industry.
  • Because the rubber injection equipment can achieve high temperature and rapid vulcanization, the rubber material is preheated and plasticized before entering the mold cavity, the rubber injection equipment products are formed and vulcanized in the sealed high-pressure mold cavity, the product quality of the rubber injection equipment is uniform and stable, and the size of the rubber injection equipment is accurate 1. The rubber injection equipment can realize fully automatic operation. Compared with the traditional molding method, the production efficiency of the rubber injection equipment can be increased by more than ten times. Therefore, the technology of using rubber injection equipment cold feed injection machine to produce molded products is increasingly widely used.
  • The rubber injection equipment injection molding machine is mainly used in the production of auto parts, industrial parts, electrical insulation parts, connector sockets, seals, shock-absorbing pads, shock-proof covers, shoes, bottle plugs, vacuum hoses, jackets, valve cushions , Toys and fitness equipment. With the development of the automotive industry, the quality requirements of seals, electrical connectors, shock absorbers, etc. are becoming higher and higher. The demand for rubber injection equipment has only increased by more than 12,000 times. The strong market demand for rubber injection equipment is rubber The development of injection equipment provides an opportunity.
  • At present, the main manufacturers of rubber injection equipment in the production of rubber injection equipment are: rubber injection equipment REP company in France, rubber injection equipment Austria MAPLAN company, rubber injection equipment Germany WP company, rubber injection equipment STEINL company and rubber injection equipment DESMA, Rubber injection equipment Japan Matsuda Manufacturing Co., Ltd., rubber injection equipment Kobe Machinery Co., Ltd., rubber injection equipment Mito Co., Ltd., rubber injection equipment Japan Steel Works, rubber injection equipment RUTIL Italy, etc.

Main Technical Parameters:



Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25
Electric Heating Power Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000

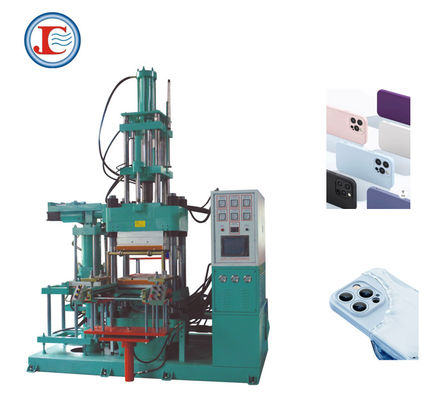

Easy Clear Injection Syringe 200 Ton Automatic Silicone Injection Machine 0

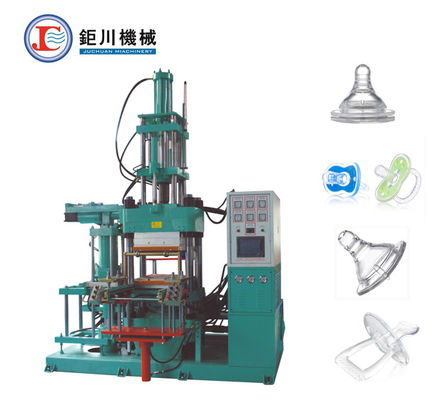

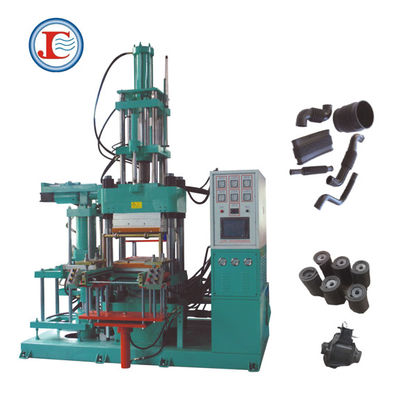

Reference Images:

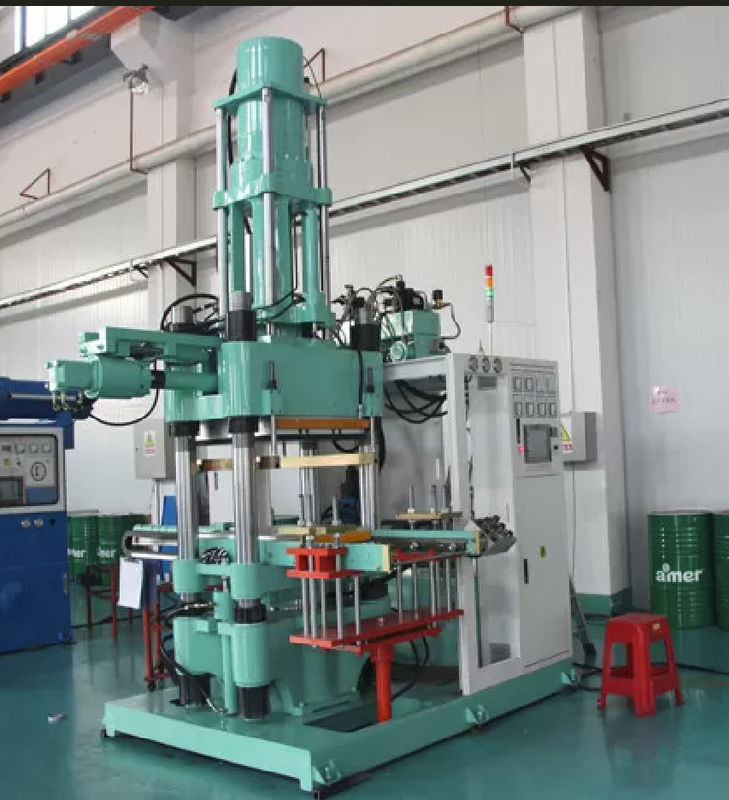

200 Ton Automatic Silicone Injection Machine FIFO Easy Clear Injection Syringe 0
