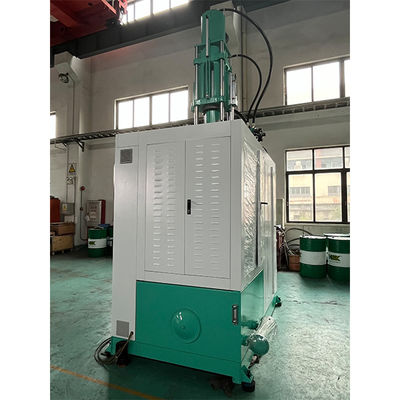

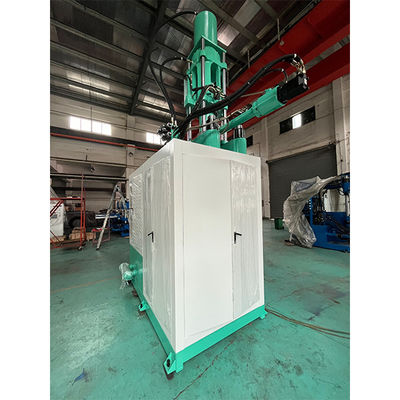

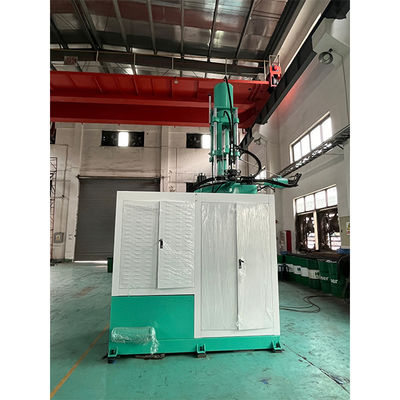

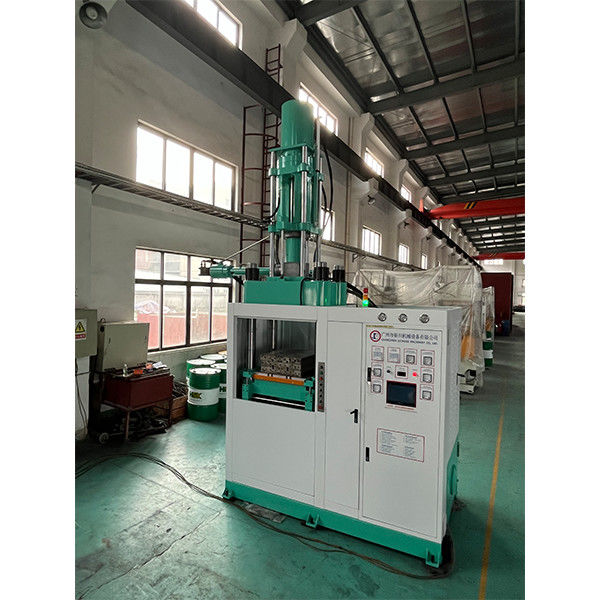

Rubber Injection Moulding Machine 4 Cylinder Transfer Molding Machine 3000cc
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC-300VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
|---|---|---|---|
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | 4 Cylinder Transfer Molding Machine 3000cc,4 Cylinder Rubber Injection Moulding Machine,Rubber Injection Moulding Machine 3000cc |
||
Product Description
| Product Name: | JC-300VI-FO | Injection Structure: | First In First Out |
|---|---|---|---|
| Plate Size: | 700x700mm | Clamp Force: | 300Ton |
| Injection Volume: | 3000cc | Application: | Electronic Rubber Parts |
| Machine Type: | Vertical | Cylinder Quantity: | 4 Cylinder |
| High Light: |
hydraulic rubber moulding machine,rubber mould making machine |
||
Machine Main Features:
- The first plasticized ruber materal goes into the mold cylinder first during injection,which means Fist In Fist Out.This saves production time and raw material when injection.
- Provide big work table Imported double-proportinal trunk pistion oil pump can do any actions without any influence.
- Save 25-50% motor energy cost Use Germany electronic ruler to measure the injection,ensure the high precision injection.
- The sections of injection pressure, flow and pressure holding satisfy any products' technological requirments.
- PLC programmable controller and touch screen make it easy to set up,voew and save Technological parameters.It con also supervise the whole producing,auto diagnose inner fault and give an alarm.
-
First in First out injection unit: the first plasticized rubber material goes into the injection barrel firstly and inject out firstly.
-
This structure unit can reduce the time that rubber material staying in the barrel to escape vulcanized rubber in the barrel.
-
The injection plunger could move outside of the injection barrel, which simplify the operation of rubber changing.
Specific Charateristic:
- Suits engine mountings, CV boots, hoses etc.
- Accurate & consistent hydraulic pressure system. Good aligning of extruder barrel & plunger, lesser friction, preventing material overflow, accurate material measurement and stable injection process.
- Easier maintenance that conventional machine due to bigger space in injection area.
- Anti-collision molding system prevent mold damage occurring from misalignment(Patented).
- Four-cylinder straight lock plate clamping mechanism.
- Good Durability.
Applications:
-
Rubber injection molding machine is advanced rubber molding technology, it's structure is compact with wide applicability, high efficiency and high quanlity.
-
Especially it is suitable for shock absorber boots,grommet isolator, shock absorbing bushing,
-
The rubber products of complex shapes, exhausting difficultly, difficult to molding, and need high precision injection.
Our Services Conception:
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free.
-
Technology training : Our company will offer technology training for your operation.
-
After-sales service: We will supply the free repairment on this machine for one year.
Shipping and Payment:
| Shipping | full container load ( 1-2 machines can be load in a 20"container, 3-4 machines can be loaded in a 40" container ) |
| Payment | T/T ,L/C. etc. |
| 30% Deposit in Advance and 70% Balance Before Shipment. | |
| Service | Pre-sales: Provide professional suggestions, accompany you to complete the purchasing, shipping, installing and trial production. |
| After-sales: 1 year warranty service ; life-long maintenance and consulting . Online remote control for software problems. |
Main Technical Parameters:
| Model | Unit | 100VI-FO | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO |
| Clamping Force | Ton | 100 | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 1000 | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1350 | 1350 | 1350 | 1350 | 1500 |
| Operation table size | mm | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 50 | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 350 | 400 | 400 | 400 | 500 |
| Distance of Thermo- plate | mm | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 515*230 | 640*310 | 820*395 | 820*390 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper Ejector-Lower Ejector | |||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10(7.5kw) | 15(11kw) | 15(11kw) | 15(11kw) | 20(15kw) |
| Electric Heating Power | Kw | 10 | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 20.5 | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 6.5 | 8 | 9.5 | 11 | 14.5 |
| Dimension(L*W*H) | mm | 1600*2100*2800 | 1800*2550*3100 | 2000*2700*3200 | 2000*2700*3200 | 2200*2800*3500 |
