Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamping Force: | 200 Ton | Injection Volume: | 2000cc |
|---|---|---|---|
| Injection Pressure: | 1800kgf/cm² | Plate Size: | 550*560mm |
| Min Mold Thickness: | 100mm | Plunger Stroke: | 400mm |
| Heating Plates Distance: | 500-600mm | Tie Bar Distance: | 640x310mm |
| Max Operating Pressure: | 20MPa | Motor Capacity: | 15HP |
| Heater Capacity: | 15.3KW | Total Capacity: | 30.3KW |
| Gross Weight: | 8ton | Machine Dimensions: | 1800*2550*3100mm |
| High Light: | rubber injection moulding machine,hydraulic rubber moulding machine |
||
MITSUBISHI Original PLC 200 Ton Solid Silicone Injection Machine Commercial Application
Hydraulic Device Of Rubber Injection Machine:
The basic types of driving of rubber injection machines mainly include mechanical transmission (motor and gear reduction gearbox); hydraulic transmission (oil pump and its components); hybrid transmission (injection device is hydraulic, and the clamping device uses mechanical transmission).
Compared with mechanical transmission, hydraulic transmission generally has the following advantages: speed and pressure and stroke can be set arbitrarily, the setting method is also convenient, the pressure value is easy to read directly; easy to realize pressure and speed program control and centralized control of the machine Smooth movement, self-lubricating and anti-static properties; easy to achieve overload protection.
The main disadvantages are: temperature and oil temperature changes will affect the speed and pressure of the system; speed and position accuracy is not mechanically accurate; many components, low efficiency (power consumption, water consumption, fuel consumption is relatively large); maintenance technology High requirements; noise, oil pollution.
As the hydraulic components are manufactured and the level of maintenance continues to increase, the above disadvantages are overcome to varying degrees. At the same time, the injection machine is getting higher and higher in terms of control technology. Therefore, hydraulic drive type injection machines are currently the most.
Advantages of the hydraulic injection technology of the rubber injection machine include: For system-related reasons, the hydraulic transmission also has some advantages that the motor does not have. The hydraulic drive directly produces a linear movement that does not require any mechanical transformation and has a wide range of force and speed ratios. Relative to the load, the hydraulic system is overloaded and the stored energy can be used immediately.
How to choose a rubber injection machine?
Our specification list:
| E-1.PLC Programmble Controller | Japan Mitsubishi |
| E-2.Touch Screen (Human Machine Interface) | Taiwan Panelmaster |
| E-3. Temperature .Controller | Japan OMRON |
| E-4. Operation Switch | Schneider |
| E-5. Magnetic Switch (Motor, Heater) | Schneider |
| E-6. Touch Contactor/ Micro Circuit Breaker | Japan Fuji |
| E-7 solid state relay(SSR) | Taiwan Tian Hao |
Machine Main Parameter:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

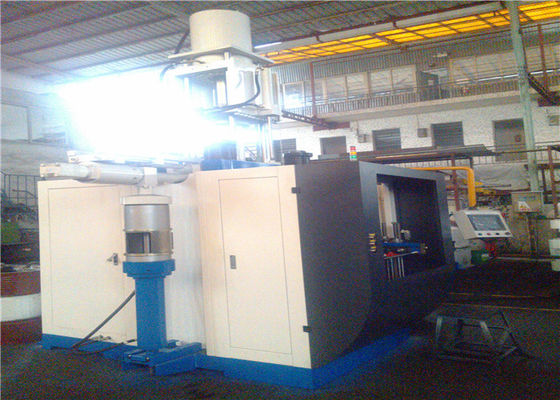

Reference Image:
