200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder

China 200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder supplier
200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder supplier 200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder supplier 200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder supplier 200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder supplier

Large Image :  200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder

Product Details:

Place of Origin: China
Brand Name: Juchuan
Certification: SGS CE
Model Number: JC-200BDM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: shrink film packing
Delivery Time: 45 days after deposit received
Contact Now
Detailed Product Description
Clamp Force: 200 Ton Plate Size: 550*560mm
Diameter Of Cylinder:: Φ350mm Machine Weight: 7.8ton
Daylight: 250-350mm Max. Operating Pressure: 20 Mpa
Tie Bar Distance: 650*320mm Mold Open Way: 2RT-3RT-4RT

Disc Brake Pads Molding Rubber Hot Press Machine With Isobaric Cylinder

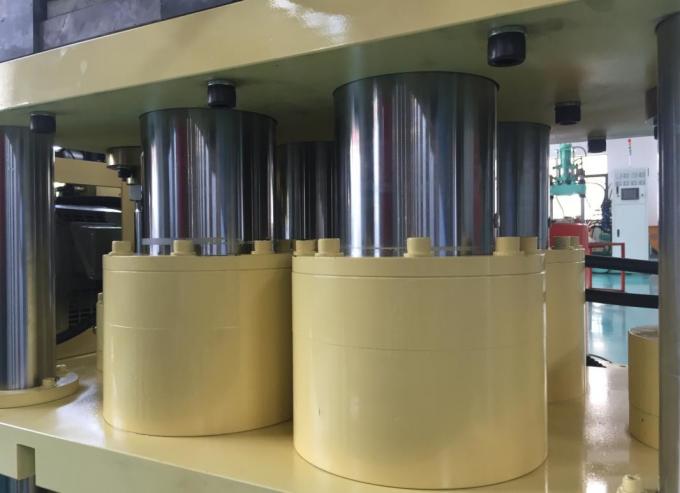

Why need isobaric cylinder ?

1. 4 cylinder isobaric injection design, full automatically adjust; ensure every brake pad in same pressure and density when injection.
2. Save 30-40% raw material when injection.
3. Ensure every brake is exactly the same, suitable for making high quality brake pads

200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder







How to produce brake pads?

  1. Mixing powder
  2. put powder in to cool press machine
  3. pick up formed mixture from cool press machine
  4. Put formed mixture and steel back into hot press machine, then close the mold and waiting for curing
  5. Put the pads into oven for baking
  6. Put pads into Spray line for coating
  7. put pads into the grinding machine and make it smooth
  8. Put smooth pads into Slotted guide angle integrated machine
  9. Spray coating for the steel back
  10. Quality checking and packing



what brand name spare parts our machine use?

Main Item:

B-1. Hydraulic Pump Japan Yuken
B-2. Control System Plc(Make-Japan Mitsubishi)
B-3.Main Motor Taiwan Tatung
B-4. Vacuum Pump China Rufus





Oil Hydraulic System

C-1. Main Cylinder Seal Japan NOK
C-2.Pressure Gage Taiwan
C-3. Magnetic Valve Taiwan HYTEK
C-4. Other Valve Taiwan
C-5. Pressure Pickup HUBA, Switzerland







machine specs :

Model Unit 200HF 400HF
Clamping Force Ton 200 400
Operation table size mm 550*560 850*850
Plunger stroke mm 250 300
Distance of Thermo-plate mm 250-350 300~400
Distance of Tie bar mm 650*320 940*450
Die sinking type 2RT-3RT-4RT
Max Operating Pressure Mpa 20 20
Motor Power hp 7.5kw*2 15*2(11kw*2)
Electric Heating Power Kw 13.5*2 26.4*2
Total Power Kw 42 74.8
Gross weight Ton 7.8 17
Dimension(L*W*H) mm 2930*2350*2050 3660*3050*2350

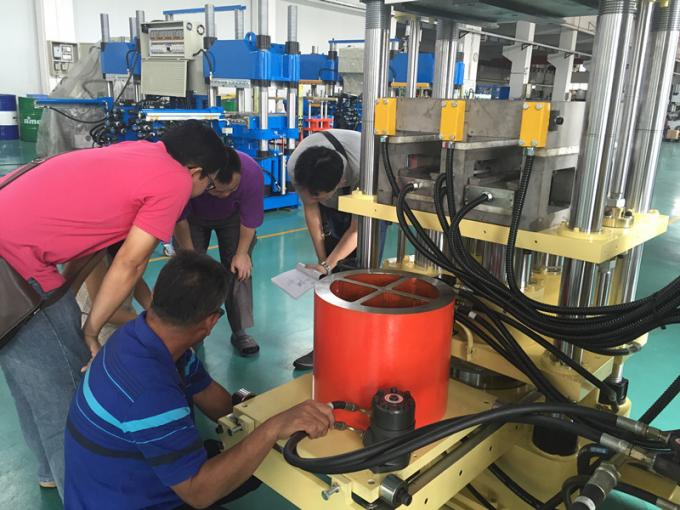

Machine picture:
200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder



      200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder

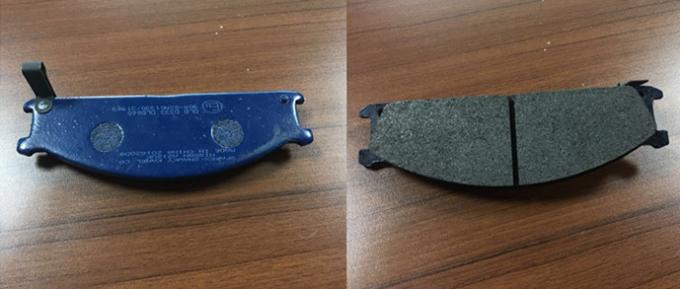

Finish products:

200 Ton Rubber Brake Pad Making Machine / Hot Press Machine With Isobaric Cylinder



If you want to see machine video, how our machine make disc brake pad, please send me a enquiry!
