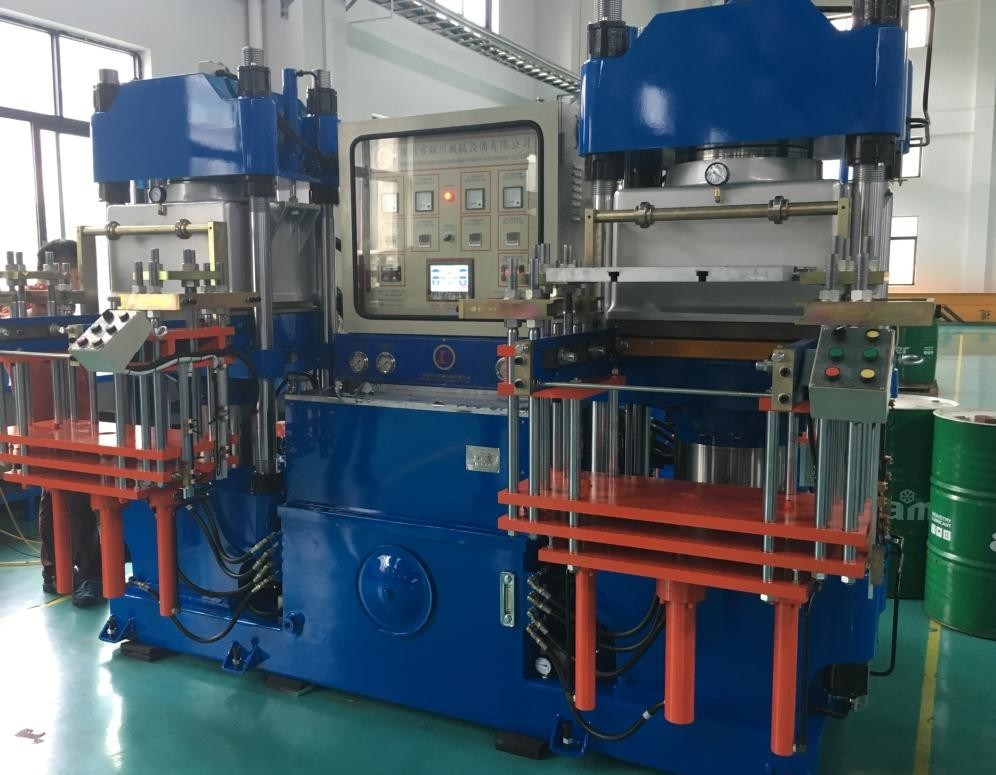

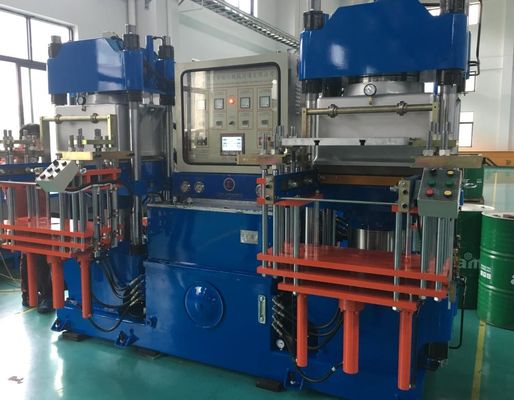

Telescoping Rubber Compression Machine , Rubber Vulcanizing Press Machine For Automobile / Truck

Telescoping Rubber Bellow 200 Ton Vacuum Compression Molding Machine For Automobile And Truck


Specific Characteristic:

1. Vacuum Capability: It is capable of being high degree of vacuum. A standard vacuum method is used to make consistent high quality products.
2. Mold Opening Design: A patent is granted for a new type rail mold opening. The opening angle is up to 90 degrees. It is very convenient for operation. Another feature of the new rail mold opening is that there is no need to remove the base of the rail mold opening while replacing molds. It promotes the work efficiency and safety.
3. Mold Loading / Unloading Design: Incorporate a special design into the mechanism of mold loading / unloading. It is durable, quiet. speedy and stale.
4. Hydraulic System Design: The system employs both high and low pressure pumps and is able to close both presses simultaneously. The system is quiet, reliable with minimum maintenance required.
5. Alignment: Two speeds of mold calibration are provided for users to choose form, fast and slow. It makes the calibration more safe and more accurate.


​ Main Feature:

1. Every work station can be used independently with respectively hydraulic and power motor.

2. Special design movement platen with consistent 3. clamping force for better molded part quality.

3. High vacuuming/degassing speed.

4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

5. Adaptable with different mold model.

6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.


2RT Machine motion flow:

1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.


The Main parameter:



Product Show:

Finished Product:
