Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 200 Ton | Plate Size: | 550x560mm |
|---|---|---|---|
| Type: | Double Work Station | Total Capacity: | 42kw |
| Mold Opening Way: | 2rt-3rt-4rt | Plunger Storke: | 250mm |
| Operating Pressure: | 20 Mps | Gross Weight: | 7.8 Ton |
| High Light: | rubber vulcanizing equipment,rubber vulcanization molding machine |
||
200 Ton Silicone Glove Making Silicone Molding Machine With 2 Pressing Plate
Main Features:

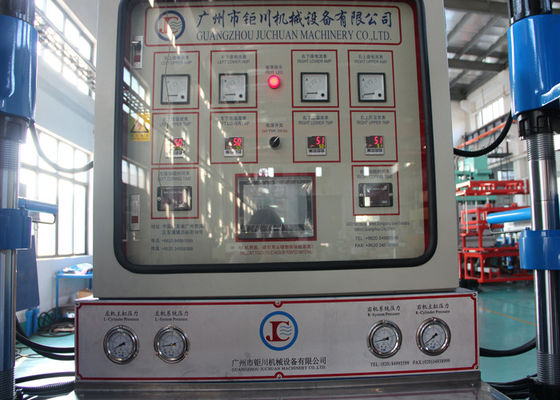

1. PLC, HMI control, manual and automatic control can be achieved. Automatic control can realize functions such as mold closing, exhaust, temperature control, vulcanization timing, alarm, and open mold unloading; the touch screen can timely display the temperature of each heating zone of the hot plate.
2. The hydraulic cylinder plunger is made of chilled hard alloy cast iron with a dense texture. It is made by grinding after casting; the seal form of the hydraulic cylinder is YX type seal ring.
3, the hot plate edge hydraulic automatic iron, under the action of the four cylinders on both sides of the hot plate at the same time the advance and retreat; the hot plate at both ends with anti-pad iron overlapping device.
4. Each heating zone of the hot plate is provided with a set of valve groups for adjusting the temperature. Under the control of the PLC, the temperature of each heating zone of the hot plate is ensured to be uniform.

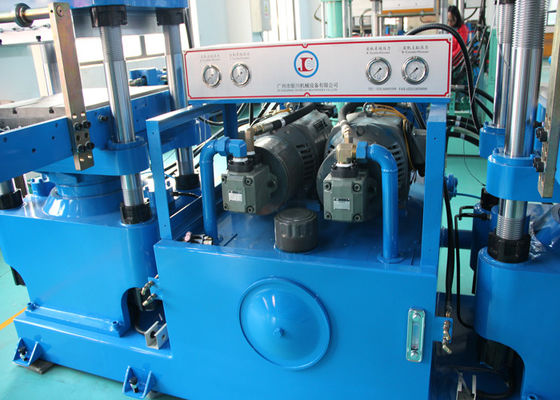

5, the hydraulic system: the use of well-known brands of hydraulic stations, under the control of the PLC can be achieved automatically: mold, exhaust, open mold unloading.
Machine characteristic:
200 Ton paremeter:
Type: 4 Columns
Clamping Force: 200 Tons
Type of Oil Cylinder: with speed auxiliary cylinder
Diameter of Cylinder: Φ250mm
Cylinder Stroke: 250 mm
Distance of Heating Plate: 250-350 mm
Heating Plate size: 550*560 mm
Distance of Tie bar: 640*310mm
Motor Power: 7.5kw*2
Gross weight: 7.8 ton
Dimension (L*W*H): 2930*2350*2050mm
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach yu about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
Machine main body item:
| NO. | Item | Brand name |
| 1 | solenoid valve | Taiwan Hytek |
| 2 | control system(PLC) | Japan Mitsubishi |
| 3 | solid state relay(SSR) | China Sonon |
| 4 | oil pump | Japan Yuken |
| 5 | human machine interface(HMI) | Taiwan Panelmaster |
| 6 | mold base casting | Ductile cast iron(QT500-07) |
| 7 | main cylinder | one piece cast molding, ductile cast iron(QT500-07) |
| 8 | main motor | Taiwan Tatung |
| 9 | with PLC contact protection device | |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
