Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Model Number: | JC-300VI-AO | Clamp Force: | 300 Ton |
|---|---|---|---|
| Injection Pressure: | 1800kgf/cm² | Plunger Stroke: | 400-500mm |
| Injection Volume: | 3000cc | Motor Capacity: | 11KW |
| Motor Power: | 15HP | Die Sinking Type: | 2RT/ 3RT/ 4RT |
| High Light: | silicone injection machine,silicone molding machine |
||
High Cold Temp Precision Rubber Parts Making Equipment 300 Ton Silicone Moulding Injection Machine For Car Industry
Our Progressive Technology All In Out Machine:
1. Visible material handling system:
According to the temperature before vulcanization / hardness / plasticization, can effectively control the plasticization of raw materials, and timely adjustment.
2. Plasticizing effect:
Plasticizing effect is very good, effectively reduce the rubber waste, to avoid blocking the cylinder, easy to clean. Replacing different colors of raw materials is very convenient.
3. High temperature range:
Simple structure, plasticizing temperature between 90 ℃ to 100 ℃, to ensure good plasticizing effect.
4. Save raw rubber material:
The same as the raw rubber material processing hardness of 85 °, can improve the raw materia utilization factor.
5. All-in-out structure, sprueless injection without material lass controlable injecting material temperature.
6. Stable working performance, can normally runing for over 5 years without any mechinery problems
7. Low working noises, can bring a quiet working environment
Machine Feature:
1. Suitable for precision temperature sensitive rubber parts, especially NBR products, used in automotive and electronic rubber parts.
2. Specially designed all-in and out structure, according to the field control injection temperature.
3. High-precision molding parts, to ensure efficient operation of machinery.
4. High precision, 1000cc injection volume measurement accuracy of ± 0.1 g, 5-10 times higher than the traditional injection molding machine.
5. The company's patent: anti-collision molding system to avoid damage caused by misplaced mold.
6. Servo control system - energy saving up to 40%
7. Proportional back pressure control. Can effectively control the pressure and the ratio of raw materials.
300 Ton Machine Paremeter :
| Model | Unit | 300VI-AO |
| Clamping Force | Ton | 300 |
| Injection Capacity | cc | 3000 |
| Injection pressure | kgf/cm² | 1800 |
| Operation table size | mm | 700*700 |
| Min. Mold Thickness | mm | 100 |
| Plunger stroke | mm | 400 |
| Distance of Thermo-plate | mm | 500～600 |
| Distance of Tie bar | mm | 820*395 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |
| Max. Operating Pressure | Mpa | 20 |
| Motor Power | hp | 15 |
| Electric Heating Power | Kw | 24 |
| Total Power | Kw | 39 |
| Gross weight | Ton | 9 |
| Dimension | mm | L2750*W2265*H4200 |
Other capacity parameter:
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 |
| Injection Capacity | cc | 500 | 500 | 2000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 |
| Min. Mold Thickness | mm | 50 | 50 | 100 |
| Plunger stroke | mm | 300 | 350 | 400 |
| Distance of Thermo-plate | mm | 350-450 | 400～500 | 500～600 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 |
| Electric Heating Power | Kw | 8.4 | 10 | 15.3 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 |
| Gross weight | Ton | 5.5 | 6 | 7.5 |
| Dimension | mm | 2000*1500*3200 | L2400*W1650*H3200 | L2600*W2000*H4000 |
Product Show:

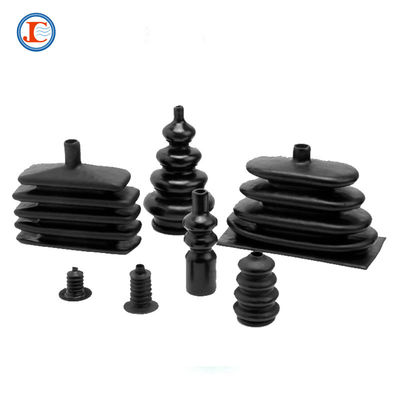

Finished Product:
