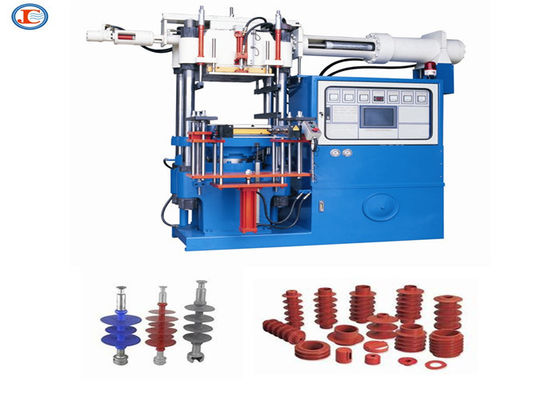

Industrial Horizontal Injection Molding Machine Polymer Insulator Injection Machine

Industrial Horizontal Injection Molding Machine Polymer Insulator Injection Machine

why need horizontal injection machine?

1.  The machine center of gravity is low, relatively stable, the material supply is convenient, easy to examine and repair, have no height restriction to the workshop.

2. Special two-stage feeding design, so that the raw materials to obtain the best exhaust effect and the efficacy of non-dead materials.

3. Especially suitable for rubber fittings with hardness below 80 degrees, such as insulators, arresters, etc.

What brand name part we use as machine body?

B-1. Hydraulic Pump :Japan Yuken

B-2. Control System :PLC Japan Mitsubishi

B-3. Main Motor :Taiwan Tatung

B-4. Vacuum Pump :China Rufus

C-1. Main Cylinder Seal :Japan NOK

C-2.Pressure Gage :Taiwan

C-3. Magnetic Valve :Taiwan HYTEK

C-4. Other Valve :Taiwan

C-5. Pressure Pickup :HUBA, Switzerland

300 ton horizontal rubber synthetic injection machine

Clamping Force: 300 ton

Injection Capacity: 3000cc

Injection pressure: 2000kgf/cm²

Plate size: 700*700mm

Min. Mold Thickness: 200mm

Plunger stroke: 400mm

Distance of Thermo-plate: 600mm

Distance of Tie bar: 820*395mm

Die sinking type: 2RT-3RT-4RT

Max. Operating Pressure: 20Mpa

Motor Power: 11kw

Heater Power: 24kw

Total Power: 39kw

Gross weight: 9.5 ton

Dimension: L3500*W2600*H2700mm

Other capacity parameter:

Machine details:

If you want machine video and see how our machine produce silicone rubber products ,

please send enquiry to us!
