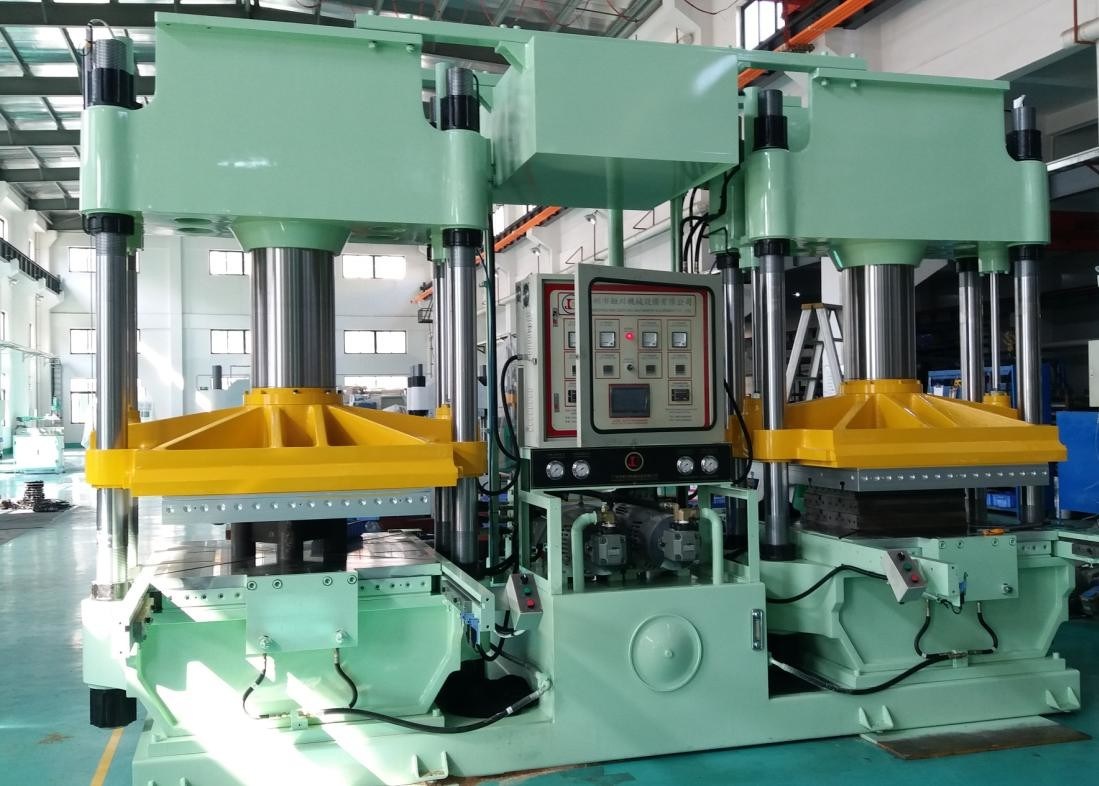

High Grade 69KW Vacuum Compression Molding Machine For Complicated Rubber Bushing Making

Complicated Rubber Bushing Making Mould 300 Ton Vacuum Compression Molding Machine For Industry



2RT Machine motion flow:

1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.


3RT Machine motions flow

1. Unload the mold
2. M1 goes up to open the mold
3. M2 goes up and separates from the mold
4. M2 goes down and close the mold
5. M1 goes down and close the mold
6. Load the mold


4RT Machine motions flow:

1. Unload the mold
2. M1 goes up to open the mold
3. M2 goes up and separates from the mold
4. M3 follow the K goes backward
5. M2 goes down
6. L goes up take out the finished product, clean and place new material for re-start.
7. L goes down; M2 goes up, M3 follow the bottom plate goes forward.
8. M2&M1 go down.
9. Mold in, main ram goes up and molding than main ram goes down and mold-out when completed the process.

300Ton parameter:

The other capacity parameter:



Product Show:


Finished Product:
