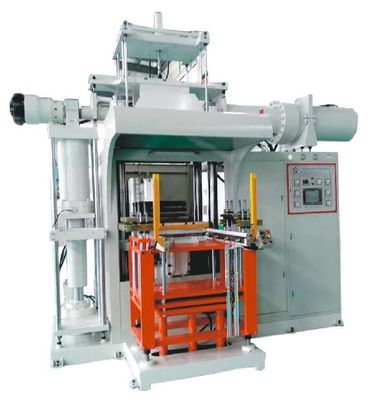

500 Ton LSR Insulator Injection Molding Machine For Electric Appliance Making

500 Ton LSR Insulator Injection Machine For Electric Appliance Making

 Liquid Silicone Mainly Applications:

• Liquid silicone rubber (silicone rubber) has excellent physical properties. The application of liquid silicone rubber injection molding machine is more and more widely used in the production of rubber roller products such as OA rubber roller and silicone rubber manual dust removal roller; high voltage insulator and lightning arrester compound.
• High-voltage devices such as jackets, wall bushings, cold-shrinkable cable accessories, glass-sealed terminals, computers, electronic equipment, sealing rings, automotive and aerospace equipment, sports equipment such as diving masks, medical supplies, silicone rubber tableware, Baby pacifiers, etc.
• Full computer control; accurate measurement, uniform mixing; static pressure injection static pressure injection, liquid control or gas control nozzle, cooling plate, injection tube and nozzle with cooling water channel; easy and simple cleaning, reducing manpower and materials waste.


Main Characteriestics & Features:

1. Equiped with infrared camera and automatic alarm function in machine safety controlling
2. Unique two stage material injecting mechanism for better de-gasing purpose
3. Improvement deign of injection molding machine seat that able to enhance molded part quality and cosmectic
4. anti-collision molding system prevent molding damageoccurringfrommisalignment ( Patented)
5. Equiped with silicone rubber device, easy for uploading the raw material.
6. Suitable for all kinds of rubber with hardness less than 80 shore A, silicone rubber parts, fire retardant parts etc
7. Quiet working bring with less noices, to be more environment friendly.
8. Energy conservation, less power consumption.

1. LSR is a two-component liquid material divided into A component and B component. The operation of the mixer thoroughly mixes the A component and the B component in a precise 1:1 ratio. Because some products are colored, they are equipped with a color pump set and a color metering part. The A+B components, additives, colors, etc. are thoroughly mixed and then enter the plasticizing system.
2. The plasticizing screw has the functions of homogenization and mixing, and the mixture is injected into the hot mold through a screw, and the curing reaction of the silica gel occurs at a mold temperature of 170 to 200 °C. When using a cold runner system, it is worth noting that the runner is cold enough. In order to avoid leakage, the needle valve is mounted on the surface of the mold part, and the needle valve immediately closes the nozzle when the injection is completed.
