Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Clamp Force: | 200 Ton | Plate Size: | 550x560mm |
|---|---|---|---|
| Tie Bar Distance: | 650x320mm | Type: | Double Work Station |
| Gross Weight: | 7.8 Ton | Total Capacity: | 42kw |
| Mold Opening Way: | 2rt-3rt-4rt | Plunger Storke: | 250mm |
| High Light: | hydraulic vulcanizing machine,rubber vulcanizing equipment |
||

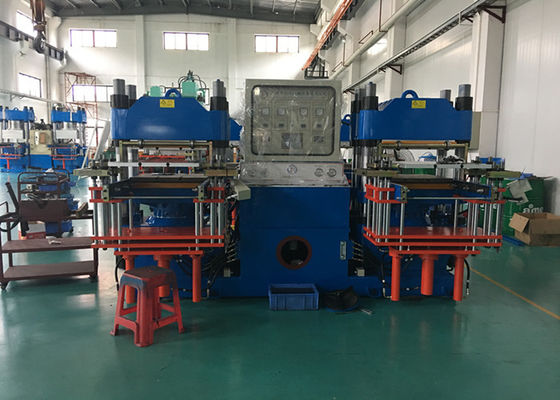

200 Ton Rubber Stopper Making Vulcanizing Machine With Double Work Plate
200 Ton paremeter:
Type: 4 Columns
Clamping Force: 200 Tons
Type of Oil Cylinder: with speed auxiliary cylinder
Diameter of Cylinder: Φ250mm
Cylinder Stroke: 250 mm
Distance of Heating Plate: 250-350 mm
Heating Plate size: 550*560 mm
Distance of Tie bar: 640*310mm
Motor Power: 7.5kw*2
Gross weight: 7.8 ton
Dimension (L*W*H): 2930*2350*2050mm
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach yu about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
Main Features:
1..Four columns, all adopt 40Cr hard chromium plating, superior performance, not easy to break.
2. Special design for reinforcement, it has good bearing capacity.
3. Seamless steel pipe connection to ensure there is no oil spilling.
Machine main body item:
| NO. | Item | Brand name |
| 1 | solenoid valve | Taiwan Hytek |
| 2 | control system(PLC) | Japan Mitsubishi |
| 3 | solid state relay(SSR) | China Sonon |
| 4 | oil pump | Japan Yuken |
| 5 | human machine interface(HMI) | Taiwan Panelmaster |
| 6 | mold base casting | Ductile cast iron(QT500-07) |
| 7 | main cylinder | one piece cast molding, ductile cast iron(QT500-07) |
| 8 | main motor | Taiwan Tatung |
| 9 | with PLC contact protection device | |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
