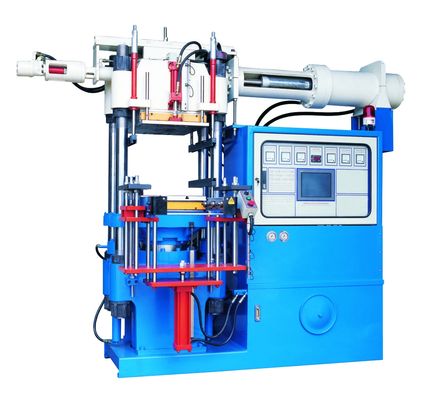

200 Ton Horizontal Silicone Injection Molding Machine 3 Phase Current 380 V Power

200 Ton Horizontal Silicone Injection Molding Machine 3 Phase Current 380 V Power

Clamping Device Functions:

• The main function of the clamping system is to ensure the locking, opening and closing of the forming mold system, take out the product, and ensure accurate data movement. She mainly adjusts the structure by fixed template, movable template, tie rod, cylinder and mold, and the product is ejected. The mechanism and the like constitute a full hydraulic clamping device to uniformly clamp the mold with a large area and high clamping mode input pressure. The clamping force is generated by four columns and a small number of moving parts, the clamping time is short, and the mold height is automatically adjusted. The four-column clamping unit is suitable for the production of small rubber products as well as door and window seal corner joints and profiled parts. The C-frame means that the injection mold can be easily accessed from three sides. Self-priming valve type clamping device with built-in booster cylinder

1.  Working principle: When clamping, the pressure oil enters from the central pipe of the quick-moving cylinder plunger. Due to the small inner diameter of the quick-moving cylinder, rapid mold shifting can be realized. At the same time, the main cylinder has a negative pressure, and the pressure oil in the auxiliary tank is filled with oil through the self-suction port to the main cylinder. When the fast cylinder oil supply ends, the movable die plate stops moving, the oil filling stops, the self-priming valve moves forward, and the self-priming port passage is cut off. Then pressurization mode locking is performed.
2. Structural features: Since the rapid mold shifting cylinder, the boosting cylinder, the self-priming valve, the clamping cylinder, and the ejection cylinder are all buried in the clamping cylinder, the structure is very compact. The high-pressure system is only limited to the mold-locking cylinder. The sealing requirements for the oil-circuit system are relatively low. Only medium-pressure can be used, which can save energy, and can realize fast, stable and reliable mold clamping without setting up a special mold-adjusting device. The clamping force can be directly displayed and stored, which is very advantageous for reducing the manufacturing cost and facilitating the operation. The utility model can overcome the defects that the clamping angle of the toggle-type clamping device is not easy to adjust due to manufacture and installation, and the clamping force cannot be displayed.
