Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Min Mold Thickness: | 200mm | Plate Size:: | 700*700mm |
|---|---|---|---|
| Plunger Stroke:: | 400mm | Distance Of Thermo-plate:: | 600mm |
| Heater Power:: | 24kw | Distance Of Tie Bar:: | 820*395mm |
| Injection Capacity:: | 3000 Cc | Motor Power:: | 11kw |
| High Light: | automatic rubber moulding machine,rubber transfer moulding machine |
||

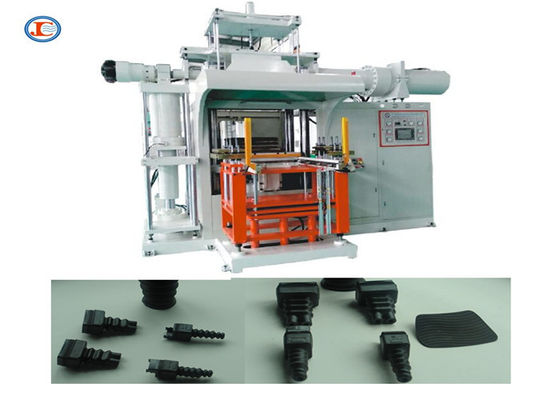

Electric Insulator Making Machine 300 Ton With Horizontal Rubber Injection Molding
Horizontal injection machine Feture
1. Equiped with infrared camera and automatic alarm function in machine safety controlling.
2. Unique two stage material injecting mechanism for better de-gasing purpose.
3. Improvement deign of injection molding machine seat that able to enhance molded part quality and cosmectic.
4. Anti-collision molding system prevent molding damageoccurringfrommisalignment ( Patented).
5. Equiped with silicone rubber device.
6. Suitable for all kinds of rubber with hardness less than 80 shore A, silicone rubber parts, fire retardant parts etc
How to operate this machine?
Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product
300 ton horizontal rubber synthetic injection machine
Clamping Force: 300 ton
Injection Capacity: 3000cc
Injection pressure: 2000kgf/cm²
Plate size: 700*700mm
Min. Mold Thickness: 200mm
Plunger stroke: 400mm
Distance of Thermo-plate: 600mm
Distance of Tie bar: 820*395mm
Die sinking type: 2RT-3RT-4RT
Max. Operating Pressure: 20Mpa
Motor Power: 11kw
Heater Power: 24kw
Total Power: 39kw
Gross weight: 9.5 ton
Dimension: L3500*W2600*H2700mm
Other capacity parameter:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Machine details:
If you want machine video and see how our machine produce silicone rubber products ,
please send enquiry to us!
