Quality - Oriented, Offering Customer with Optimum Productivity and Profitability.
Product Details:
Payment & Shipping Terms:
|
| Model Number: | JC-100VI-AO | Clamp Force: | 100 Ton |
|---|---|---|---|
| Motor Capacity: | 7.5KW | Machine Size: | 2400*1650*3200 |
| Plate Size: | 400*400mm | Daylight:: | 400～500mm |
| Motor Power: | 7.5KW | ||
| High Light: | silicone injection machine,silicone molding machine |
||

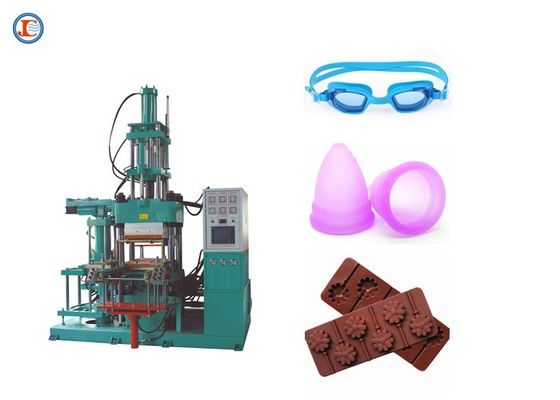

Silicone Injection Menstrual Cup Making Machine To Produce Colorful Lady Cup
why choose "all-in-out" Silicone Injection Machine?
1. Visible feeding system: the temperature and speed of plasticizing can be visible and adjustable. To avoid the traditional techniques this cannot know the situations like temperature/hardness/Plasticizing before vulcanizing, you can see the temperature of rubber and know whether it’s air exhausted or not, in this way, you can get control of the raw material Plasticizing status, and make adjustment in time to ensure the 100% plasticizing effect.
2. Simple structure, Plasticizing temperature between 90℃ and 100℃, ensure good Plasticizing effects.
3. All in all out rubber injection machine is the key to solve the rubber plasticizing problem, such as Ineffective injection and agglutination.
4.Excellent Plasticizing effects reduce the waste rubber material; avoid blocking the cylinder, easy for cleaning. And it’s also easy to change the different colors of raw material.
what items our machine use as main body?
B-1. Hydraulic Pump :Japan Yuken
B-2. Control System :PLC Japan Mitsubishi
B-3. Main Motor :Taiwan Tatung
B-4. Vacuum Pump :China Rufus
C-1. Main Cylinder Seal :Japan NOK
C-2.Pressure Gage :Taiwan
C-3. Magnetic Valve :Taiwan HYTEK
C-4. Other Valve :Taiwan
C-5. Pressure Pickup :HUBA, Switzerland
100 Ton Machine Paremeter:
Clamping Force:100 ton
Injection Capacity: 500cc
Injection pressure: 1800 kgf/cm²
Operation table size: 400*400mm
Min. Mold Thickness: 50mm
Plunger stroke: 350mm
Daylight: 400～500mm
Distance of Tie bar: 515*230mm
Die sinking type: 2RT
Max. Operating Pressure: 20 Mpa
Motor Power: 7.5KW
Electric Heating Power: 10kw
Total Power: 20.5kw
Gross weight: 6 ton
Dimension: L2400*W1650*H3200mm
Other parameter:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 |
| Injection Capacity | cc | 2000 | 3000 | 4000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 |
| Min. Mold Thickness | mm | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 |
| Distance of Thermo-plate | mm | 500～600 | 500～600 | 500～600 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | |||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 |
| Total Power | Kw | 30.3 | 39 | 39 |
| Gross weight | Ton | 7.5 | 9 | 10 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 |
Product Show:
