China Flexible Manufacturing Silicone Rubber Press Machine For Making Rubber Products from JUCHUAN MACHINERY
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 15000 - 38000/set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 1200 | Platen Size(mm): | 400*460 - 1600*2200 |
|---|---|---|---|
| Plunger Stroke(mm): | 300 | Heating Plates Distance(mm): | 200 - 550 |
| Tie Bar Distance(mm): | 490*230 - 1105*475 | Mold Opening Type: | 2RT-3RT-4RT-Track-Suspension |
| Max. Operating Pressure(MPa): | 20 | Dimension(L*W*H): | 2930*2350*2050mm |
| Weight: | 5000 | Warranty: | 1 Year |
| Power (kW): | 42 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Distance Of Tie Bar(mm): | 785*380 | Upper Platen Size (mm): | 680*680 |
| Lower Platen Size(mm): | 700*800 | Injection Rate: | Adjustable |
| Injection Weight: | 7.8ton | Power(W): | 69KW |
| Power: | 46kw | Port: | Guangzhou |
Product Description

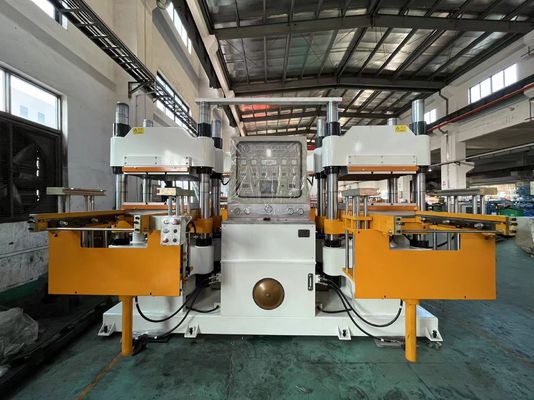

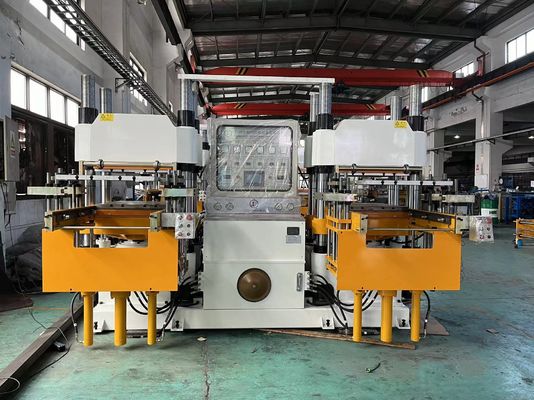

China Flexible Manufacturing Silicone Rubber Press Machine
For Making Rubber Products from JUCHUAN MACHINERY
Machine Features
* Adaptable with different demolding methods like 2RT/3RT/4RT.
* Accurate mold-in and mold-out position to ensure no damage to the molding.
* Dual motor design for safe and independent working of the twin station.
Technical Parameters
| Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
| Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
| Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
| Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
| Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
| Machine Size L*W*H (mm) | 2500*2080*1950 | 2930*2350*2050 | 3190*2780*2230 | 3360*2970*2250 | Customized | 3660*3050*2350 | 1460*3600*2380 | 2350*5400*2950 |

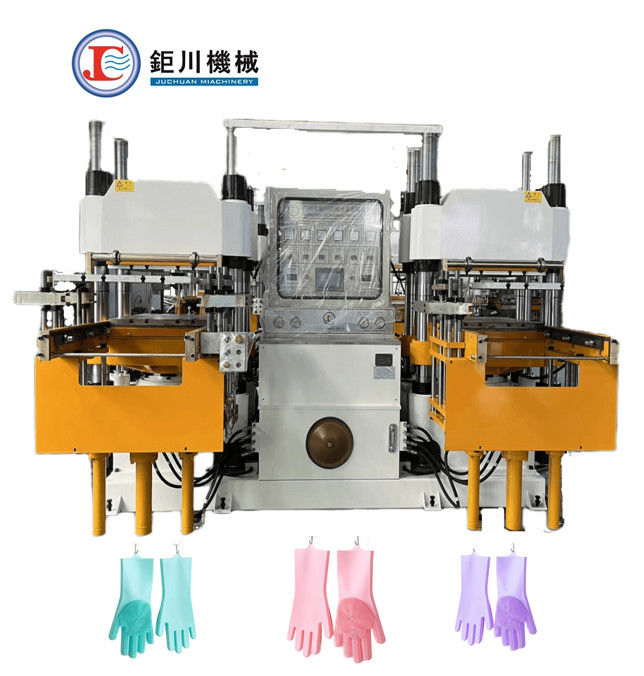

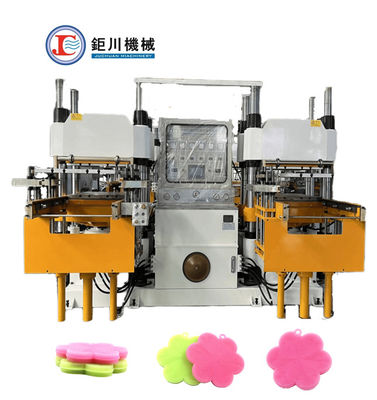

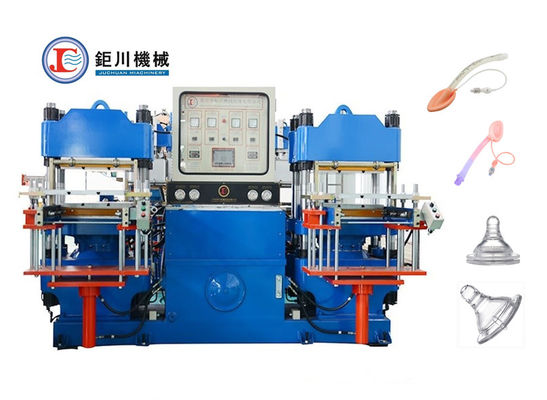

Application Products
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Exhibition
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
