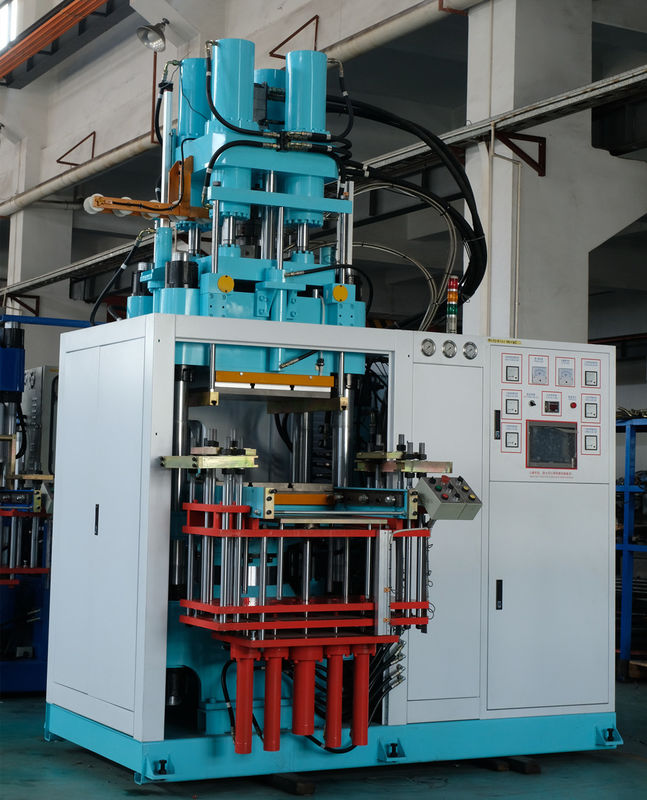

Motorcycles Parts Making Machine Vertical Rubber Injection Molding Machine For Rubber Damper
Product Details:
Place of Origin: | Guangdong China |
Brand Name: | JUCHUAN |
Certification: | SGS CE ISO9001:2015 |
Model Number: | JC-VI-AO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 21800-40000one set |
Packaging Details: | Fixed with hard straps |
Delivery Time: | 45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 Set/Sets per Month |
Detail Information |
|||
High Light: | Rubber Damper Injection Molding Machine,Motorcycles Parts Making Injection Molding Machine,OEM Vertical Rubber Injection Molding Machine |
---|
Product Description
Motorcycles Parts Making Machine Vertical Rubber Injection Molding Machine For Rubber Damper
Detailed Product Description
Product Name: | JC-600VI-AO | Injection Theory: | Hydraulic Press |
---|---|---|---|
Clamp Force: | 600Ton | Injection Volume: | 6000cc |
Input Structure: | Sprueless Injection | Patent: | Anti-collision Molding System |
High Light: |
hydraulic oil press machine,silicone bracelet maker machine |
Machine Technique Charateristics:
-
Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.
-
All-in-out structure, sprueless injection without material loss controlable injecting material temperature.
-
Excellent for high precision molding part
-
5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g
-
Anti-collision molding system prevent mold damage occurring from misalignment(patented)
-
Servo-controlled system up to 40% energy saving
-
Proportional backpressure controlling characteristic
Advanced "all-in-all-out" Injection Molding Technology:
- Visible Feeding System:
- Avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing,
- Efficiently get control of the raw material Plasticizing status, can make adjustment in time.
- Excellent Plasticizing Effects:
- Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, save much more raw material when plasticizing.
- Easy to switch the different colors of raw material,easy for cleaning.
- High Temperature Ranges:
- Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
- Good Plasticizing effects can ensure a good injection products.
- Save Raw Rubber Material:
- Can handle with the raw rubber material as hardness as 85°.
- Improve coefficient of utilization of raw material.
- Avoid blocking the sylinder, easy for cleaning the machine.
Mahcine Applications :
-
"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
- All in all out series rubber injection machine is used to produce auto spare parts,industral spare parts,electric appliances insulated spare parts,sealing washer,antivibration pad,toy and bodybuilding rubber parts,etc.It has short production time,good quality,stable physicomechanical character and precister and precise dimension.
- Especially good for producing rubber products of complicated shape,thick wall or with embedded parts. NBR products.
Our Services Conception:
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free.
-
Technology training : Our company will offer technology training for your operation.
-
After-sales service: We will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. ( the service is only for natural damage)
Main Technical Parameters:
Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
Electric Heating Power | Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
Dimension (L*W*H) |
mm |
2000*1500 *H2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
