Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/ Silicone Baby Product Making Machine
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 50-400 | Injection Volume(cc): | 500-4000 |
|---|---|---|---|
| Injection Pressure(kgf/cm2): | 1800 | Platen Size(mm): | 300* |
| Plunger Diameter(mm): | 250-500 Or Customized | Min. Mold Thickness(mm): | 50-100 |
| Plunger Stoke(mm): | 300-500 | Heating Plates Distance(mm): | 350-600 |
| Tie Bar Distance(mm): | 400*140-820*395 | Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure(MPa): | 20 | Motor Power(KW): | 5.5-11 |
| Heating Poweer(KW): | 8.4-24 | Total Power(KW): | 13.9-35 |
| Gross Weight(Ton): | 5.5-10 | Machine Size L*W*H(mm): | 2000*1500*2800 - 2750*2265*4200 |
| High Light: | 350mm Silicone Press Machine,Silicone Press Injection Molding Machine,350mm Silicone Injection Molding Machine |
||
Product Description
Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/
Silicone Baby Product Making Machine
Detailed Product Description
| Structure Mode: | Vertical | Model Number: | JC-100VI-AO |
|---|---|---|---|
| Main Technology: | Complete Intellectual Property Rights | Platen Size: | 400x400mm |
| Injection Volume: | 500cc | Clamp Force: | 1000 Ton |
| Injection Pressure: | 1800kgf/cm² | Plunger Stroke: | 350mm |
| High Light: |
hydraulic power press machine,hydraulic oil press machine |
||
Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/Silicone Baby Product Making Machine
Application:
- Suitable for multilateral, polygonal and other complicated shape products；
- Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications.
- Suit for antomotive and electronic rubber parts, high / cold temperature precision rubber parts, specially for NBR products
Application:
- It has various molding method (2RT, 3RT, 4RT, 5RT).
- Accurate mold position to ensure safety and mold won’t collide.
- Dual motors design to ensure the couple stations could work independently & safely.

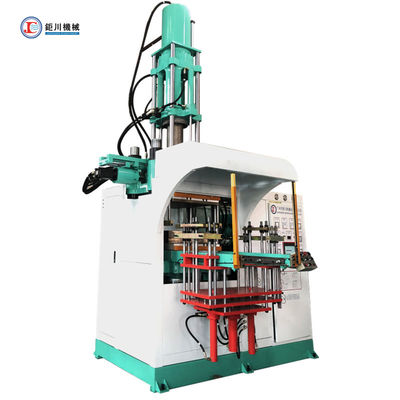

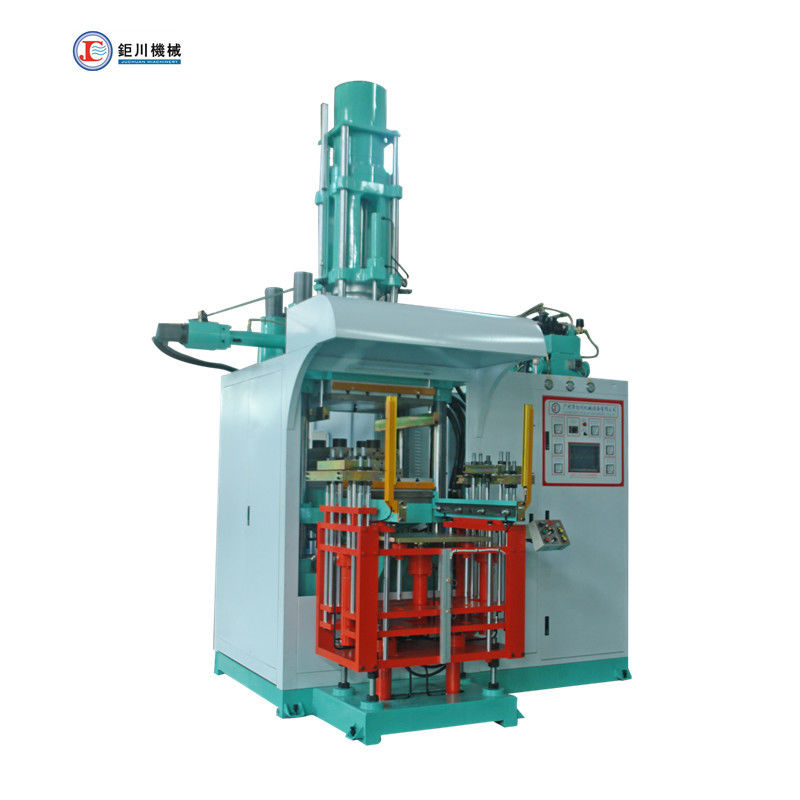

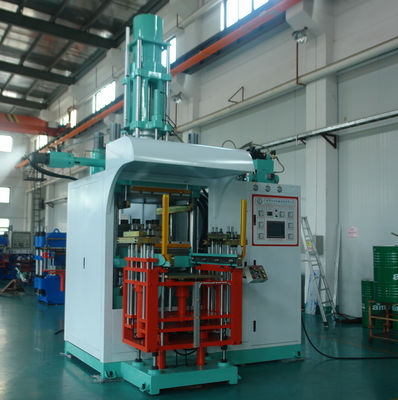

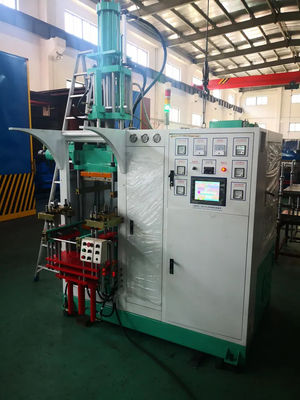

Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine
- Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products
- All-in-out structure, sprueless injection without material loss controllable injecting material temperature
- Excellent for high precision molding part
- 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g
- Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
- Servo-Controlled system -Up to 40% energy saving
- Proportional backpressure controlling characteristic
Main Technical Parameters:
| Model | Unit | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | |||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
| Electric Heating Power | Kw | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
