200 Ton Vacuum Compression Molding Machine For Silicone Pet Bowl
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | SGS CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Delivery Time: | 50days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 50-1000 | Plunger Stroke: | 200-350 |
|---|---|---|---|
| Heating Plate Distance: | 200-350 | Opening Mold Type: | 2RT3RT4RT |
| Total Power: | 28.4-104 | Gross Weight: | 5-20 |
| High Light: | 200 Ton Vacuum Compression Molding Machine,Vacuum Compression Silicone Pet Bowl Molding Machine,Silicone Pet Bowl Molding Machine |
||
Product Description
Detailed Product Description
| Clamp Force: | 200 Ton | Upper Plate Size: | 510x510mm |
|---|---|---|---|
| Lower Plate Size: | 550x560mm | Air Exhausting: | Vacuum Compression |
| Gross Weight: | 7.8 Ton | Machine Dimensions: | 2930x2500x2350mm |
| High Light: |
rubber compression machine,rubber compression molding machine |
||
200 Ton Silicone Pet Bowl Vacuum Compression Molding Machine Silicone Rubber Apply
Machine Specific Characteristic:
- Vacuum Capability: It is capable of being high degree of vacuum. A standard vacuum method is used to make consistent high quality products.
- Mold Opening Design: A patent is granted for a new type rail mold opening. The opening angle is up to 90 degrees. It is very convenient for operation.
- Another feature of the new rail mold opening is that there is no need to remove the base of the rail mold opening while replacing molds. It promotes the work efficiency and safety.
- Mold Loading / Unloading Design: Incorporate a special design into the mechanism of mold loading / unloading. It is durable, quiet. speedy and stale.
- Hydraulic System Design: The system employs both high and low pressure pumps and is able to close both presses simultaneously. The system is quiet, reliable with minimum maintenance required.
- Alignment: Two speeds of mold calibration are provided for users to choose form, fast and slow. It makes the calibration more safe and more accurate.
Machine Operation Proccedure:
- Close the mold and load the mold
- After loading the mold, the main cylinder goes up to the predetermined position. Lower the vacuum hood. Suck out the air unit a state of vacuum is reached. The main cylinder goes up. Increase the pressure to expel bubbles out.
- After bubbles are expelled completely, the state of vacuum exists no more. Lift the vacuum mask and curing.
- Lower the main cylinder and unload the mold. Open the mold.
- Take out the final product and put new material in.
Machine Main Feature:
1. Every work station can be used independently with respectively hydraulic and power motor.
2. Special design movement platen with consistent 3. clamping force for better molded part quality.
3. High vacuuming/degassing speed.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
5. Adaptable with different mold model.
6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.
Machine Main Technical Parameters:
| Clamping Force | Ton | 100 | 200 | 250 | 300 | 400 |
| Upper Platen Size | mm | 380*400 | 510*510 | 600*600 | 680*680 | 800*800 |
| Lower Platen Size | mm | 400*460 | 550*560 | 650*600 | 700*800 | 850*850 |
| Plunger stroke | mm | 200 | 250 | 250 | 300 | 350 |
| Distance of Thermo - plate |
mm | 200 | 250 | 250 | 300 | 350 |
| Distance of Tie bar | mm | 490*230 | 640*310 | 745*310 | 785*380 | 940*450 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | 10*2 | 15*2 |
| Electric Heating Power |
Kw | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 |
| Vacuum Pump Power |
Kw | 3 | 3 | 3*2 | 3*2 | 3*2 |
| Total Power | Kw | 28.4 | 45 | 51.6 | 69 | 84.8 |
| Gross weight | Ton | 5 | 7.8 | 11 | 15.45 | 18 |
| Dimension | mm | 2500*2150*2080 | 2930*2500*2350 | 3190*2930*2495 | 3360*2970*2850 | 3650*3050*2900 |

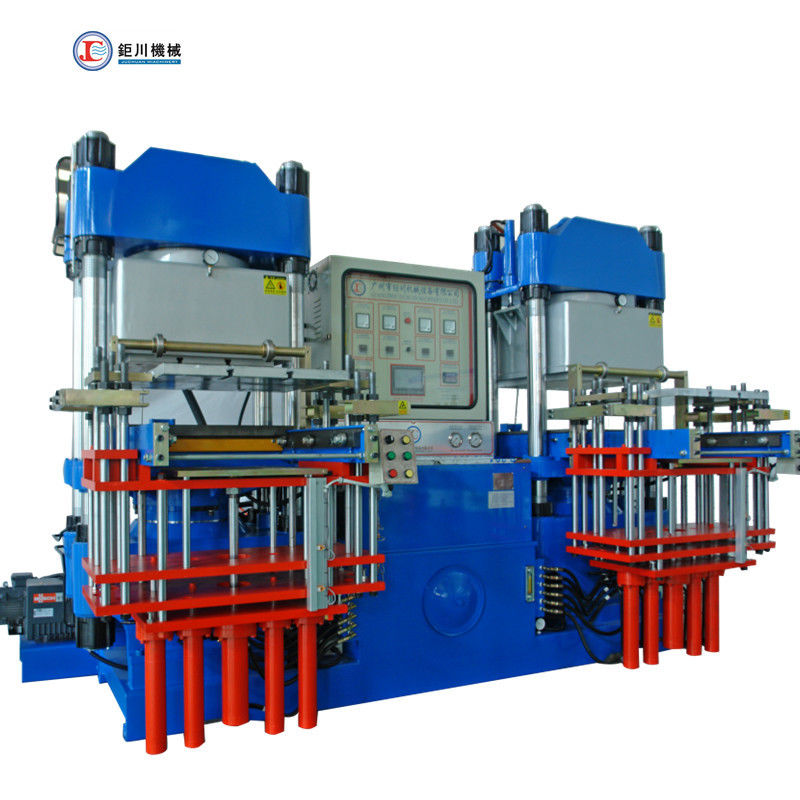

Product Showcase:

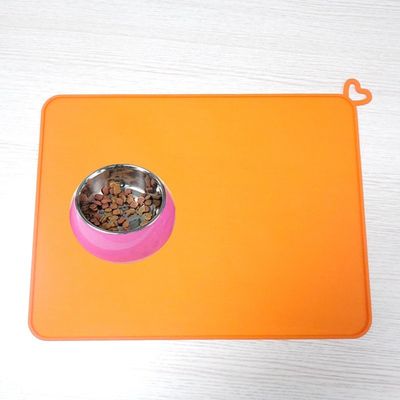

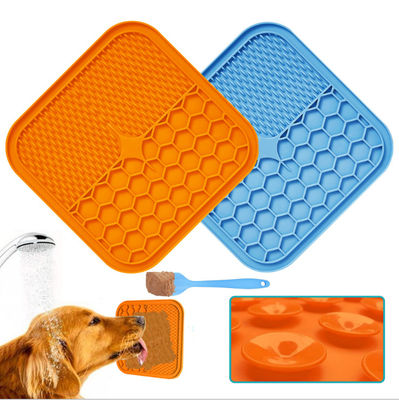

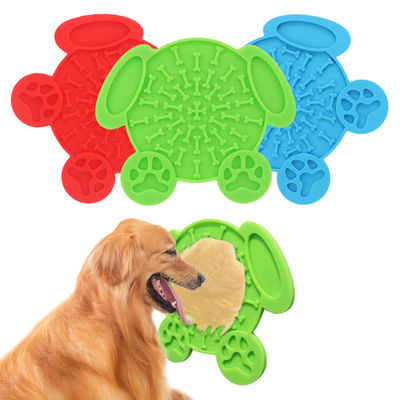

Finished Product:
