200 Ton Calmp Force Rubber Gasket Vacuum Compression Molding Machine 11KW

200 Ton Calmp Force Rubber Gasket Product Mould 24 Hours Working Vacuum Compression Molding Machine For Parts In India

2RT Machine motion flow:

1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.

3RT Features:

1. The 3RT surpasses the traditional top opening mold that can be used for the triple or four mold plates with the design of opening mold and pushing out the mold in the between.
2. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.

3RT Machine motions flow

1. Unload the mold
2. M1 goes up to open the mold
3. M2 goes up and separates from the mold
4. M2 goes down and close the mold
5. M1 goes down and close the mold
6. Load the mold

4RT Features:

The 4RT surpasses traditional top opening mold that can be used for taking out the final product when there are triple or four mold plates with the design of opening mold, pushing out the mold in between, and rising thimble to eject the final production.

4RT Machine motions flow:

1. Unload the mold
2. M1 goes up to open the mold
3. M2 goes up and separates from the mold
4. M3 follow the K goes backward
5. M2 goes down
6. L goes up take out the finished product, clean and place new material for re-start.
7. L goes down; M2 goes up, M3 follow the bottom plate goes forward.
8. M2&M1 go down.
9. Mold in, main ram goes up and molding than main ram goes down and mold-out when completed the process.

Product Show:

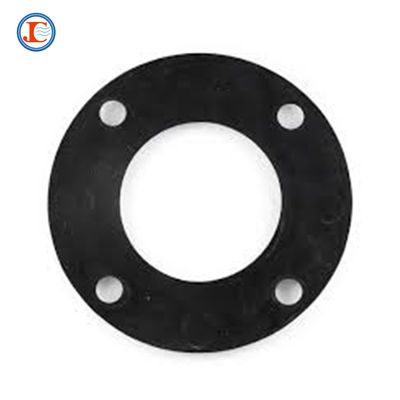

final product
