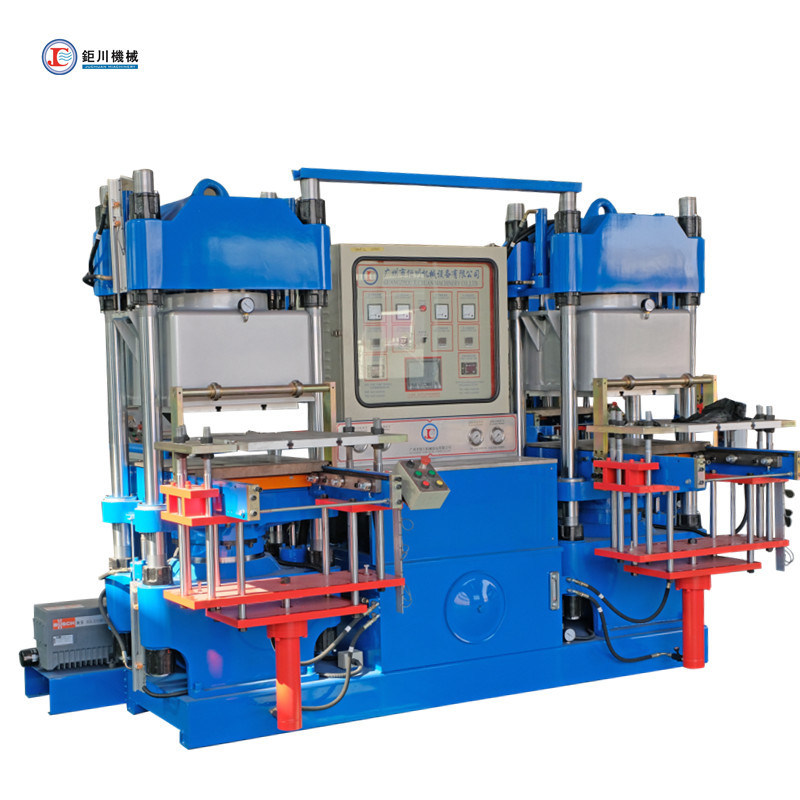

350mm Vacuum Compression Molding Machine Silicone Menstrual Cup Making Machine
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | ISO9001; SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Delivery Time: | 50days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 50-1000 | Plunger Stroke: | 200-350 |
|---|---|---|---|
| Heating Plate Distance: | 200-350 | Opening Mold Type: | 2RT3RT4RT |
| Total Power: | 28.4-104 | Gross Weight: | 5-20 |
| High Light: | 350mm Vacuum Compression Molding Machine,Silicone Menstrual Cup Making Machine,350mm Silicone Menstrual Cup Making Machine |
||
Product Description
| Clamp Force: | 400 Ton | Upper Platen Size: | 800*800mm |
|---|---|---|---|
| Lower Platen Size: | 850*850mm | Plunger Stroke: | 350mm |
| Total Power: | 84.8KW | Dimension: | L3650*W3050*H2900 Mm |
| High Light: |
rubber compression machine,rubber compression moulding machine |
||
Vacuum Compression Molding Machine For Silicone Menstrual Cup Making Machine Factory
3 RT Features:
-
The 3RT surpasses the traditional top opening mold that can be used for the triple or four mold plates with the design of opening mold and pushing out the mold in the between.
-
The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.
3RT Machine motions flow
- Unload the mold
- M1 goes up to open the mold
- M2 goes up and separates from the mold
- M2 goes down and close the mold
- M1 goes down and close the mold
- Load the mold
Main Feature:
1. Every work station can be used independently with respectively hydraulic and power motor.
2. Special design movement platen with consistent 3. clamping force for better molded part quality.
3. High vacuuming/degassing speed.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
5. Adaptable with different mold model.
6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.
Our Services:
- Free technology training: you can come for inspection and training for free.
- Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
- After-sales service:We will supply the free repairment on thilfs machine for one year,but will suppli the maintenance lifetime.(the service is only for natural damage)
- Online remote control for software problems, whatspp or wechat for video checking.
Machine parameters:
| Model | Unit | 200VF | 250VF | 300VF | 400VF | 500VF |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 500 |
| Upper Platen Size | mm | 510*510 | 600*600 | 680*680 | 800*800 | 950*950 |
| Lower Platen Size | mm | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 250 | 250 | 300 | 350 | 350 |
| Distance of Thermo - plate |
mm | 250 | 250 | 300 | 350 | 350 |
| Distance of Tie bar | mm | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10*2 | 10*2 | 10*2 | 15*2 | 15 |
| Electric Heating Power |
Kw | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 |
| Vacuum Pump Power |
Kw | 3 | 3*2 | 3*2 | 3*2 | 4 |
| Total Power | Kw | 45 | 51.6 | 69 | 84.8 | 49 |
| Gross weight | Ton | 7.8 | 11 | 15.45 | 18 | 14.5 |
| Dimension | mm | 2930*2500*2350 | 3190*2930*2495 | 3360*2970*2850 | 3650*3050*2900 | 1460*3600*3150 |
Product Show:
Finished Product:
