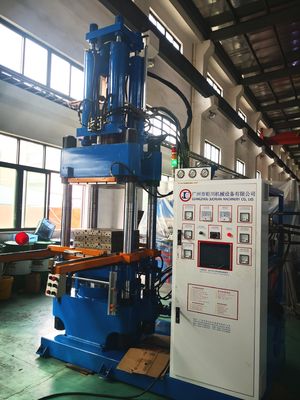

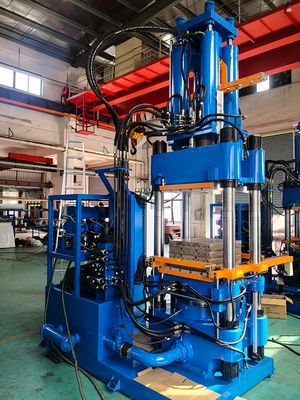

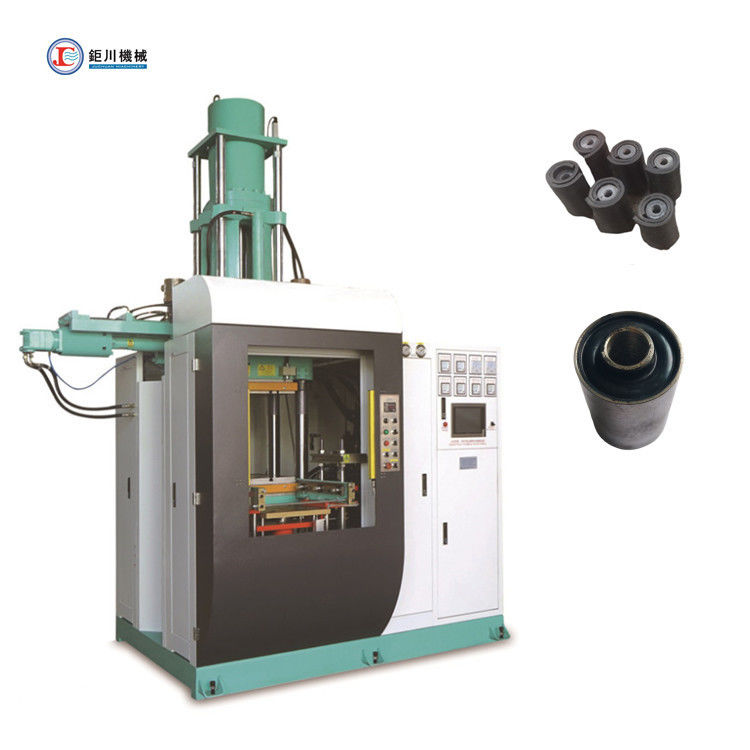

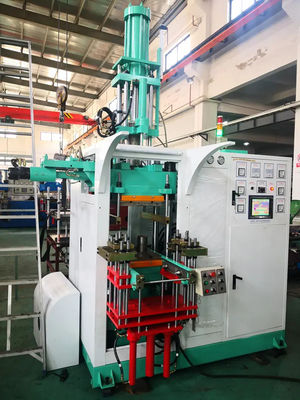

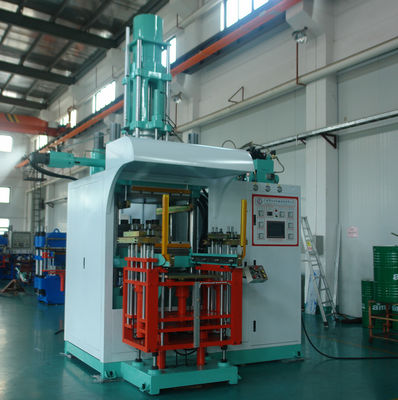

OEM ODM 400 Ton Silicone Rubber Injection Molding Machine Large Dust Cover Oil Resistant
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $21800-$40000one set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 50-400 | Injection Volume(cc): | 500-4000 |
|---|---|---|---|
| Injection Pressure(kgf/cm2): | 1800 | Platen Size(mm): | 300*300-700*700 |
| Plunger Diameter: | 250-500 Or Customized | Min. Mold Thickness(mm): | 50-100 |
| Plunger Stroke(mm): | 300-500 | Heating Plates Distance(mm): | 350-600 |
| Tie Bar Distance(mm): | 400*140-820*395 | Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure(MPa): | 20 | Motor Power(KW): | 5.5-11 |
| Heating Power(KW): | 8.4-24 | Total Power(KW): | 13.9-35 |
| Gross Weight(Ton): | 5.5 - 10 | Machine Size L*W*H(mm): | 2000*1500*2800 - 2750*2265*4200 |
| High Light: | OEM ODM Silicone Rubber Injection Molding Machine,400 Ton Rubber Moulding Machine,Silicone Rubber Injection Molding Machine Oil Resistant |
||
Product Description
ODM 400 Ton Silicone Rubber Injection Molding Machine Large Dust Cover Oil Resistant
Detailed Product Description
| Main Apply Products: | Rubber Dust Cover | Hydraulic Cylinder: | 1 Mian Cylinder |
|---|---|---|---|
| Mold Openning Stroke: | 2RT/3RT/4RT For Optional | Clamp Force: | 400Ton |
| Pressing System: | Proportional Backpressure Control | Plate Size: | 700x700mm |
| High Light: |
hydraulic oil press machine,silicone bracelet maker machine |
||
Machine Features:
- Visible Feeding System:
- Avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing,
- Efficiently get control of the raw material Plasticizing status, can make adjustment in time.
- Excellent Plasticizing Effects:
- Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, save much more raw material when plasticizing.
- Easy to switch the different colors of raw material,easy for cleaning.
- High Temperature Ranges:
- Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
- Good Plasticizing effects can ensure a good injection products.
- Save Raw Rubber Material:
- Can handle with the raw rubber material as hardness as 85°.
- Improve coefficient of utilization of raw material.
- all material in, and all out:
- All-in-out structure, sprueless injection without material loss controlable injecting material temperature
- Excellent for high precision molding parts.
Main Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||
| Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 | 20 | 25 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
| Dimension (L*W*H) |
mm | 2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
