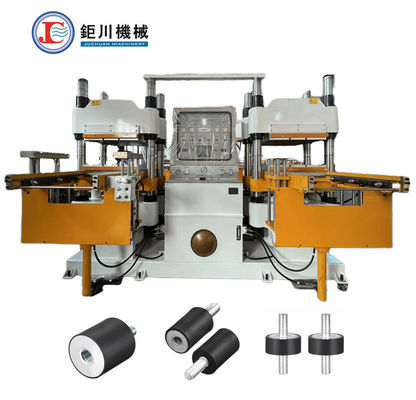

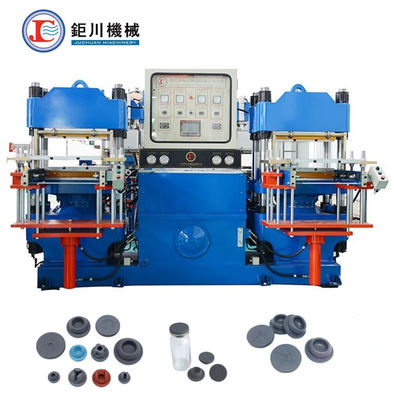

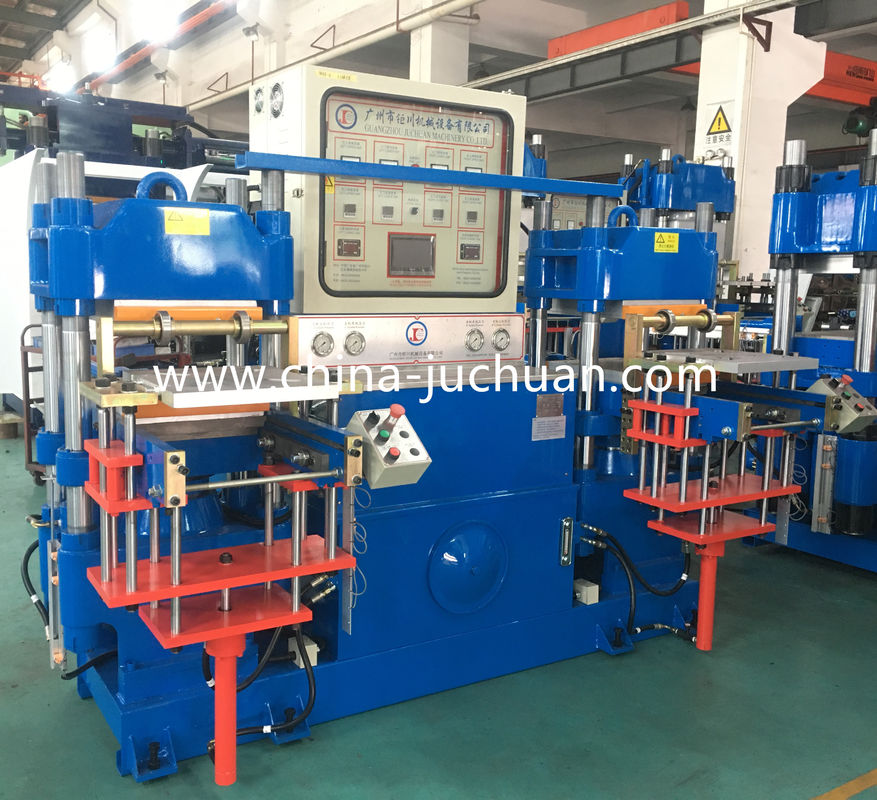

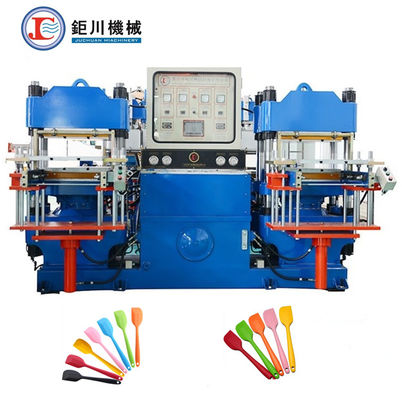

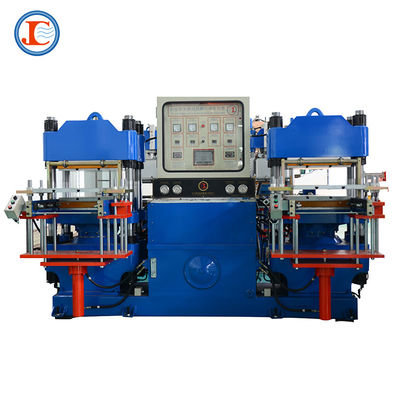

2RT Rubber Silicone Hydraulic Hot Vulcanizing Press Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $25,000.00 - $26,800.00/sets |
| Packaging Details: | shrink film paking |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month vacuum press machine |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Machine Type: | Vacuum Vulcanizing Press |
| Voltage: | 380v | Dimension(L*W*H): | 3190*2930*2495mm |
| Weight: | 11000 | Warranty: | 1 Year |
| Power (kW): | 51.6kw | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Distance Of Tie Bar(mm): | 745*310 | Plunger Stroke(mm): | 250 |
| Upper Platen Size (mm): | 600*600 | Lower Platen Size(mm): | 650*600 |
| Heating Power: | 153.kw *2 | Total Power(W): | 51.6KW |
| Power: | 46kw | After-sales Service Provided: | Video Technical Support |
| Port: | Guangzhou | ||
| High Light: | Hydraulic Hot Vulcanizing Press Machine,2RT Rubber Silicone Vulcanizing Machine,Rubber Silicone Vulcanizing Press Machine |
||
Product Description
2RT Rubber Silicone Hydraulic Hot Vulcanizing Press Machine
Machine Characteristic:
1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries
3.Multi-pillar plate vulcanizing machine.
4.Anti-collision Molding System prevents mold damage occurring from misalignment (Patented).
5.It has various demolding method: 2RT, 3RT, 4RT.
6.Accure mold positioning to ensure safety to that mold does not collide.
7.Dual power bank design to ensure the twin stations could work independently and safely.
Technical parameter:
| Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
| Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
| Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
| Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
| Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
| Machine Size L*W*H (mm) | 2500*2080*1950 | 2930*2350*2050 | 3190*2780*2230 | 3360*2970*2250 | Customized | 3660*3050*2350 | 1460*3600*2380 | 2350*5400*2950 |
Shipping and packing
Company information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our Main Products
Vertical Solid Silicone Injection Molding machine
Vertical Rubber Injection Molding machine
Horizontal Silicone Injection Molding machine
Horizontal Rubber Injection Molding machine
Liquid Silicone Injection Molding machine
Vacuum compression Molding machine
Hydraulic Vulcanizing Hot Press machine
Brake Pads Brake Lining Hot Press Machine
Trade Show
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
