Silicone Baby Bottle Nipples Making Vacuum Compression Hydraulic Rubber Moulding Machine
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | Juchuan |
Certification: | ISO |
Model Number: | JC-VF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | $48,000.00/sets >=1 sets |
Packaging Details: | container |
Delivery Time: | 15 - 20 working days |
Payment Terms: | L/C, Western Union, T/T |
Supply Ability: | 100 Set/Sets per Month vulcanizing machine |
Detail Information |
|||
Condition: | New | Video Outgoing-inspection: | Provided |
---|---|---|---|
Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | PLC, Engine, Bearing, Motor, Pressure Vessel, Pump | Machine Type: | Vacuum Vulcanizing Press |
Voltage: | 380v | Dimension(L*W*H): | 2930*2500*2350mm |
Weight: | 7.8ton | Warranty: | 1 Year |
Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support | Clamp Force(Ton): | 100~1200 |
Plunger Stroke(mm): | 200~350 | Gross Weight(Ton): | 5~28.5 |
Power(W): | 45kw | After Warranty Service: | Video Technical Support, Online Support |
Port: | Guangzhou | Clamp Force: | 50-1000 |
Plunger Stroke: | 200-350 | Heating Plate Distance: | 200-350 |
Opening Mold Type: | 2RT3RT4RT | Total Power: | 28.4-104 |
Gross Weight: | 5-20 | ||
High Light: | Silicone Nipples hydraulic rubber moulding machine,Silicone hydraulic rubber moulding machine,Bottle Nipples Making Vacuum Compression Machine |
Product Description
Silicone Baby Bottle Nipples Making Vacuum Compression Machine/Rubber Mold Press
The Vacuum Compression Molding Machine is designed for rubber and plastic product manufacturing, utilizing a molded vacuum vulcanization process. It is particularly well-suited for producing various forms of seals. The molding and vulcanization take place in a vacuum negative pressure environment, allowing for efficient exhaust and minimizing the formation of bubbles.
This versatile machine comes in single-base and double-base configurations, offering options for safety enclosure and a clamping die mechanism, which can be chosen based on specific process requirements.

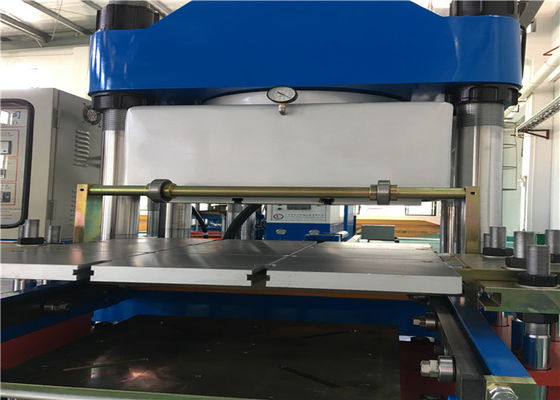

The main body of the vacuum vulcanizing press features a side plate structure, comprising upper beams, side plates, front and rear doors, door frames, hydraulic cylinders, plungers, and hot plates. This robust construction ensures precise operation and reliable performance during the vulcanization process. The Vacuum Compression Molding Machine is a valuable tool for achieving high-quality rubber and plastic products, especially seals.
The Vacuum Molding Machine operates using a fast air extraction method during the vulcanization process. Here's how it works:
1. Initial Air Extraction: During the idle time of the vacuum pump, the machine starts extracting the air from the vacuum box. This process creates a low-pressure environment inside the box.
2. Connecting the Vacuum Hood: When the air in the vacuum hood needs to be evacuated, the machine connects the gas in the vacuum hood with the low-pressure environment inside the vacuum box.
3. Balancing Gas Pressure: By connecting the gas in the vacuum hood with the low-pressure environment inside the vacuum box, the gas pressure in both areas is balanced. This balance allows for rapid air evacuation from the vacuum hood.
4. Achieving Rapid Pumping: As a result of the balanced gas pressure, the vacuum pump can quickly and efficiently remove air from the vacuum hood, facilitating the vacuum molding process.
This method of fast air extraction and gas pressure balancing in the vacuum hood and vacuum box enables the Vacuum Molding Machine to achieve rapid and effective pumping, creating a vacuum negative pressure environment essential for efficient exhaust and bubble-free molding of rubber and plastic products, especially seals.
The production process
Technical data:
What products our machine can make?
Guangzhou Juchuan Machinery Co., Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products: silicone rubber injection molding machine, vacuum compression molding machine, hot press machine, injection moulds and the auxiliary equipment like robot arms.
Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have built up the complete quality management system and the after-sale service system, based on the standard of GB/T19001-2016/ISO9001-2015. With the idea of “Quality is the basic to create value”, we commit to provide the best technical support and sales services for all our clients.
So far, our products have been sold to Germany, Russia, Turkey, Thailand, Vietnam, Malaysia, Cambodia, India, Saudi Arabia, Sudan, Pakistan, Tunisia, Israel and Afghanistan.
Our service:
1. Free technology training or machine inspection at our factory.
2. Free Installation and debugging: our engineers will teach you installation and debugging for free.
3. After-sales service: we will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage.)
4. Online remote control for software problems, Whatspp or Wechat for video checking.
