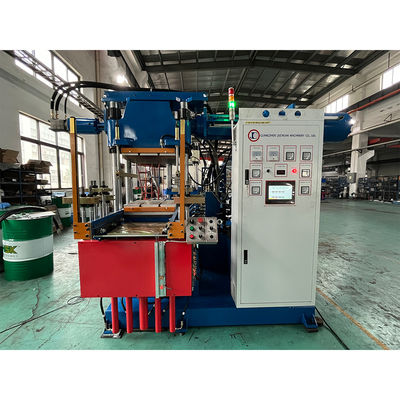

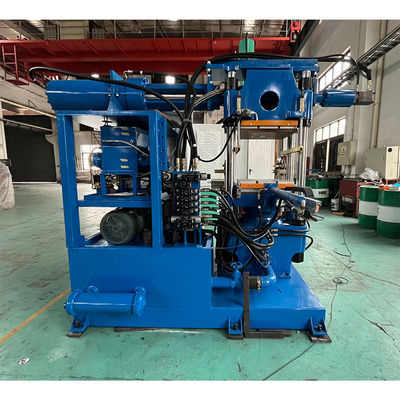

300 Ton Horizontal Automotive Parts Injection Machine 3RT Openning Stroke
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | CE ISO9001:2015 |
| Model Number: | HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $32000-$40,000.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Plasticizing Capacity(g/s): | 100 | Mold Height(mm): | 100 - 250 Mm |
| Ejector Number: | 3 | Ejector Stroke(mm): | 100 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 100 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Speed (rpm): | 100 - 250 |
| Screw Diameter (mm): | 30 Mm | Screw L/D Ratio: | 20 |
| Distance Between Tie Bars: | 400 | Weight (KG): | 8000 |
| Type: | Injection Molding Machine | Open Stroke(mm): | 200 Mm |
| Power (kW): | 40 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Automatic: | Yes |
| Injection Weight: | 4000cc | Opening Stroke: | 400mm |
| Clamp Force(Ton): | 300 | Injection Volume(cc): | 3000 |
| Injection Pressure(kgf/xm2): | 2000 | Platen Size(mm): | 700x700 |
| Min Mold Thickness(mm): | 200 | Plunger Stroke(mm): | 400 |
| Machiner Dimensions(mm): | 3500x2600x2700 | Power(W): | 39KW |
| After-sales Service Provided: | Video Technical Support, Online Support | Clamping Force (kN): | 3000 KN |
| Port: | Guangzhou | ||
Product Description
300 Ton Horizontal Automotive Parts Injection Machine 3RT Openning Stroke
How to Improve the Vulcanizing Working Efficiency:
-
Without changing the overall structure of the flat vulcanizing machine, we can only start from other aspects, that is, to change some local structures or change some parts to improve the vulcanization efficiency of the flat vulcanizing machine.
-
In order to improve work efficiency, it is necessary to reduce the power consumption during the vulcanization process of the flat vulcanizing machine. We can use the electromagnetic clutch passive anti-drive reel form to reduce the friction between the wire rope spindle and the reel, reduce the power required for pre-tensioning, and accurately provide The pre-tension of the single steel rope reduces the number of reducer-motor unit groups. This can reduce the energy consumption and maintenance difficulty, reduce the overall space size of the wire rope pre-tensioning station, and improve the convenience of replacing the wire rope spindle. In terms of reducing the size of the space, the individual hydraulic cylinders are distributed and the force is already occupied by the space, and the wire ropes with different wire diameters are used.
The Advantages of 5 Hydraulic Components:
- A complete hydraulic system consists of five components, namely auxiliary components, actuators, control components, power components and hydraulic fluid. The following is an introduction to the five components. In order to let everyone better understand these parts, Jiangyi Hydraulic Machinery will introduce us.
- The auxiliary components include oil filter, seal ring, high pressure ball valve, fuel tank, pressure gauge, oil level oil temperature gauge and so on. The role of this actuator is to transform the pressure of the liquid, convert his pressure energy into mechanical energy, and then rotate or reciprocate the driving load, such as hydraulic motors and hydraulic cylinders. The control element is controlled and regulated to regulate the flow and direction of the pressure.
- The role of the power component is to convert the mechanical energy of the prime mover into the pressure energy of the liquid. He will provide the corresponding power to the hydraulic system of Jiangyi Hydraulic Machinery. The structure and form of the hydraulic pump are vane pump, gear pump and plunger pump. Hydraulic oil is the medium of work, which plays a role in energy transfer. There are several types of it, such as emulsion, mineral oil and so on.
Applications:
-
Rubber injection molding machine is advanced rubber molding technology, it's structure is compact with wide applicability, high efficiency and high quanlity.
-

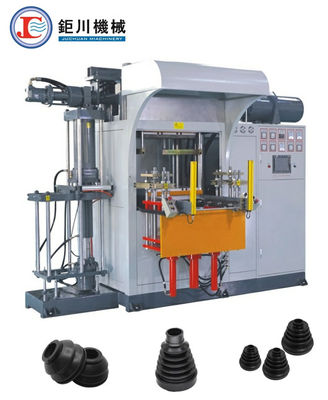

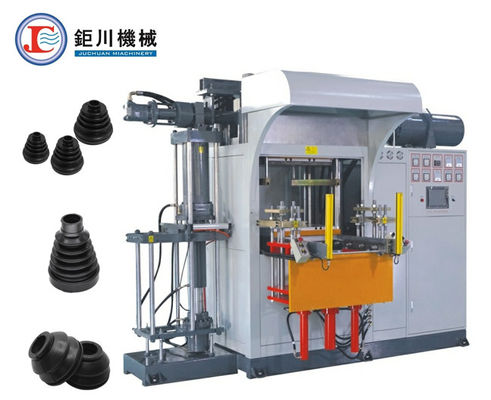

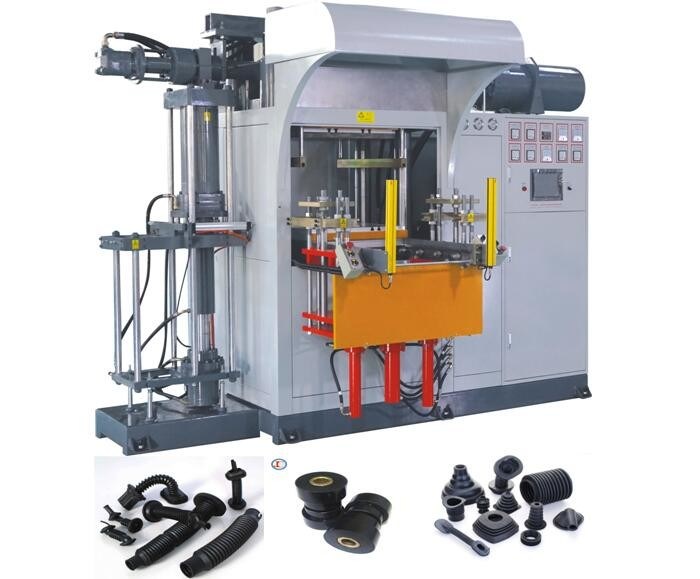

Especially it is suitable for shock absorber boots,grommet isolator, shock absorbing bushing,
-
The rubber products of complex shapes, exhausting difficultly, difficult to molding, and need high precision injection.
Reference Images:
Why choose first in first out rubber injection molding machine
1. Adopting a first-in, first-out device to prevent dead material from remaining, and the rubber material can be easily replaced without waste.
2. The temperature of the injection pipe oil is controlled by a constant temperature system to prevent vulcanization of dead glue.
3. The use of low-speed high-torque hydraulic motors can ensure high hardness of the rubber material quickly.
4. Adopt linear vertical injection system to ensure the injection pressure and the hardness of injected rubber can reach 90 degrees.
5. The device is equipped with a fully enclosed safety baffle and grating, alarm prompts and a high-precision measuring scale device, to clearly and safely grasp the status of the machine.
6. Proportional oil circuit system, low noise and automatic pressure adjustment function, accurate and stable.
7 Short nozzle designs, no spillage, no plastic leakage, can shorten the plasticization time.
8. Special cold runner device can be customized to save rubber material.
| Model | Unit | 200HI-FL | 250HI-FL | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 550 | 600 |
| Injection Capacity | cc | 2000 | 2500 | 3000 | 4000 | 10000(12000) | 6000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 550*550 | 600*700 | 700*700 | 700*700 | 700*1500 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 200 | 200 | 510 | 200 |
| Plunger stroke | mm | 500 | 500 | 400 | 400 | 700 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 600 | 600 | 960 | 700 |
| Distance of Tie bar | mm | 640*310 | 705*400 | 820*395 | 820*395 | 820*640 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 15(11kw) | 15(11kw) |
30/7.5 (22kw/5.5kw) |
20(15kw) |
| Heater Power | Kw | 15.3 | 18 | 24 | 24 | 45 | 29.75 |
| Total Power | Kw | 30.3 | 33 | 39 | 39 | 80 | 48.75 |
| Gross weight | Ton | 7.3 | 8 | 9.5 | 10.5 | 25 | 14.5 |
| Dimension(L*W*H) | mm |
3400*2400 *2600 |
3400*2500 *2650 |
3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
Applications:
Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.
Company Information:
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
