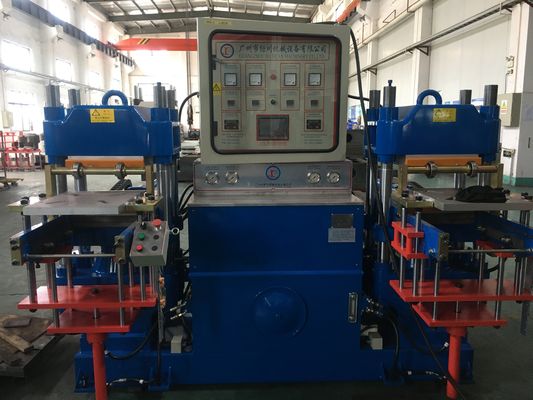

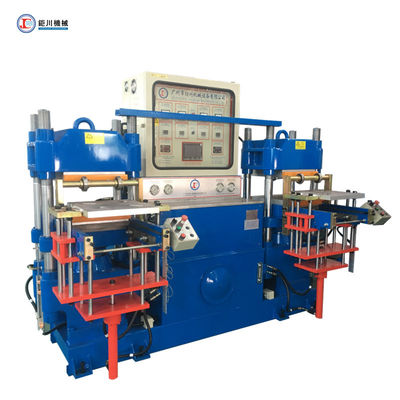

Top Service Pop It Fidget Bubble Silicone Toys Making Plate Vulcanizing Press Machine from China Factory
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $18000-$26800.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps . |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Plastic Processed: | Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 400 Mm |
| Ejector Force(kN): | 2000 KN | Theoretical Shot Volume(cm³): | 2000 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 2000 G | Screw Diameter (mm): | 35 Mm |
| Weight (KG): | 8000 | Type: | Plate Vulcanizing Machine |
| Open Stroke(mm): | 400 Mm | Power (kW): | 40 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Pressure Vessel, Screw |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Rate: | Adjustable | Plunger Stroke(mm): | 200~350 |
| Plastic Type: | Other | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Russia, South Africa | Marketing Type: | Hot Product 2021 |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Plunger Stroke: | 200-350 | Mold Opening Type: | 2RT3RT4RT |
| Gross Weight: | 5-28.5 | ||
Product Description
Specific Characteristic
- Twin work position design, are required with independent oil circuit, dual oil pump, double motor.
- Vacuum pumping device draws out air in die cavity to avoid trapped gas, short injection, shorten forming period and improve product quality.
- Suitable for rubber parts with complicated structure and difficult exhaust.
- Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
- Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
- Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
- Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.
Technical parameter
| Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
| Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
| Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
| Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
| Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
| Machine Size L*W*H (mm) | 2500*2080*1950 | 2930*2350*2050 | 3190*2780*2230 | 3360*2970*2250 | Customized | 3660*3050*2350 | 1460*3600*2380 | 2350*5400*2950 |

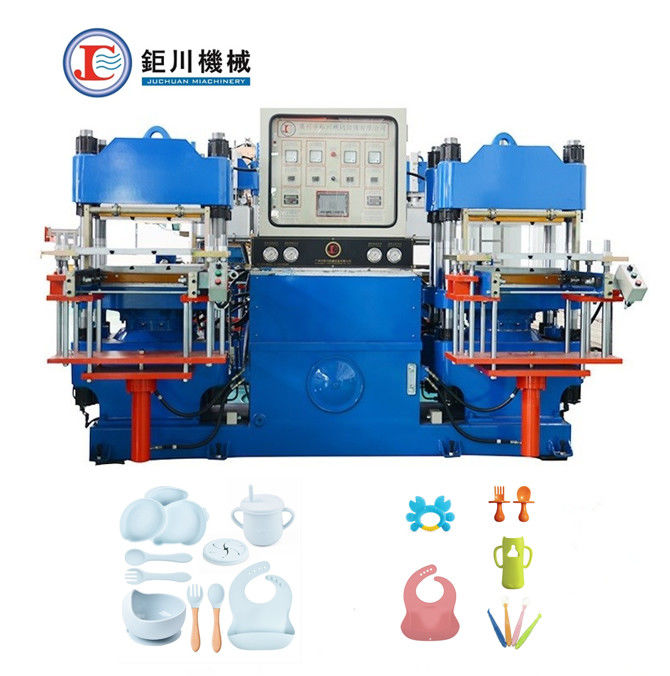

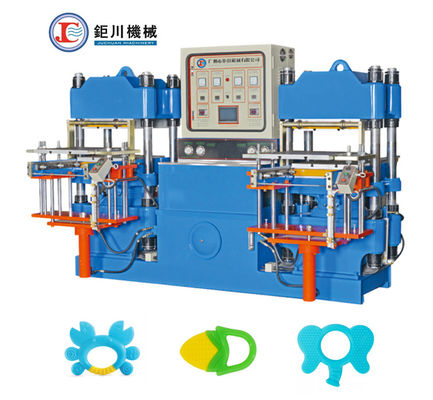

Application Products
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Exhibition show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
