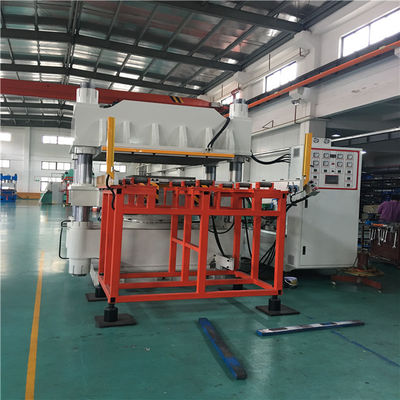

1000 Ton Inverted Hydraulic Hot Press Machine Plate Vulcanizing Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-1000HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $40,000.00-$45000/sets >=1 sets |
| Packaging Details: | Fixedwith hard straps. |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month silicon insulator making machine |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Plate Vulcanizing Press |
|---|---|---|---|
| Voltage: | AC 380V | Dimension(L*W*H): | 2050*4600*2650mm |
| Weight: | 13.5ton | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Russia, South Africa |
| Clampt Force: | 1000ton | Plate Size: | 1200x2000mm |
| Max Operating Pressure: | 20MPa | Motor Capacity(kw): | 20HP(15KW) |
| Machine Dimensions: | 2050x4600x2650mm | Power(W): | 47KW |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Plunger Stroke: | 200-350 | Mold Opening Type: | 2RT3RT4RT |
| Gross Weight: | 5-28.5 | ||
Product Description
1000 Ton Inverted Hydraulic Hot Press Machine Plate Vulcanizing Machine
Vulcanizer Installation & Testing:
- Installation of vulcanizer: The main machine is installed by secondary grouting method and fixed horizontally on the concrete foundation with anchor bolts. After the oil station is placed at the appropriate position on the right side of the main unit and connected to the main oil, fix it with expansion bolts. If the operating surface is high, the settlement pit type, or the construction work platform, or a combination of the two may be selected according to the respective conditions during installation.
- Due to the large size of the machine structure and heavy weight, it is transported after disassembly and disassembly before leaving the factory. The installation of the equipment has certain technical requirements, and generally should be attended by professionals.
- Empty load test of vulcanizing machine: The empty load test should be carried out after the installation and commissioning, and the concrete is finally set. Before the empty load test, the hot plates of each layer shall be mounted with aluminum module plates, or padded with equal-area pads of sufficient area, and the thickness of the blocks shall not be lower than the standard thickness of the template.
- After setting the working pressure of each oil pump, the relief valve is opened. Press the high pressure oil pump preload/start button, and rotate the corresponding relief valve handle clockwise to increase the pressure gradually. When the pressure rises to 18Mpa¬20Mpa¬, the high pressure oil pump is set to the pressure, and the handle is locked by the nut.
- The pressure of the high pressure oil pump can be adjusted to 15Mpa 20Mpa, the data is for reference only, the specific pressure is user-defined. The working pressure of each oil pump is set.
How to operate this machine?
Initial state →Put the material into the mould, repos it the ejector cylinder →Load the mould →Close the mould quickly→ Clamp the mould slowly, increase pressure →Exhaust→ Vulcanization start →Vulcanization finish→ Open mould quickly→ Pushing out the mould →Ejector cylinder works, and separate mould and product→ Take out the product
Technical parameter
| Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
| Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
| Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
| Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
| Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
| Machine Size L*W*H (mm) | 2500*2080*1950 | 2930*2350*2050 | 3190*2780*2230 | 3360*2970*2250 | Customized | 3660*3050*2350 | 1460*3600*2380 | 2350*5400*2950 |
