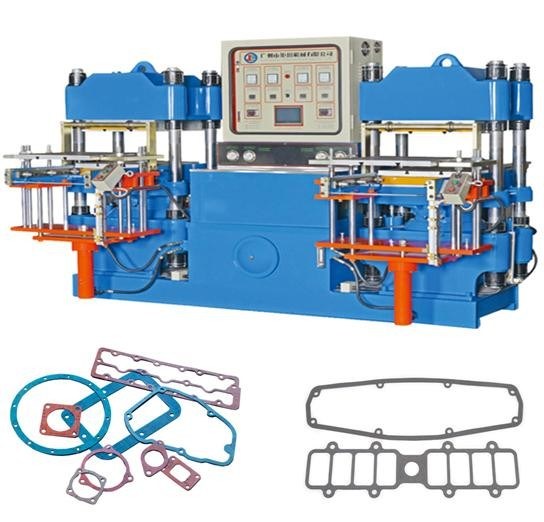

China Factory Sale non-standard oil seal Hydraulic Vulcanizing Hot press making machine/molding rubber injection machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $16,000.00 - $39,800.00/sets |
| Packaging Details: | thin film packing |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Month |
|
Detail Information |
|||
| Condition: | New | Voltage: | 380v |
|---|---|---|---|
| Dimension(L*W*H): | 2930*2350*2050mm | Weight: | 7.8ton |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas |
| Power: | 42kw | Distance Of Tie Bar: | 785*380mm |
| Plunger Stroke(mm): | 300 | Dimension(L*W*H)mm: | 3360*2970*2250 |
| Operation Table Size (mm): | 700*800 | Port: | Guangzhou |
Product Description
China Factory Sale non-standard oil seal Hydraulic Vulcanizing Hot press making machine/molding rubber injection machine
Machine Characteristic:
1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries
3.Multi-pillar plate vulcanizing machine.
4.Anti-collision Molding System prevents mold damage occurring from misalignment (Patented).
5.It has various demolding method: 2RT, 3RT, 4RT.
6.Accure mold positioning to ensure safety to that mold does not collide.
7.Dual power bank design to ensure the twin stations could work independently and safely.
Technical parameter:
|
Model |
Unit |
160HF |
200HF |
250HF |
300HF |
|
Clamping Force |
Ton |
160 |
200 |
250 |
300 |
|
Operation table size |
mm |
500*520 |
550*560 |
650*600 |
700*800 |
|
Plunger stroke |
mm |
250 |
250 |
250 |
300 |
|
Distance of |
mm |
250~350 |
250~350 |
250~350 |
300~400 |
|
Thermo-plate |
|||||
|
Distance of Tie bar |
mm |
590*270 |
640*310 |
745*310 |
785*380 |
|
Die sinking type |
Track-Suspension-2RT-3RT-4RT |
||||
|
Max Operating |
Mpa |
20 |
20 |
20 |
20 |
|
Pressure |
|||||
|
Motor Power |
hp |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
10*2(7.5kw*2) |
|
Electric Heating |
Kw |
11.7*2 |
13.5*2 |
15.3*2 |
24*2 |
|
Power |
|||||
|
Total Power |
Kw |
38.4 |
42 |
45.6 |
63 |
|
Gross weight |
Ton |
6 |
7.8 |
11 |
15 |
|
Dimension(L*W*H) |
mm |
2800*2260*1900 |
2930*2350*2050 |
3190*2780*2230 |
3360*2970*2250 |
Product show:
Related product:
|
|
|
Application Products
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Exhibition show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
