High Efficiency 160Ton Vertical Injection Molding Machine/Phone Accessories Making Machine/In China Molding Machine For Metal
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001 |
| Model Number: | JC-HF |
Payment & Shipping Terms:
| Price: | $23,000.00/sets >=1 sets |
|---|---|
| Packaging Details: | Fixed with hard straps. |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 400 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 2000 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 2000 G | Screw Diameter (mm): | 35 Mm |
| Weight (KG): | 7500 | Type: | Plate Vulcanizing Machine |
| Open Stroke(mm): | 400 Mm | Power (kW): | 39 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Rate: | Adjustable | Opening Stroke: | According To Model |
| Injection Weight: | According To Model | Plunger Stroke(mm): | 200~350 |
| Plastic Type: | Other | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Russia, South Africa | Clamping Force (kN): | 2000 KN |
| Port: | Guangzhou | ||
Product Description
High Efficiency 160Ton Vertical Injection Molding Machine/Phone Accessories Making Machine/In China Molding Machine For Metal

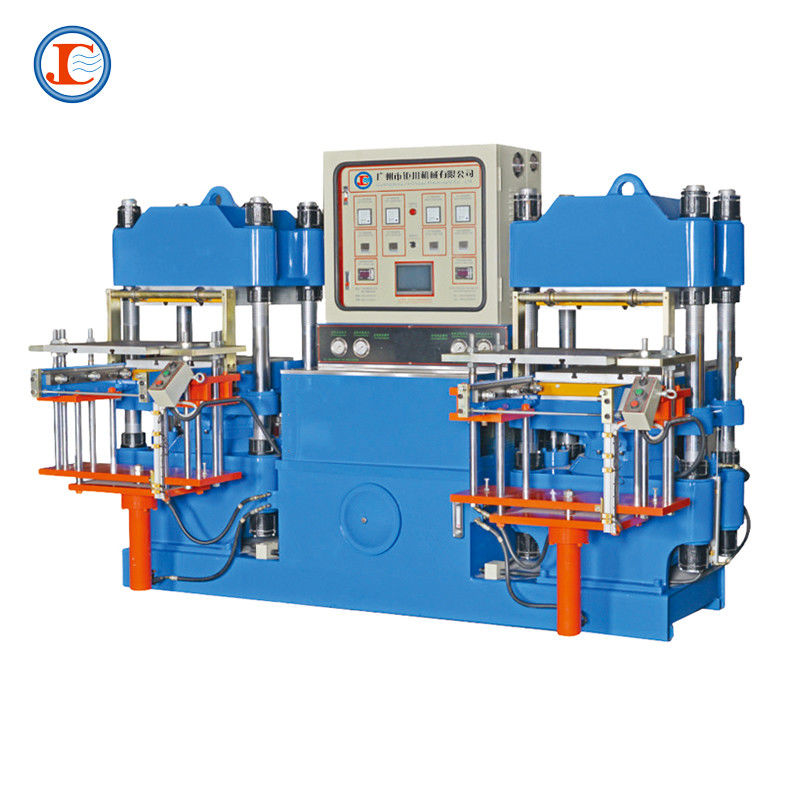

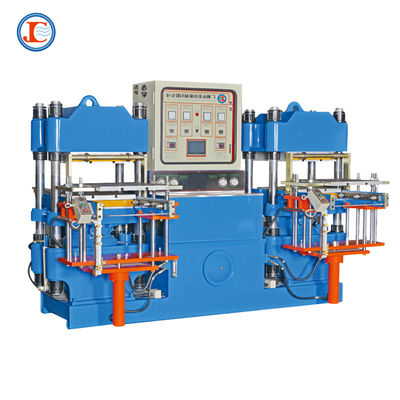

HF Series Vulcanizing Molding Machine For Two Sides Operation
Feature
1.Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
2.Efficient production of rubber part for railway, mining, shipbuilding industries.
3. Multi-pillar plate vulcanizing machine.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
| Model | Unit | 100HF | 160HF | 200HF | 250HF | 300HF | 400HF | 500HF | 1200HF |
| Clamping Force | Ton | 100 | 160 | 200 | 250 | 300 | 400 | 500 | 1200 |
Operation table size | mm | 400*460 | 500*520 | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 | 1600*2200 |
| Plunger stroke | mm | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 |
Distance of Thermo-plate | mm | 200~300 | 250~350 | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 | 350~550 |
| Distance of Tie bar | mm | 490*230 | 590*270 | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 | 6 posts |
| Die sinking type | Track-Suspension-2RT-3RT-4RT | ||||||||
Max Operating Pressure | Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2(5.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) | 25(18.5kw) |
Electric Heating Power | Kw | 7.2*2 | 11.7*2 | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power | Kw | 25.4 | 38.4 | 42 | 45.6 | 63 | 74.8 | 47 | 144.5 |
| Gross weight | Ton | 5 | 6 | 7.8 | 11 | 15 | 17 | 13.5 | 28.5 |
| Dimension(L*W*H) | mm | 2500*2080 *1950 | 2800*2260 *1900 | 2930*2350 *2050 | 3190*2780 *2230 | 3360*2970 *2250 | 3660*3050 *2350 | 1460*3600 *2380 | 2350*5400 *2950 |
| | |
