300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing

Product Details:

Place of Origin: China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC- HI-FL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 25000 - 40000/set
Packaging Details: container
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force(Ton): 100 - 1200 Platen Size(mm): 400*460 - 1600*2200
Plunger Stroke(mm): 200 - 350 Heating Plates Distance(mm): 200 - 550
Tie Bar Distance(mm): 490*230 - 1105*475 Mold Opening Type: 2RT-3RT-4RT-Track-Suspension
Max. Operating Pressure(MPa): 20 Weight: 11000
Warranty: 1 Year Power (kW): 51.6
Key Selling Points: Long Service Life Showroom Location: None
Applicable Industries: Manufacturing Plant Marketing Type: Ordinary Product
Port: Guangzhou

Product Description

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine

For Making Auto Parts Rubber Bushing



Product Description

 Product Description:

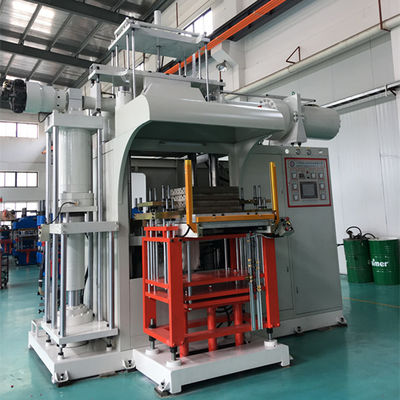

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 0

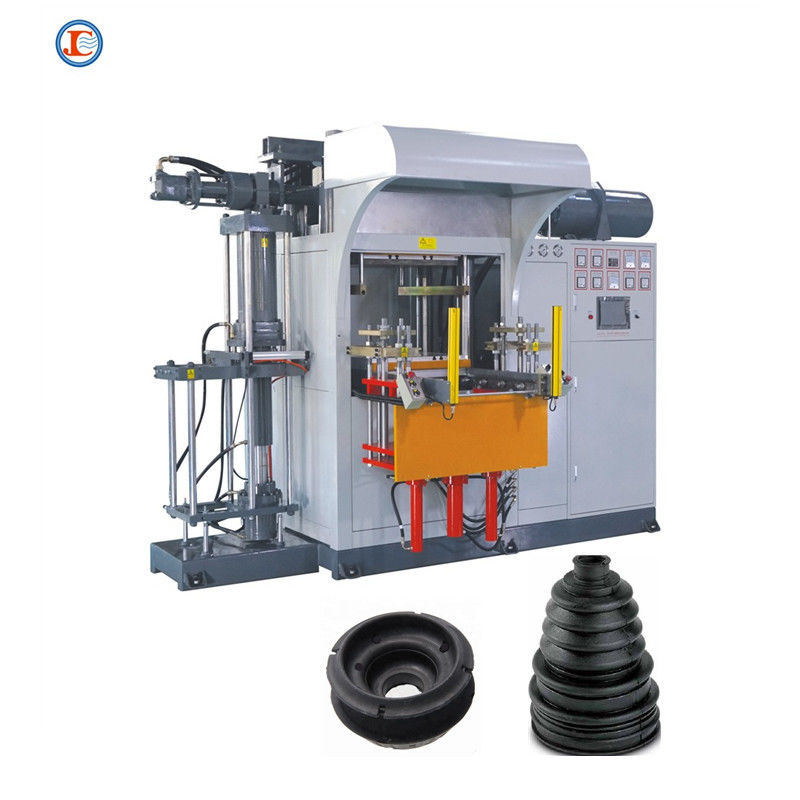

HI-FL Series Horizontal Silicone/Synthetic Rubber Injeciton Molding Machine



Machine Feature

1.Equip with infrared camera and automatic alarm function in machine safety controlling.

2.Unique Two-Stage material injecting mechanism for better de-gasing purpose.

3.Improvement desigh of injection molding machine seat that able to enhance molded part quality and cosmectic.

4.Anti-collision Molding System prevent mold damage occurring from misalignment(Patented)

5.Equipable with silicone rubber device.

6.Suitable for all kind of rubber with hardness less than 80 shore A,silcone rubber parts,fire retardant parts etc.





Technical parameter:
Model Unit 200HI-FL 250HI-FL 300HI-FL 400HI-FL 550HI-FL 600HI-FL
Clamping Force Ton 200 250 300 400 550 600
Injection Capacity cc 2000 2500 3000 4000 10000(12000) 6000
Injection pressure kgf/cm² 2000 2000 2000 2000 2000 2000
Operate table size mm 550*550 600*700 700*700 700*700 700*1500 850*850
Min. Mold Thickness mm 100 100 200 200 510 200
Plunger stroke mm 500 500 400 400 700 500
Distance of Thermo-plate mm 600 600 600 600 960 700
Distance of Tie bar mm 640*310 705*400 820*395 820*395 820*640 970*500
Die sinking type 2RT-3RT-4RT-Upper ejector-Bottom ejector

Max. Operating

Pressure

Mpa 20 20 20 20 20 20
Motor Power hp 15(11kw) 15(11kw) 15(11kw) 15(11kw)

30/7.5

(22kw/5.5kw)

20(15kw)
Heater Power Kw 15.3 18 24 24 45 29.75
Total Power Kw 30.3 33 39 39 80 48.75
Gross weight Ton 7.3 8 9.5 10.5 25 14.5
Dimension(L*W*H) mm

3400*2400

*2600

3400*2500

*2650

3500*2600

*2700

3600*2600

*2700

5200*2600

*3500

3800*2800

*2800


high voltage insulator making machine 500 ton with liquid silicone feeding systemhigh voltage insulator making machine 500 ton with liquid silicone feeding system


Applications:

Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator, auto parts etc. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.

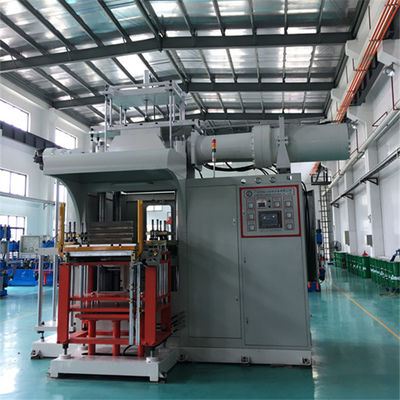

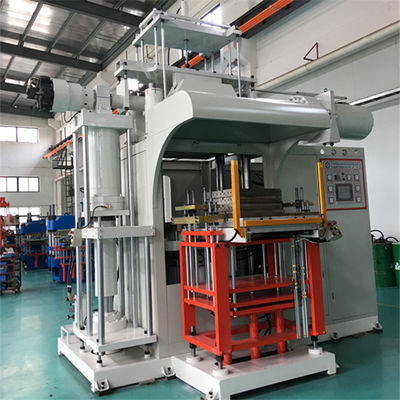

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 3300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 4





Company Information:

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.



* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.



* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

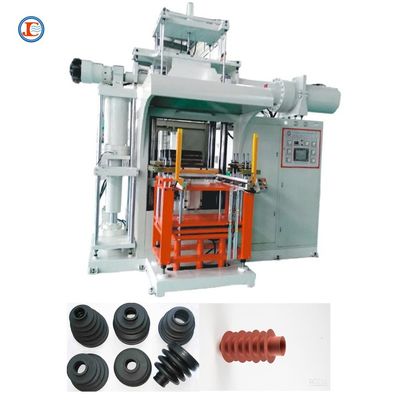

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 5





Our Main Products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine



300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 6

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 7





Trade show:

300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 8


300ton Epdm Rubber Production Line Silicone Rubber Injection Molding Machine For Making Auto Parts Rubber Bushing 9





Our service:

1. Free technology training: you can come for inspection and training for free.



2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.



3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)



4. Online remote control for software problems, whatspp or wechat for video checking.
